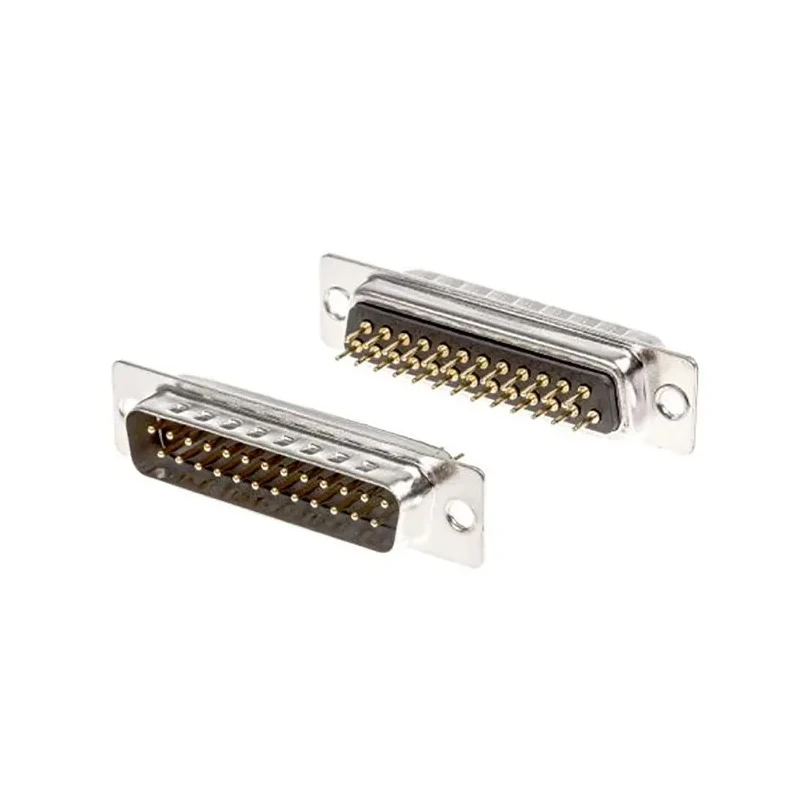

RS PRO 25 Way Straight 2.77 mm Pitch Through Hole D-Sub Connector Male A-DS 25 PP/Z

ASSMANN WSW A-DS 25 PP/Z is a 25 Way Straight Through Hole D-Sub Connector Male, designed for secure, high-quality electrical connections in industrial and electronic applications. Rated for a voltage of 250V and current of 3A, this connector features 25 brass contacts plated with gold over nickel to ensure excellent conductivity and corrosion resistance. Its polybutylene terephthalate housing provides robust insulation and mechanical stability, suitable for demanding environments.

The connector is designed with a 2.77 mm pitch, ensuring alignment compatibility with standard PCB layouts. It employs through-hole solder termination for reliable mounting and connection endurance. The product supports operating temperatures ranging from -40°C to 105°C, making it suitable for a wide range of industrial, manufacturing, and electronic assembly applications. The straight male design facilitates straightforward insertion and mating with compatible female connectors in electronic component assemblies.

This D-Sub connector is ideal for use in industrial power and control systems, computing hardware, telecommunications equipment, and any PCB-based electronic interface requiring standardized, durable connectors. Its compact DS-25 shell size fits design requirements where space and durability under electrical load are critical.

Features 25 gold over nickel-plated brass contacts for durability. Supports a maximum current of 3A and voltage rating of 250V. Constructed with polybutylene terephthalate housing for insulation and mechanical stability.

Designed for through-hole mounting with straight male D-sub connector orientation. Operates reliably within -40°C to 105°C temperature range. Pitch distance between contacts is precisely 2.77 mm. Termination type is solder, ensuring solid PCB connections.

Connector size DS-25 fits standard D-sub connector systems.

Package contains one ASSMANN WSW A-DS 25 PP/Z D-Sub Connector Male. Sourced from China, the connector is manufactured with stringent quality controls ensuring consistent performance for demanding electrical and electronics applications.
