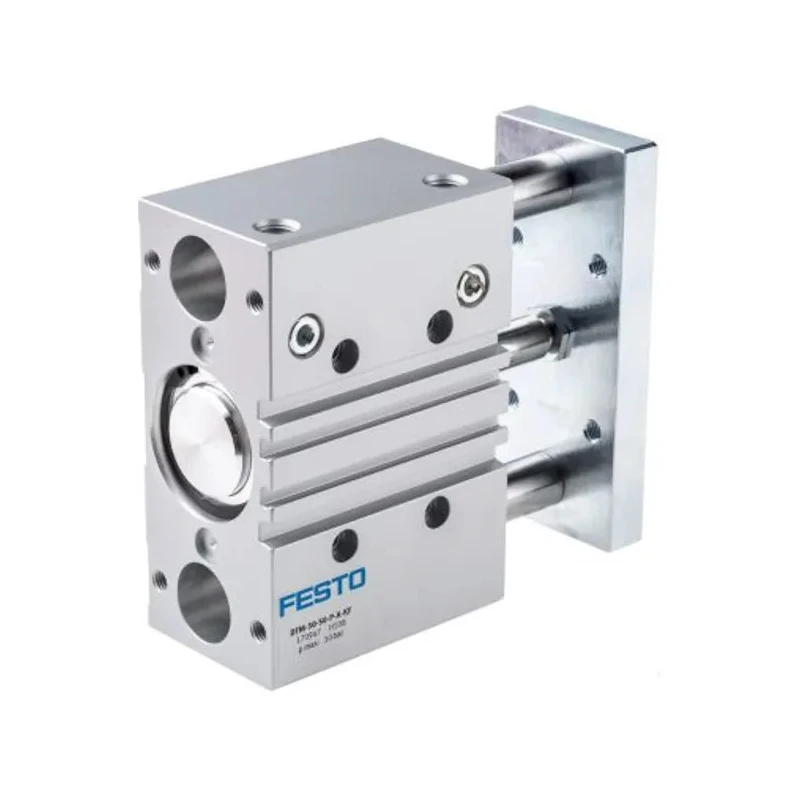

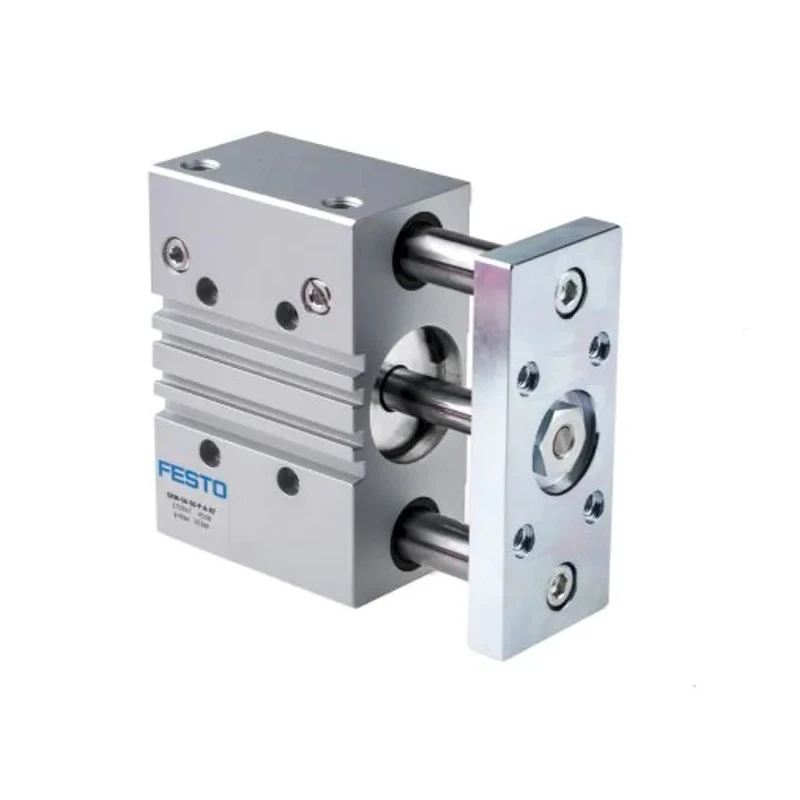

Festo Pneumatic Guided Cylinder DFM Series 63mm Bore 50mm Stroke Double Acting Through Hole Mount DFM-63-50-P-A-KF
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Festo |
| Body Material | Nitrile Rubber (NBR), Wrought Aluminium Alloy, Polyurethane, Tempered Steel, High Alloy Stainless Steel |
| Maximum Operating Pressure | 10 bar |
| Height | 78mm |
| Length | 143mm |
| Model | DFM-63-50-P-A-KF |
| Gross Weight | 5.2kg |
| Width | 162mm |
| Mount Type | Through Hole |
| Series | DFM |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -5°C |
| Stroke Length | 50mm |
| Bore Diameter | 63mm |
| Action Type | Double Acting |
| Standards/Approvals | ISO 1179-1, RoHS, ISO 228-1 |
| Cushioning Type | Elastomer |
| Guide Type | Plain Bearing, Ball Bearing |
Key Features
- Incorporates recirculating ball bearings for handling torque loads effectively.
- Compact and rigid aluminium construction for high resistance to lateral forces.
- Equipped with flexible cushioning plates for noise reduction and increased service life.
- Supplied with ports on both top and side for versatile mounting.
- Suitable for clamping, lifting, and stopping load applications up to 150 kg.
- Maintenance-free design with integrated guide rods enhancing durability.
- Operates safely within a temperature range of -5°C to 60°C.
- Meets standards ISO 1179-1, ISO 228-1 and RoHS compliance.
Product Description
Festo DFM-63-50-P-A-KF Pneumatic Guided Cylinder from the DFM series features a 63mm bore diameter and a 50mm stroke length. This double acting cylinder integrates the driving and guiding functions into a single aluminium housing, providing a compact yet robust solution for pneumatic applications.
The cylinder employs recirculating ball bearings on guide rods, ensuring smooth linear movement while effectively resisting torque and lateral forces. Its high-quality construction includes materials such as nitrile rubber (NBR), wrought aluminium alloy, polyurethane, tempered steel, and high alloy stainless steel, contributing to durability and longevity.
This model features flexible elastomer cushioning to lower operational noise and extend service intervals. Ports located conveniently on both the top and side enable flexible installation options in various industrial setups.
Ideal for demanding pneumatic tasks like clamping, stopping, material handling, and lifting, this cylinder can reliably support load applications of up to 150 kg. It operates efficiently in temperature conditions ranging from -5°C minimum to 60°C maximum, making it suitable for diverse environments.
The DFM guided cylinder complies with ISO 1179-1, ISO 228-1, and RoHS standards, affirming its quality and safety standards required in industrial automation, manufacturing, and material handling sectors.
Drive and guide unit combined for precision. Maintenance free with high resistance to torque. Flexible ports for adaptable mounting. Noise reduction via elastomer cushioning. Compact aluminium design with stainless steel components.
Operational temperature range from -5°C to 60°C. Compliant with ISO and RoHS standards.
This pneumatic guided cylinder is sourced from Germany and is available for use in industrial automation, laboratory setups, manufacturing plants, and material handling applications. Explore more Pneumatic Guided Cylinders and related actuators at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The bore diameter of this model is 63mm.
The stroke length of the DFM-63-50-P-A-KF is 50mm.
The maximum operating pressure for the DFM-63-50-P-A-KF is 10 bar.
It operates efficiently within a temperature range of -5°C to 60°C.
The cylinder is made from nitrile rubber (NBR), wrought aluminium alloy, polyurethane, tempered steel, and high alloy stainless steel.
It features elastomer cushioning for noise reduction and extended service life.
This model is designed for through hole mounting, allowing for flexible installation options.
The dimensions are 162mm in width, 143mm in length, and 78mm in height.
It is suitable for clamping, lifting, stopping, and handling load applications up to 150 kg.
The DFM-63-50-P-A-KF complies with ISO 1179-1, ISO 228-1, and RoHS standards.
This model features a double acting action type.
The gross weight of this pneumatic guided cylinder is 5.2kg.
