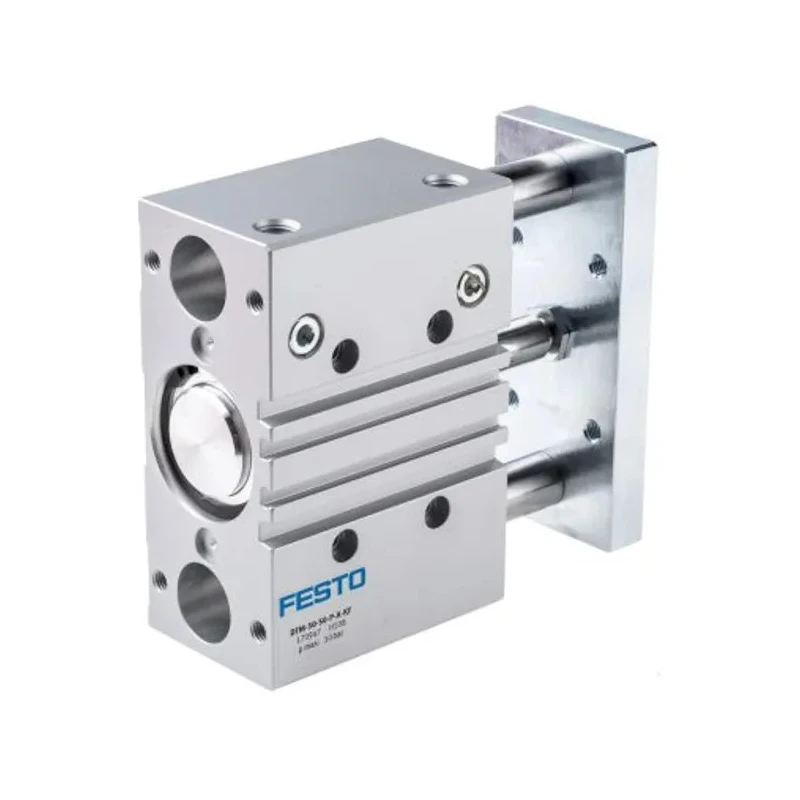

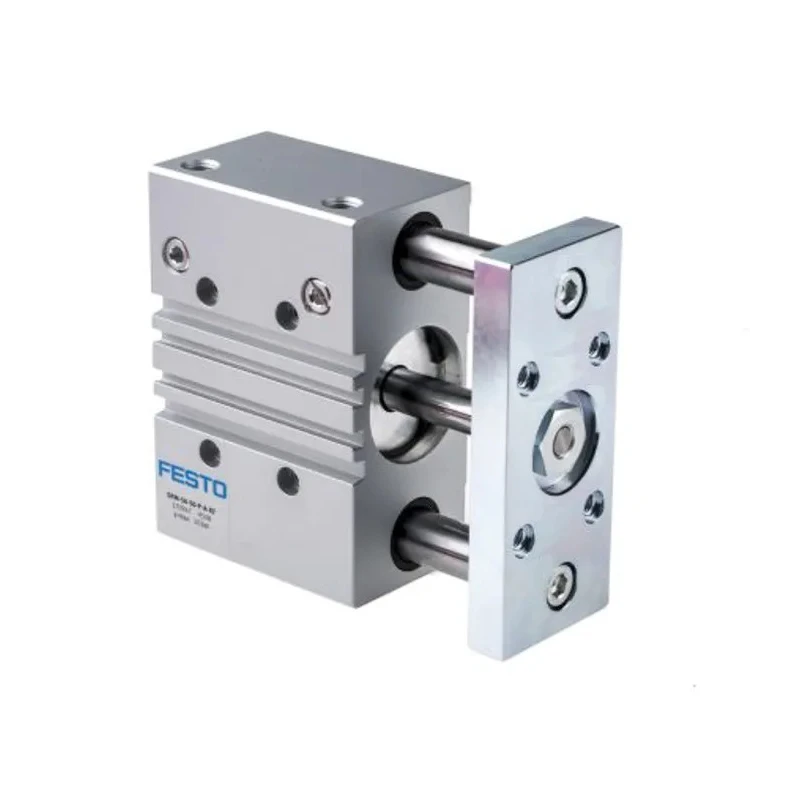

Festo Pneumatic Guided Cylinder DFM Series 50 mm Bore 200 mm Stroke Double Acting Through Hole Mount DFM-50-200-P-A-KF

Festo DFM-50-200-P-A-KF pneumatic guided cylinder is a precision-engineered actuator featuring a 50 mm bore diameter and 200 mm stroke length optimized for high load pneumatic applications. This double acting cylinder combines the drive and guide units within a compact aluminium housing ensuring robust performance against torque and lateral forces.

The recirculating ball bearings incorporated in the design allow the cylinder to handle torque loads efficiently, suitable for demanding industrial tasks such as clamping, stopping, lifting, and material handling.

Flexible mounting options are provided via through hole mountings along with supply ports located on both the top and side, enhancing installation versatility. Elastomer cushioning plates reduce operational noise and extend service life by absorbing impact forces.

The cylinder supports operating pressures up to 10 bar and piston speeds up to 0.8 mm/s, with an operational temperature range between -5°C and 60°C, allowing reliable usage across varied industrial environments.

Integrated slots in the actuator body allow the incorporation of proximity sensors for accurate piston position feedback, enhancing automation and control capabilities.

Weighing 8.1 kg with compact dimensions of height 64 mm, width 148 mm, and length 334 mm, it is maintenance-free and sourced from Germany, meeting ISO 1179-1, ISO 228-1, and RoHS standards.

Applications include precise clamping for component processing, dynamic lifting and transportation of loads, and resilient stopping of loads up to 150 kg, making it a reliable choice for manufacturing, construction, and pneumatic automation sectors.

Set contains: 1 Pc Festo DFM-50-200-P-A-KF Pneumatic Guided Cylinder. Explore similar Pneumatic Guided Cylinders in our catalogue for tailored industrial automation solutions at EnvMart. Incorporates drive and guide unit in a single sturdy aluminium housing.

Recirculating ball bearings enable reliable operation under torque loads. Equipped with through hole mount for flexible installation. Operates at maximum pressure of 10 bar with elastomer cushioning plates. Designed for operating temperature range from -5°C to 60°C.

Provides maximum piston speed of 0.8 mm/s. Compact and rigid design with high resistance to lateral and torque forces. Maintenance free construction suited for industrial and manufacturing uses. Integrated slots support proximity sensor fitting for linear motion measurement.

Ideal for clamping, lifting, stopping, and material handling in automation applications.
