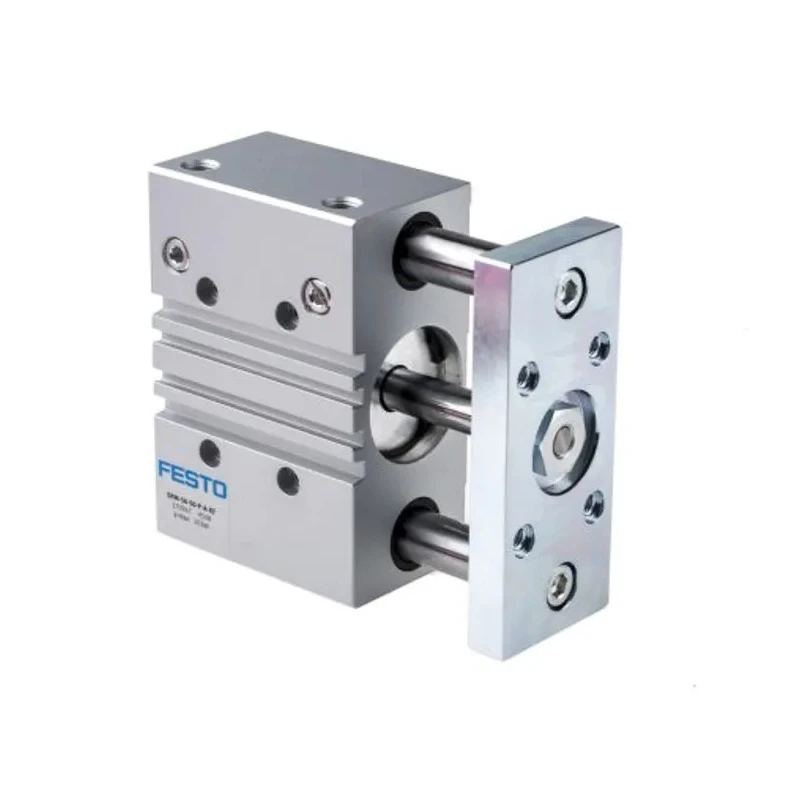

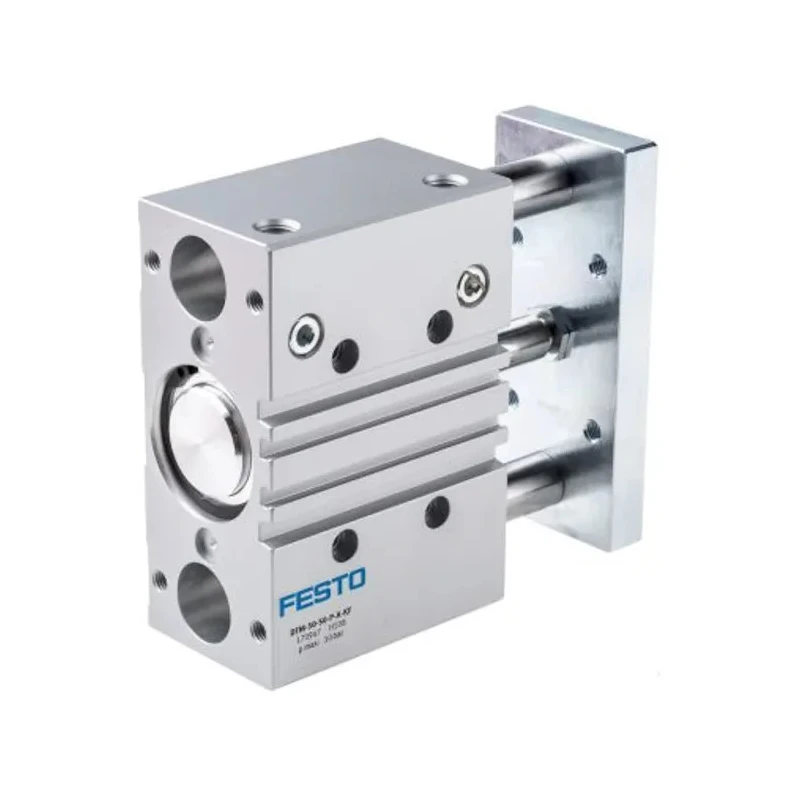

Festo Pneumatic Guided Cylinder Double Acting 50mm Bore, 25mm Stroke, DFM Series, Model DFM-50-25-P-A-KF

Festo DFM-50-25-P-A-KF pneumatic guided cylinder is a robust double acting actuator designed with a 50mm bore and 25mm stroke for precision industrial pneumatic applications. The unit combines both drive and guide functions in a compact, maintenance-free aluminium housing that is highly resistant to torque and lateral external forces.

The cylinder employs recirculating ball bearings for guiding the rods, providing excellent load handling capacity where torque loads are present, making it ideal for demanding pneumatic uses such as clamping, stopping, material handling, and lifting tasks.

Built with tempered steel, wrought aluminium alloy, nitrile rubber (NBR), high alloy stainless steel, and polyurethane materials, the cylinder is engineered to withstand operational temperatures from -5°C to 60°C and pressures up to 10 bar, with a maximum piston speed of 0.8 mm/s.

Cushioning is provided by flexible elastomer plates that reduce operational noise and extend service life. Its design includes integrated slots for proximity sensors and dual air supply ports located on both the top and side, facilitating highly flexible installation.

Dimensions are compact with a length of 118 mm, width of 148 mm, and height of 64 mm, weighing 3.4 kg. The product meets ISO 1179-1, RoHS, and ISO 228-1 standards, ensuring quality and compliance.

Typical industrial applications include precise clamping for machining or assembly, dynamic lifting and transport of loads, and secure stopping of loads up to 150 kg, delivering reliable and resilient pneumatic actuation.

The Festo DFM-50-25-P-A-KF pneumatic guided cylinder is a premium solution for pneumatic automation requiring durability, precision, and flexibility. Explore more Pneumatic Guided Cylinders and pneumatic automation products in the Industrial Tools & Equipment category at EnvMart for comprehensive solutions.

Features a durable tempered steel and wrought aluminium alloy body construction. Equipped with elastomer cushioning plates to reduce noise and enhance service life. Integrates ball bearing and plain bearing guide types for high load and torque resistance.

Suitable for operating pressures up to 10 bar with a maximum piston speed of 0.8 mm/s. Designed for minimum operating temperature of -5°C and maximum of 60°C. Includes flexible air supply ports on top and side for versatile mounting options.

Compact dimensions: length 118mm, width 148mm, height 64mm with a weight of 3.4 kg. Complies with ISO 1179-1, RoHS, and ISO 228-1 standards. Application suited for clamping, stopping, lifting, and material handling in pneumatic systems.
