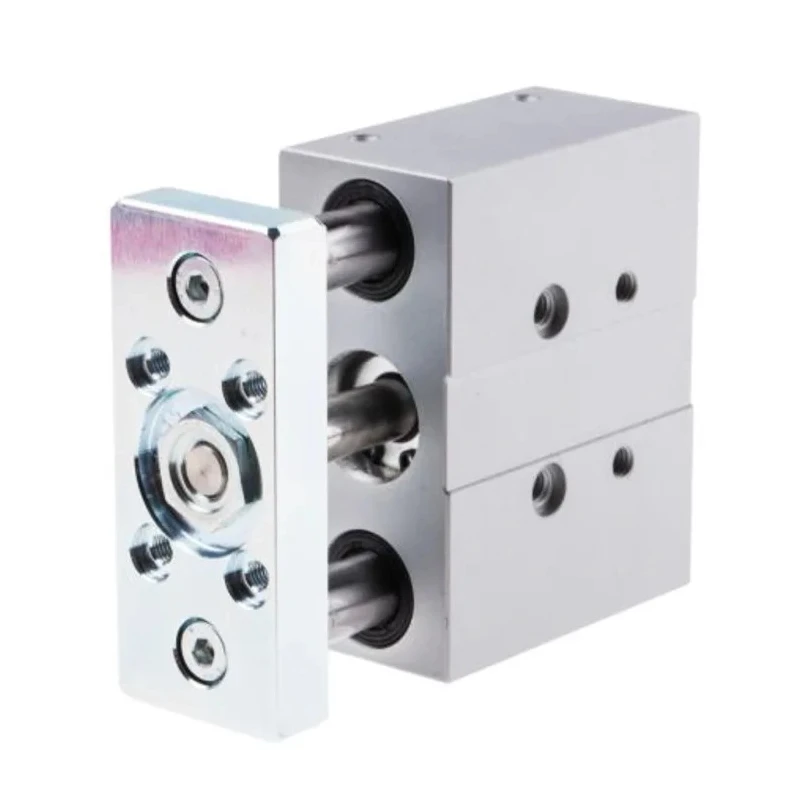

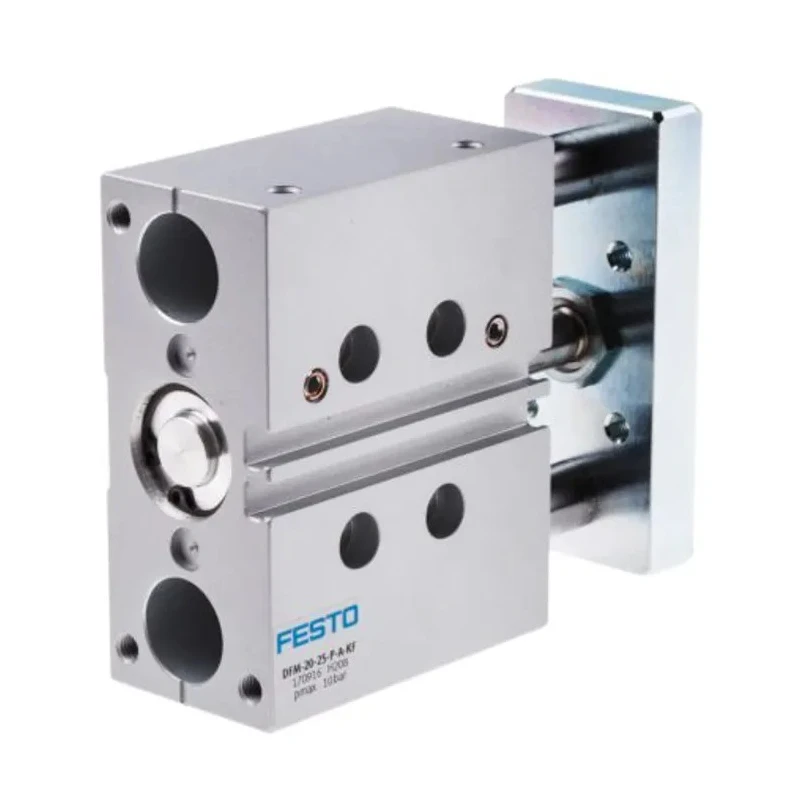

Festo Pneumatic Guided Cylinder DFM Series 20mm Bore 30mm Stroke Double Acting Through Hole Mount DFM-20-30-P-A-KF

Festo DFM-20-30-P-A-KF Pneumatic Guided Cylinder from the DFM series features a 20mm bore and 30mm stroke. This double acting cylinder combines drive and guide functions into a single compact housing with an integrated precision aluminum piston rod as part of the guide body. The guided actuator is designed for high load pneumatic applications such as clamping, stopping, material handling, and lifting.

Its recirculating ball bearing guide rods provide excellent performance in applications involving torque loads, ensuring reliable and sturdy operation. The compact and rigid construction offers high resistance to torque and lateral external forces, while being maintenance-free for long-term operation. Flexible cushioning plates effectively reduce noise during operation and extend service life.

The cylinder accommodates flexible mounting with air supply ports located on both the top and side, complemented by integrated slots for installing proximity sensors to monitor piston movement accurately. Operating parameters include a maximum pressure of 10 bar, piston speed up to 0.8 mm/s, and temperature tolerance from -5°C to 60°C, making it suitable for diverse industrial environments.

This pneumatic guided cylinder is ideal for demanding industrial uses including clamping components reliably for subsequent processing, dynamically lifting and transporting loads, and safely stopping loads up to 150 kg. The sturdy design supports resilient and stable stopping performance.

Manufactured in Germany, the cylinder meets RoHS directives and complies with ISO 1179-1 and ISO 228-1 standards. Its dimensions are 85mm in length, 81mm in width, and 36mm in height, with a gross weight of 865 grams. The DFM series pneumatic guided cylinder offers high precision and durability in industrial, manufacturing, automation, and material handling applications, providing exceptional performance and reliability.

Equipped with recirculating ball bearings for torque load applications. Compact rigid aluminum construction offers high torque resistance. Maintenance-free operation with elastomer cushioning to reduce noise. Flexible air port mounting on top and side for versatile installation.

Integrated sensor slots for piston motion measurement. Suitable for industrial pneumatic clamping, lifting, and stopping tasks. ISO and RoHS compliant, made in Germany for quality assurance. Explore the comprehensive range of Pneumatic Guided Cylinders at EnvMart for industrial automation and fluid power solutions.
