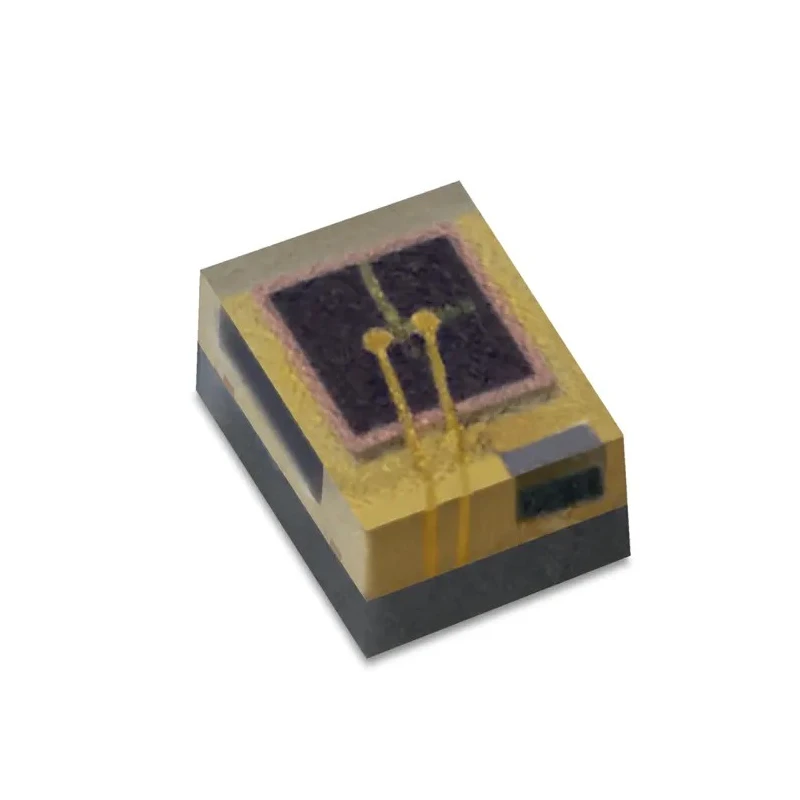

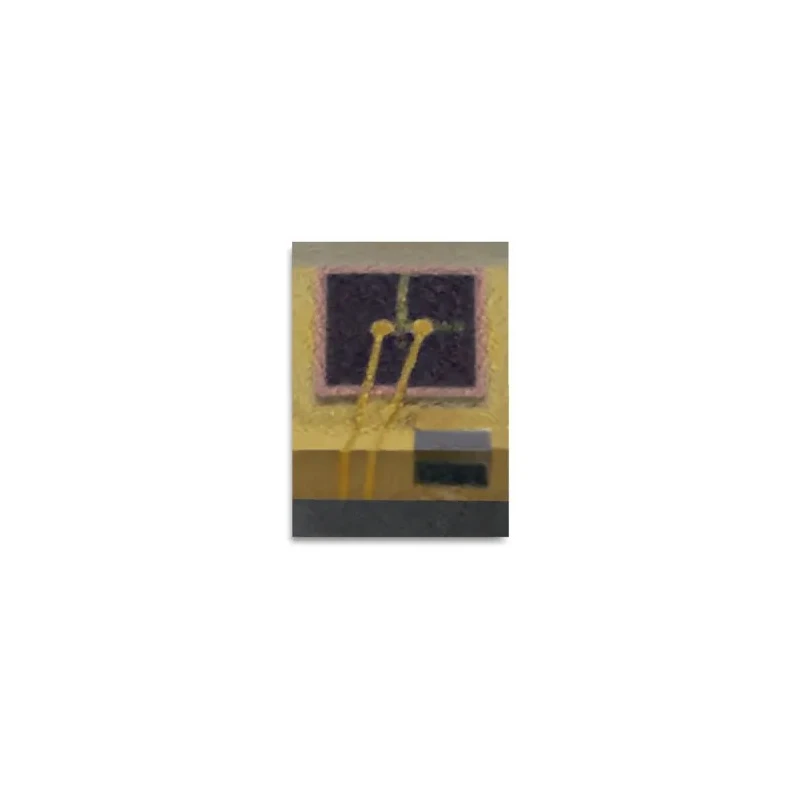

Lumileds LUXEON IR Compact Line 940 nm IR LED 1.9 x 1.37 mm Surface Package L1IZ-0850000000000

Lumileds L1IZ-0850000000000 LUXEON IR Compact Line 940 nm IR LED features a small footprint surface mount package measuring 1.9 x 1.37 mm, providing high power density and efficiency. This infrared LED utilizes a rectangular lens shape and is surface mounted using a two-pin configuration. It operates at a maximum supply voltage of 3.7 volts and offers a radiant flux of 1150 mW, with a radiant intensity of 250 mW per steradian.

These IR LEDs are designed for applications requiring tight beam control and are ideal for use with secondary optics. The wide 150-degree half angle of intensity ensures broad infrared coverage, making it suitable for various industrial and commercial uses.

Typical uses include CCTV system illumination, machine vision enhancements, 3D scanning technologies, biometric data collection, user interface control, and virtual reality devices requiring reliable infrared light sources.

The LUXEON IR Compact Line complies with international environmental directives, including REACH (EC) 1907/2006 and RoHS Directive 2011/65/EU, assuring safety and environmental responsibility. The product is made in Malaysia and supplied in tape and reel packaging, facilitating automated assembly processes.

This model does not conform to automotive standards but is a robust solution for numerous laboratory, industrial, and commercial optoelectronic applications demanding compact high-efficiency infrared illumination.

Compact surface mount package with rectangular lens shape. Peak wavelength at 940 nm suitable for IR applications. High radiant flux of 1150 mW and radiant intensity of 250 mW/sr. Wide 150-degree angle of half intensity for extensive coverage.

Packaged on tape and reel for easy manufacturing integration. REACH and RoHS compliant for environmental safety. Manufactured in Malaysia with high quality standards. Supports advanced applications such as CCTV, machine vision, and biometrics.
