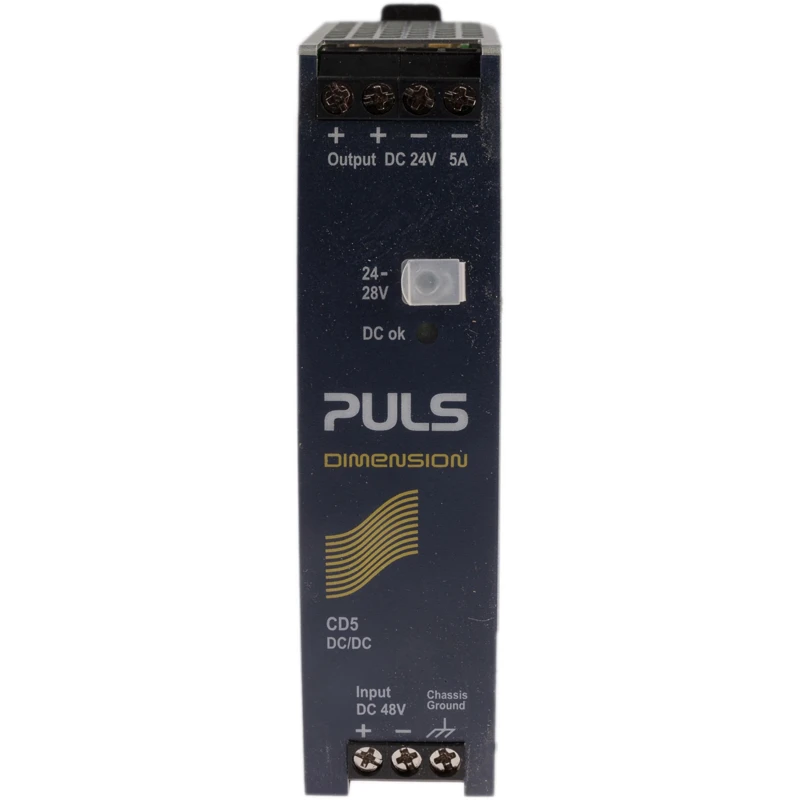

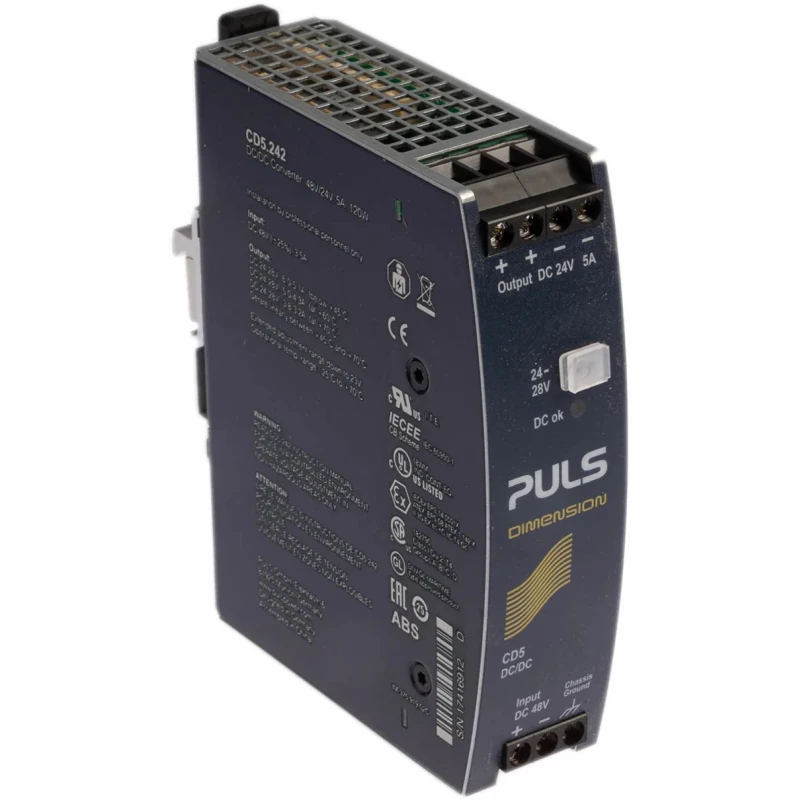

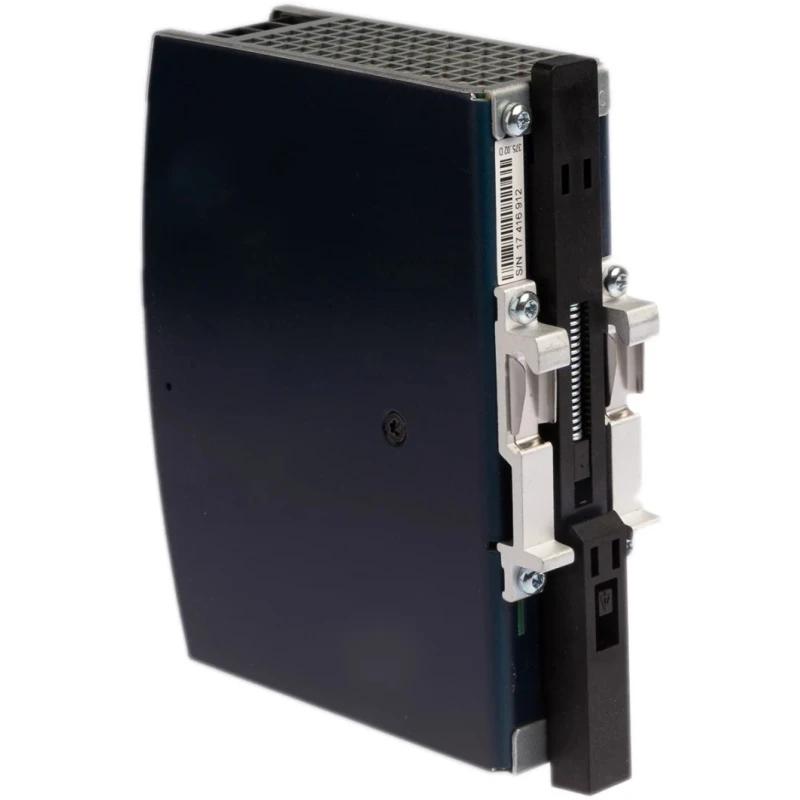

PULS DIMENSION-CD DC/DC Converter, 24V DC Output, 5 A, 48V-60V DC Input, DIN Rail Mount, 120 W, 70 °C Operating CD5.242

PULS CD5.242 DC/DC Converter is a high-performance power supply designed for industrial environments requiring a stable 24V DC output with a current rating of 5 A and input voltage ranging from 48V to 60V DC. It features a robust DIN Rail mount housing that allows easy integration into existing electrical enclosures or control panels.

This converter belongs to the DIMENSION-CD series, known for compact designs delivering 92 W to 120 W output power. It offers a power reserve of 20% continuously up to 45°C, ensuring reliable operation under varying load and thermal conditions. The device includes electrical isolation of 500 V DC between input and output, enhancing operator and equipment safety while minimizing electrical noise interference.

Efficiency rates reach up to 90.3%, with extremely low input inrush current and minimal ripple and noise (50 mV peak-to-peak), maintaining stable and consistent power delivery. Additional protective features such as input reverse polarity protection and a soft start function extend the converter's durability and system reliability.

Operating temperature ranges from -70 °C to 70 °C, making this converter suitable for harsh industrial, automotive, building automation, and material handling applications. The unit's compact form factor (124 mm length, 32 mm width, and 102 mm depth) and lightweight design (425 g) simplify installation in space-constrained environments.

Compact DIN Rail mount design ensures easy integration in control panels. Provides 120 W maximum output power with up to 90.3% efficiency. Features low ripple and noise of 50 mV peak-to-peak for stable output. Includes protection against reversed input voltages and soft start functionality.

Operates reliably within a temperature range of -70 °C to 70 °C. Electrical isolation voltage of 500 V DC enhances safety during operation. Compact dimensions of 124 mm length, 32 mm width, and 102 mm depth. Weighs 425 grams, facilitating lightweight installation.

Ideal for automotive, machine building, material handling, and building automation industries. Complies with RoHS standards, ensuring environmental safety.

This PULS DC/DC converter provides dependable power conversion performance essential for industrial automation and electronic component applications. Explore more products from the DC/DC Converter category on EnvMart to find compatible power solutions.
