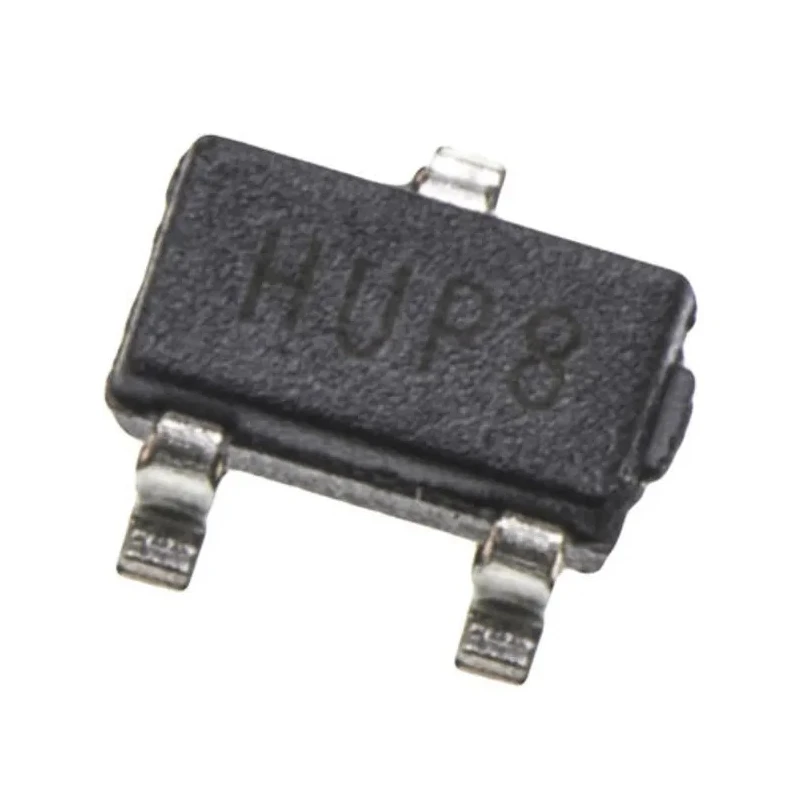

Microchip MCP1703T-3302E/CB Low Dropout Voltage Regulator 16V SOT-23A 3-Pin Surface Mount MCP1703T-3302E/CB

Microchip MCP1703T-3302E/CB is a high-performance Low Dropout (LDO) voltage regulator designed to provide stable voltage regulation in sensitive electronic circuits. Packaged in a compact SOT-23A 3-pin surface mount form factor, this device is optimized for power management in embedded systems and electronics requiring efficient and reliable voltage regulation.

Supporting a maximum input voltage of 16V and positive polarity, it is suitable for a broad range of industrial, laboratory, and consumer electronic applications. The regulator exhibits an ultra-low quiescent current of 2μA, ensuring minimal power drain which is critical in battery-powered devices and portable instruments.

With dimensions of 3.1mm length, 1.8mm width, and 1.3mm height, this voltage regulator offers a compact footprint allowing PCB designers to save valuable board space. Its robust design supports operation up to 125°C, making it reliable for demanding environments such as manufacturing equipment, HVAC control systems, and industrial instrumentation.

The MCP1703 series, including the MCP1703T-3302E/CB model, enhances efficiency in power management IC applications. This device simplifies the power supply design by offering reliable voltage output with low noise and ripple, making it ideal for powering sensitive analog and digital components.

Surface mount SOT-23A packaging facilitates automated assembly lines and improves production efficiency for electronic device manufacturers. The product is compliant with standard electronic component norms but does not have specific industry certifications.

This voltage regulator features a low quiescent current of 2μA, optimizing power consumption. The device measures 3.1mm in length, 1.8mm in width, and 1.3mm in height, offering a small footprint. It provides reliable operation up to a maximum temperature of 125°C, suitable for demanding environments.

The regulator supports a minimum input voltage of 2.7V and positive polarity input configurations. Device is part of the MCP1703 series, ideal for embedded electronics and power management IC applications. SOT-23A package enables easy surface mounting facilitating industrial PCB assembly and manufacturing.

This Microchip MCP1703T-3302E/CB voltage regulator is designed for use in industrial electronics, laboratory instrumentation, manufacturing controls, and various power regulation systems where compact size and efficient voltage regulation are critical. Explore additional Microchip power management ICs and voltage regulators in EnvMart’s comprehensive electronics components category for optimized design solutions.
