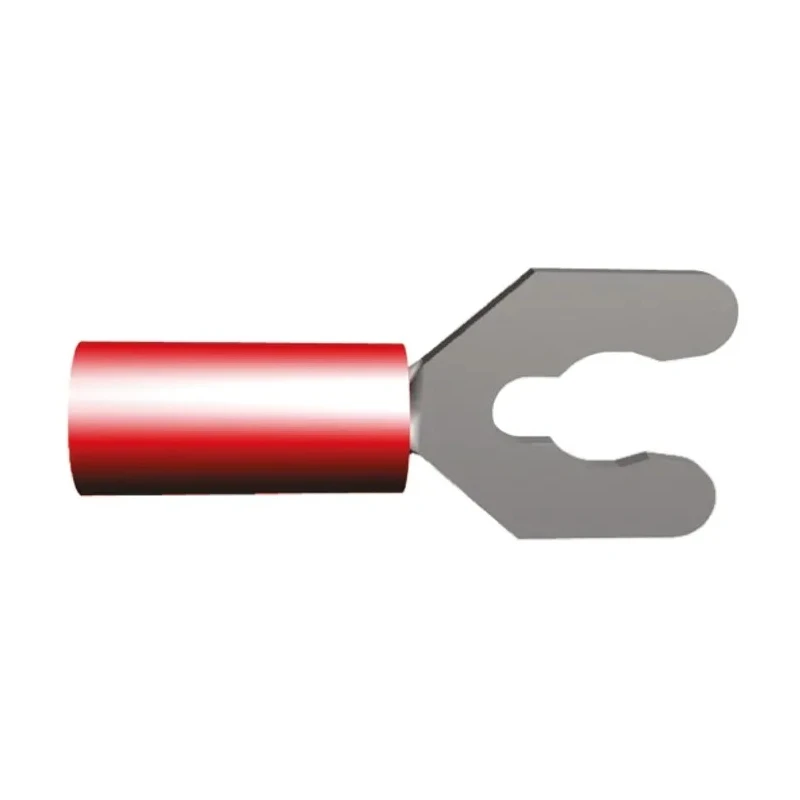

TE Connectivity PIDG Insulated Fork Terminal 22 AWG to 16 AWG M4 Stud Size Nylon Red 52930
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Colour | Red |
| THICKNESS | 0.79mm |
| Model | 52930 |
| Width | 9.53mm |
| Insulation | Insulated |
| Overall Length | 21.84mm |
| Contact Material | Phosphor Bronze |
| Series | PIDG |
| Insulation Material | Nylon |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 0.26mm² |
| Maximum Wire Size mm² | 1.65mm² |
| Minimum Wire Size AWG | 22AWG |
| Maximum Wire Size AWG | 16AWG |
| Stud Size | M4 |
Key Features
- High conductivity copper body ensuring optimal electrical performance.
- Copper sleeve improves wire insulation support after crimping.
- Serrated wire barrel for maximum contact and tensile strength.
- Colour coded nylon sleeves for easy wire size identification.
- Funnelled wire entry allows for quick and reliable wire insertion.
- Compatible for use in harsh circuit environments.
- Constructed with tin-plated phosphor bronze contacts for durability.
- Overall length of 21.84 mm and thickness of 0.79 mm.
Product Description
TE Connectivity 52930 PIDG Insulated Fork Terminal is engineered for reliable electrical connections with wire sizes ranging from 22 AWG to 16 AWG and an M4 stud size. It features a nylon insulated, red colour-coded sleeve for clear wire size identification and improved insulation performance.
This fork terminal has a precision-formed high conductivity copper body combined with a copper sleeve that supports the wire insulation after crimping to prevent fraying or conductor breakage. The serrations inside the barrel boost contact and tensile strength, ensuring a durable and uniform crimp.
The funnelled wire entry design facilitates swift and secure insertion of wire strands, making it ideal for high-speed production environments. The tin-plated phosphor bronze contact material enhances corrosion resistance and conductivity.
These PIDG Fork Terminals meet demanding industry requirements and are suitable for diverse applications such as instrumentation, control panels, lighting, power supplies, motor connections, aerospace wiring, and transportation systems.
High conductivity copper body ensures efficient electrical flow. Copper sleeve supports insulation integrity after crimping. Serrated barrel for enhanced connection strength. Colour coded nylon sleeve simplifies wire gauge identification.
Funnelled wire entry ensures fast and reliable assembly. Tin plating on contact prevents corrosion and extends lifespan. Designed for demanding industrial and aerospace environments. Red nylon insulation indicates wire size compatibility.
This product is categorized under wire terminals and splices suitable for electronic and electrical industrial applications. Explore more products like this in the Wire Terminals & Splices category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports wire sizes ranging from 22 AWG to 16 AWG, ensuring versatility for various applications.
The stud size for this terminal is M4, making it suitable for specific mounting applications.
It features a high conductivity copper body and a tin-plated phosphor bronze contact, enhancing both electrical performance and corrosion resistance.
The overall length is 21.84 mm and the thickness is 0.79 mm, providing a compact design for easy installation.
It includes a funnelled wire entry design that allows for quick and reliable insertion of wire strands, which is beneficial in high-speed production environments.
This model features nylon insulation, which is color-coded red for easy wire size identification and improved insulation performance.
It is suitable for diverse applications including instrumentation, control panels, lighting, power supplies, motor connections, aerospace wiring, and transportation systems.
The serrated wire barrel enhances contact and tensile strength, ensuring a durable and uniform crimp for reliable electrical connections.
The country of origin for this terminal is India, indicating its manufacturing location.
The copper sleeve improves wire insulation support after crimping, preventing fraying or conductor breakage.
The contact material is tin-plated phosphor bronze, which enhances corrosion resistance and conductivity.
This terminal is part of the PIDG series, which is designed for demanding industrial and aerospace environments.
