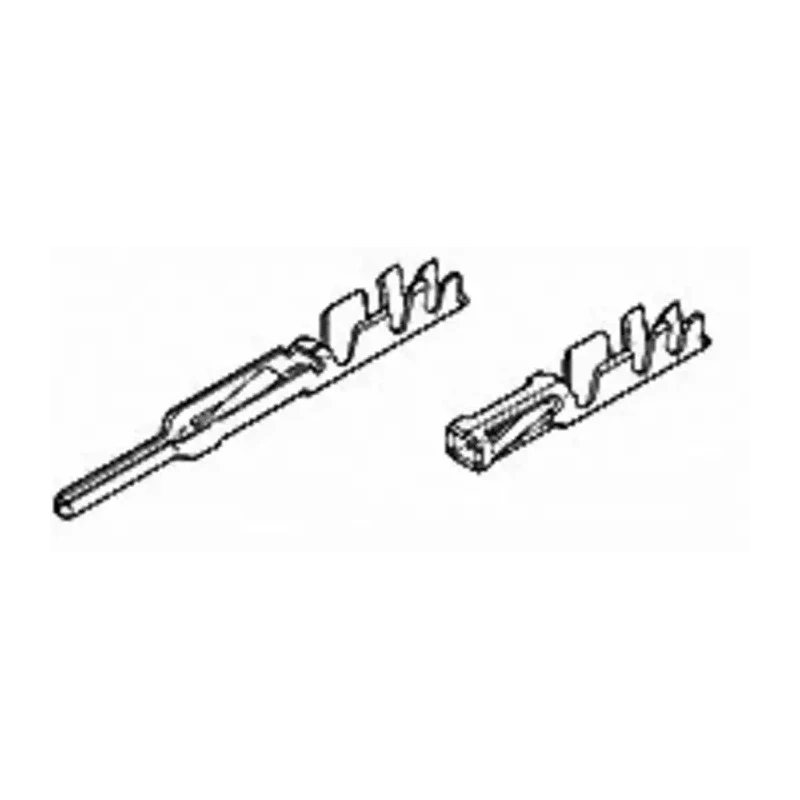

TE Connectivity FFC Series Male Crimp Terminal, 26 AWG Min IDC, 22 AWG Max, Tin Plated, Phosphor Bronze, 7.5mm 1-86561-0
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Current | 2A |
| Length | 7.5mm |
| Gender | Male |
| Contact Material | Phosphor Bronze |
| Series | FFC |
| Termination Type | IDC |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| For Use With | FFC Connector Housing |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 0.1mm² |
| Maximum Wire Size mm² | 0.4mm² |
| Minimum Wire Size AWG | 26AWG |
| Maximum Wire Size AWG | 22AWG |
| Maximum Contact Resistance | 45mΩ |
| 509-2183 | 0.4μm Gold plated on contact area, Gold Flash on remainder, loose |
| 668-9416 | 0.4μm Gold plated on contact area, Gold Flash on remainder, strip |
| 668-9410 | Tin plated all over, strip |
| 668-9429 | Tin plated all over, loose |
Key Features
- Constructed with phosphor bronze contact material for durability.
- Tin plating provides reliable corrosion resistance and conductivity.
- 7.5mm length suitable for compact electronic assemblies.
- Operating temperature range from -55°C to 105°C ensures performance in extreme environments.
- Designed for insulation displacement contact (IDC) termination type.
- Maximum contact resistance rated at 45 milliohms for efficient electrical connection.
- Compatible with 2.54mm pitch Tyco AMPMODU MOD II connectors for wire-to-board applications.
- Gold plated variants available in the series for enhanced performance options.
Product Description
TE Connectivity 1-86561-0 FFC Series Male Crimp Terminal is a high-quality electrical connector component engineered for reliable wire-to-board connections in electronic systems. It accommodates wire sizes from 26 AWG (0.1mm²) minimum to 22 AWG (0.4mm²) maximum, designed specifically for use with flexible flat cable (FFC) connector housings.
Constructed with phosphor bronze contact material and tin plating, this male crimp terminal delivers excellent conductivity and corrosion resistance ensuring longevity in harsh environments. Its 7.5mm length provides a compact form factor that fits neatly into electronic assemblies where space is limited.
The terminal is rated for a current capacity of 2 amps and can operate effectively within a temperature range of -55°C to 105°C. The insulation displacement contact (IDC) termination type enables efficient and secure wire termination without the need for soldering, reducing assembly time and improving manufacturing productivity.
This product forms part of the Tyco AMPMODU MOD II 2.54mm pitch range, offering full intermateability with corresponding female contacts on PCB or cable mount receptacles. The series includes variants with gold plating on contact areas for enhanced signal integrity and durability.
Industrial applications include electronics manufacturing, communications equipment assembly, instrumentation, and any scenario requiring reliable, low resistance wire-to-board connections. These terminals are packaged loose for insertion ready use, improving production efficiency.
Constructed with phosphor bronze contact material for strong mechanical and electrical performance. Fully tin plated for corrosion resistance and optimum conductivity. Rated 2 amp current capacity suitable for low power electronic applications.
Suitable for wire sizes ranging from 26 AWG to 22 AWG. Compact 7.5mm length fitting confined assembly spaces. Operating temperature from -55°C up to 105°C for harsh environment applications. Compatible with 2.54mm pitch Tyco AMPMODU MOD II series connectors.
Insulation displacement contact (IDC) type for quick, solderless wire termination.
EnvMart offers a comprehensive range of electrical connectivity solutions. Browse our catalog for TE Connectivity components to meet diverse industrial, electronics manufacturing, and assembly line requirements.
Explore more products in our Crimp Contacts category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It has a current capacity rated at 2 amps, suitable for low power electronic applications.
This terminal accommodates wire sizes ranging from 26 AWG (0.1mm²) minimum to 22 AWG (0.4mm²) maximum.
The length of this male crimp terminal is 7.5mm, making it suitable for compact electronic assemblies.
It operates effectively within a temperature range of -55°C to 105°C, suitable for harsh environments.
This model uses insulation displacement contact (IDC) termination type, allowing for quick, solderless wire termination.
The maximum contact resistance is rated at 45 milliohms, ensuring efficient electrical connection.
It is designed for use with flexible flat cable (FFC) connector housings, specifically within the Tyco AMPMODU MOD II series.
The contact material is phosphor bronze, and it is fully tin plated for corrosion resistance and conductivity.
Yes, the series includes variants with gold plating on the contact areas for enhanced signal integrity and durability.
It is suitable for electronics manufacturing, communications equipment assembly, and instrumentation requiring reliable wire-to-board connections.
The country of origin for this male crimp terminal is India.
This terminal is packaged loose for insertion ready use, which improves production efficiency during assembly.
