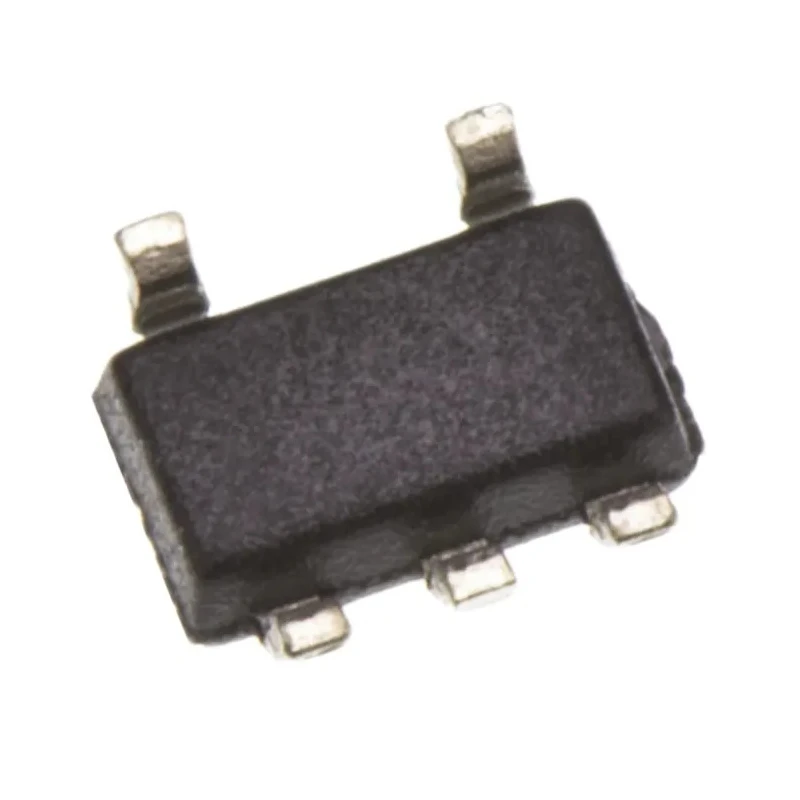

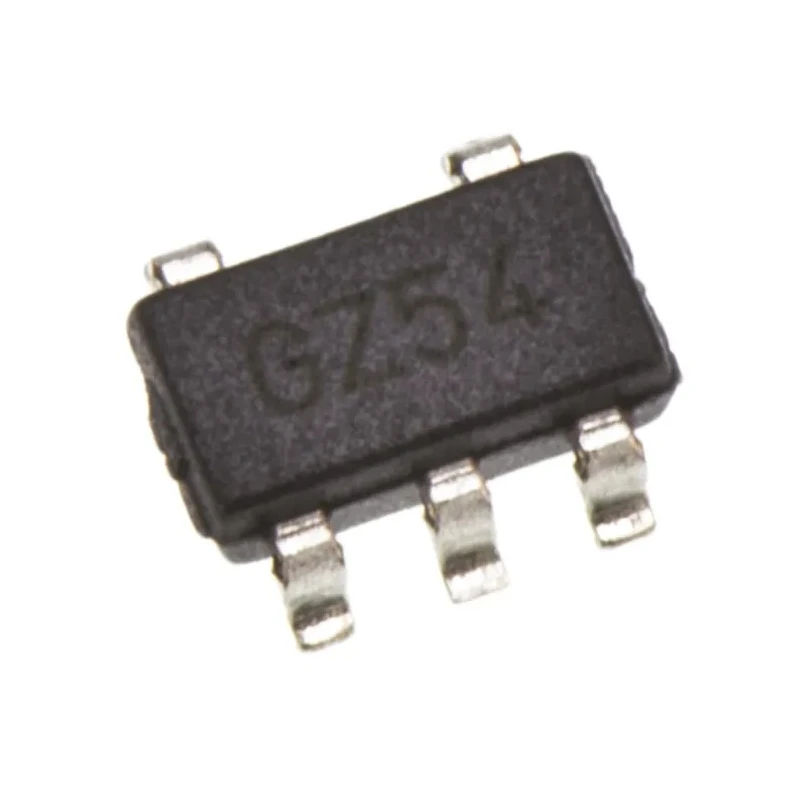

Microchip MOSFET Gate Driver 500 mA 5-Pin SOT-23 18V MCP1402T-E/OT
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 1.3mm |
| Length | 3.1mm |
| Model | MCP1402T-E/OT |
| Width | 1.8mm |
| Mount Type | Surface |
| Series | MCP1402 |
| Output Current | 500mA |
| Maximum Operating Temperature | 125°C |
| Package Type | SOT-23 |
| Minimum Operating Temperature | -40°C |
| Number of outputs | 5 |
| Rise Time | 19ns |
| Pin Count | 5 |
| Minimum Supply Voltage | 18V |
| Number of Drivers | 1 |
| Fall Time | 15ns |
| Driver Type | MOSFET |
Key Features
- Offers a single MOSFET driver output with 500 mA current capacity.
- Compact SOT-23 surface mount package suitable for space-constrained designs.
- Operating voltage range up to 18 volts for versatile power applications.
- Fast switching with 15 ns fall time and 19 ns rise time ensuring efficient performance.
- Wide operating temperature range from -40°C to 125°C for industrial environments.
- Pin count of 5 facilitating easy integration on PCB designs.
- Surface mount type optimizes PCB assembly and reliability.
- Designed for controlling MOSFETs and IGBTs in power management circuits.
Product Description
Microchip MCP1402T-E/OT MOSFET Gate Driver is a high-speed, high-current MOSFET driver designed to provide 500 mA output current for efficient gate drive in power control applications. Packaged in a compact 5-pin SOT-23 surface mount package, it is ideal for space-sensitive electronic circuits where reliable and fast MOSFET switching is essential.
This driver operates at a supply voltage of 18V, providing a robust voltage range suited for a variety of industrial and commercial power management applications. Its fast switching times, featuring a fall time of 15 ns and a rise time of 19 ns, allow for effective control of MOSFET switches, reducing switching losses and improving overall system efficiency.
Engineered to operate over a wide temperature range from -40°C to 125°C, this MOSFET gate driver is reliable in harsh environments, making it suitable for industrial, automotive (non-automotive standard compliant), HVAC, and manufacturing electronics.
The 5-pin configuration simplifies PCB layout and integration, while the surface mount package contributes to compact and lightweight system design. The MCP1402 series has been developed by Microchip, a leader in semiconductor components, ensuring compliance with high quality and performance standards.
Single MOSFET gate driver output with 500 mA current capacity. 5-pin SOT-23 package facilitates compact mounting and integration. 18V maximum supply voltage suitable for robust power circuits. Fast switching timings with 15 ns fall time and 19 ns rise time.
Wide operating temperature range of -40°C to 125°C for reliability. Surface mount type enhances manufacturing efficiency and board layout. Suitable for power management IC applications controlling MOSFETs and IGBTs. No automotive certification; intended for general industrial use.
Compact dimensions: 3.1 mm length, 1.8 mm width, 1.3 mm height. Part of Microchip's MCP1402 series known for quality and performance.
This MOSFET Gate Driver is ideal for improving production efficiency in electronic assemblies, offering precise, reliable control over power MOSFET switches. It supports applications in electronics manufacturing, power supplies, motor controls, and industrial automation.
Explore more Microchip components and power management ICs on EnvMart for comprehensive solutions in semiconductor-based power control.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It offers a single MOSFET driver output with a current capacity of 500 mA.
The maximum supply voltage for this model is 18V, making it suitable for robust power applications.
The rise time is 19 ns and the fall time is 15 ns, allowing for efficient switching performance.
It operates over a wide temperature range from -40°C to 125°C, suitable for industrial environments.
This MOSFET gate driver is packaged in a compact 5-pin SOT-23 surface mount package.
The 5-pin configuration simplifies PCB layout and integration, making it easier to incorporate into designs.
It is a MOSFET driver designed for controlling MOSFETs and IGBTs in power management circuits.
The dimensions are 1.3 mm in height, 3.1 mm in length, and 1.8 mm in width.
It is suitable for applications in electronics manufacturing, power supplies, motor controls, and industrial automation.
The surface mount type enhances manufacturing efficiency and contributes to a compact design.
This model does not have automotive certification and is intended for general industrial use.
It is part of the MCP1402 series, known for quality and performance in power management applications.
