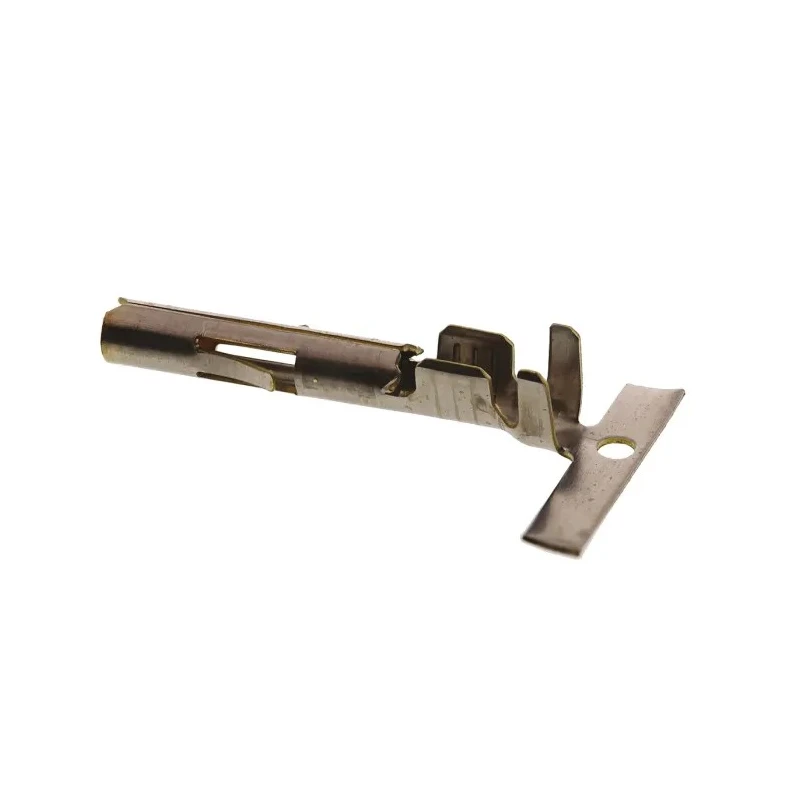

TE Connectivity Universal MATE-N-LOK Series Female Crimp Terminal 20 AWG Min, 14 AWG Max, Gold Plated Brass Contacts 350536-7
Specifications
| Country of Origin | United States |
|---|---|
| Brand | TE Connectivity |
| Current | 19A |
| Temperature range | -55 to +105 °C |
| Length | 22.23mm |
| Model | 350536-7 |
| Gender | Female |
| Contact Material | Brass |
| Series | Universal MATE-N-LOK |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Insulation resistance | 1000 MΩ |
| Minimum Operating Temperature | -55°C |
| For Use With | Universal MATE-N-LOK Connector Housing |
| Contact Resistance | 3.5 mΩ |
| Contact Plating | Gold |
| Minimum Wire Size mm² | 0.5mm² |
| Maximum Wire Size mm² | 2mm² |
| Minimum Wire Size AWG | 20AWG |
| Maximum Wire Size AWG | 14AWG |
| Maximum Contact Resistance | 4mΩ |
| Mating Cycles | 50 |
| PCB Headers | 12 |
| Insulation Material UL94V-2 | Natural polyamide |
| Insulation Material UL94V-0 | White opaque Nylon 6.6 |
Key Features
- Constructed with gold-plated brass contacts to ensure excellent conductivity.
- Compatible with Universal MATE-N-LOK Connector Housing supporting a current rating of 19A.
- Termination type is crimp, enabling secure and durable wire terminations.
- Operating temperature range from -55°C to 105°C for versatile application environments.
- Offers a low contact resistance of 3.5 mΩ, enhancing signal integrity.
- Designed for up to 50 mating cycles ensuring durability over time.
- Insulation materials include natural polyamide (UL94V-2) and white opaque Nylon 6.6 (UL94V-0).
- Ideal for applications in consumer electronics, commercial HVAC, power supplies, portable devices, and lighting systems.
Product Description
TE Connectivity 350536-7 is a female crimp terminal specifically designed for the Universal MATE-N-LOK Series connectors. This component supports wire sizes from 20 AWG minimum to 14 AWG maximum and is suitable for current loads up to 19A, making it ideal for power and signal transmission in various electronic assemblies.
Its brass body with gold plating guarantees superior electrical conductivity and corrosion resistance. The crimp termination method facilitates secure and reliable wire connections. With a length of 22.23 mm, it fits seamlessly into MATE-N-LOK connector housings.
Engineered to withstand operating temperatures ranging from -55°C to 105°C, this terminal ensures stable performance in demanding industrial, commercial, and consumer electronic environments. It offers a low contact resistance of 3.5 mΩ and an insulation resistance of 1000 MΩ thanks to its high-quality insulation materials including natural polyamide and Nylon 6.6 categorized under UL94V-2 and UL94V-0 standards respectively.
The terminal is rated for 50 mating cycles, providing lasting durability for repeated connection and disconnection cycles. Its design also includes features to reduce insertion force and block unused connector holes with blanking pins, optimizing connector performance.
Suitable applications include consumer electronics, commercial HVAC systems, portable power supplies, and lighting solutions. Manufactured in the United States, this product upholds rigorous quality standards.
Constructed with gold-plated brass contacts ensuring excellent conductivity. Crimp termination type providing secure wire connections. Operating temperature range from -55°C to 105°C suitable for various environments. Compatible with Universal MATE-N-LOK Connector Housings.
Supports wire sizes from 20 AWG to 14 AWG. Rated for 19A continuous current load. Low contact resistance of 3.5 mΩ enhances signal integrity. Durable for up to 50 mating cycles. Insulation materials include natural polyamide and Nylon 6.6 compliant with UL standards.
Manufactured in the United States ensuring product quality. Explore more TE Connectivity products and technical components in the Electronics & Electricals category on EnvMart for comprehensive industrial and commercial solutions.
Explore more products in our Crimp Contacts category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a current rating of 19A, making it suitable for various power and signal transmission applications.
It operates effectively within a temperature range of -55°C to 105°C, allowing for use in diverse environmental conditions.
The terminal accommodates wire sizes from 20 AWG minimum to 14 AWG maximum, ensuring versatility in wire connections.
It uses a crimp termination type, which facilitates secure and durable wire connections.
The contacts are made of brass with gold plating, while the insulation materials include natural polyamide and white opaque Nylon 6.6.
This model is designed for up to 50 mating cycles, ensuring durability during repeated connections and disconnections.
The terminal measures 22.23 mm in length, allowing it to fit into MATE-N-LOK connector housings seamlessly.
It has a low contact resistance of 3.5 mΩ, which enhances signal integrity in electronic assemblies.
Yes, the insulation materials are compliant with UL94V-2 and UL94V-0 standards, ensuring safety and performance.
It is suitable for applications in consumer electronics, commercial HVAC systems, portable power supplies, and lighting solutions.
This model features an insulation resistance of 1000 MΩ, contributing to its reliability in electronic applications.
It is specifically designed for use with Universal MATE-N-LOK connector housings, ensuring compatibility and optimal performance.
