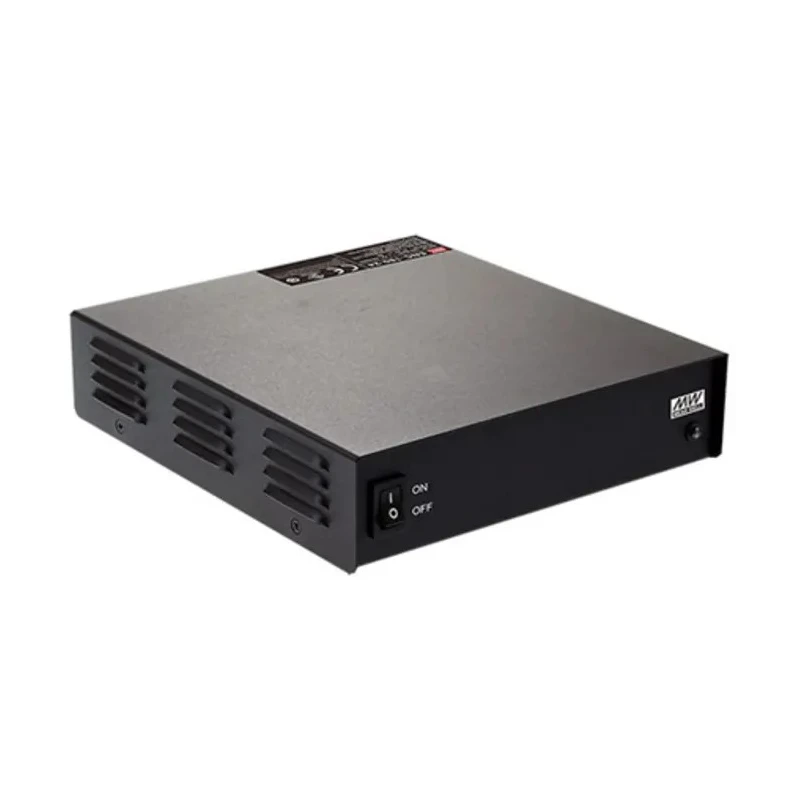

MEAN WELL AC/DC Adapter 264V AC Maximum Input Voltage 26A Maximum Output Current 13.8V DC Minimum Output Voltage ENP-360-12

MEAN WELL ENP-360-12 AC/DC Adapter is designed as a desktop power supply providing a reliable 360 W output, with a maximum output current of 26 A and a DC output voltage of 13.8 V. The adapter accepts an input voltage range of 90V AC to 264V AC, supporting universal AC input and full range operation. This unit features a fanless design that relies on free air convection, ensuring silent and maintenance-free operation.

It comes equipped with high efficiency circuitry, featuring energy efficiency between 91% and 94% depending on the specific model variant. The adapter provides robust protection against overload, overvoltage, overtemperature, and short circuit conditions, contributing to enhanced safety and longevity.

Constructed for rugged operation in the mobile radio field, the ENP-360 series has a standardized 7-inch width and operates reliably in ambient temperatures ranging from -30°C to +70°C. Built-in power factor correction and a 125% peak load capability ensure stable and optimized power delivery under varying load conditions.

Safety approvals include CE, UL 60950-1, and IEC 60950-1 compliance, with electromagnetic compatibility confirmed via compliance with emissions and immunity standards EN55022 (CISPR22 Class B), EN61000-3-2/3, FCC PART 15, and others. This model fulfills VI level energy efficiency requirements in line with EISA 2007/DoE, NRCan, and EU ErP mandates.

Applications encompass communication-related equipment such as TV antenna facilities, surveillance systems, electric scooter charging stations, and land mobile radio systems. Note that the input power lead (C13) must be ordered separately.

This power supply features a fanless design with free air convection cooling for silent operation. It supports a wide input voltage range from 90V AC to 264V AC for versatile application. The adapter provides built-in protections against overload, overvoltage, overtemperature, and short circuits.

Efficiency ranges between 91% and 94%, complying with VI Level energy efficiency standards. The robust construction allows operation in temperatures from -30°C to +70°C. This model is approved with CE, UL 60950-1, and IEC 60950-1 safety standards.

Suitable for communication equipment, surveillance systems, electric scooter charging, and land mobile radio systems. It includes a built-in power factor correction and supports a 125% peak load capability for reliable performance.

EnvMart offers this MEAN WELL ENP-360-12 AC/DC Adapter as a highly reliable power supply solution suitable for industrial, commercial, and communication applications requiring robust power conversion and stable output voltage.
