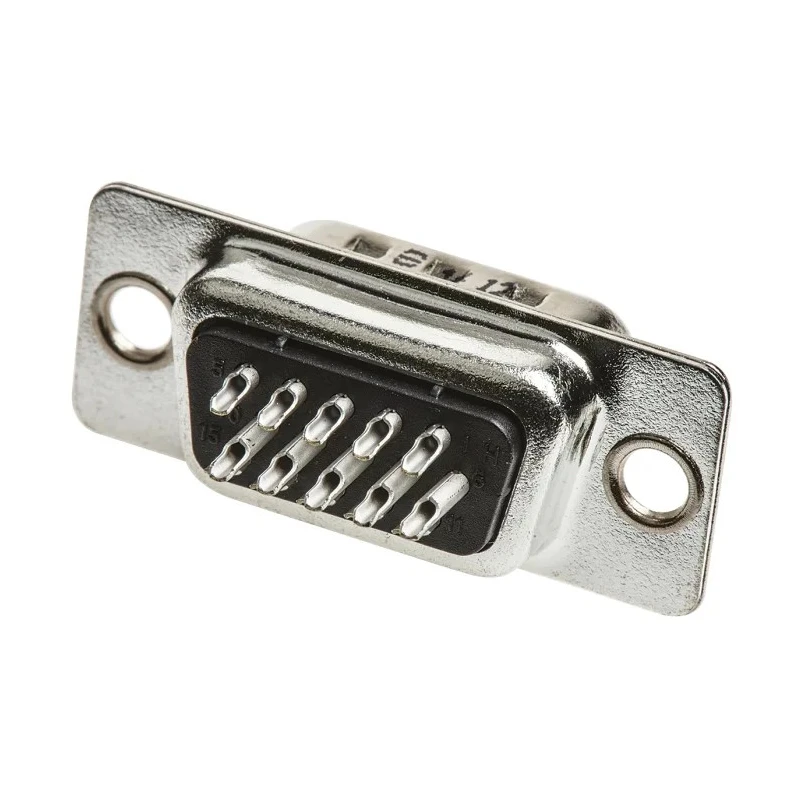

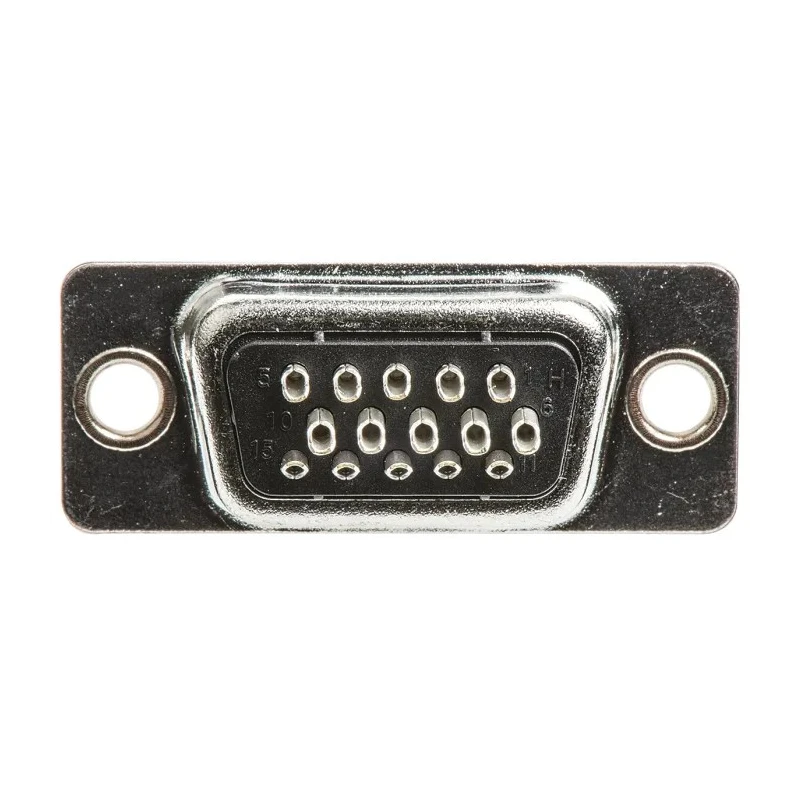

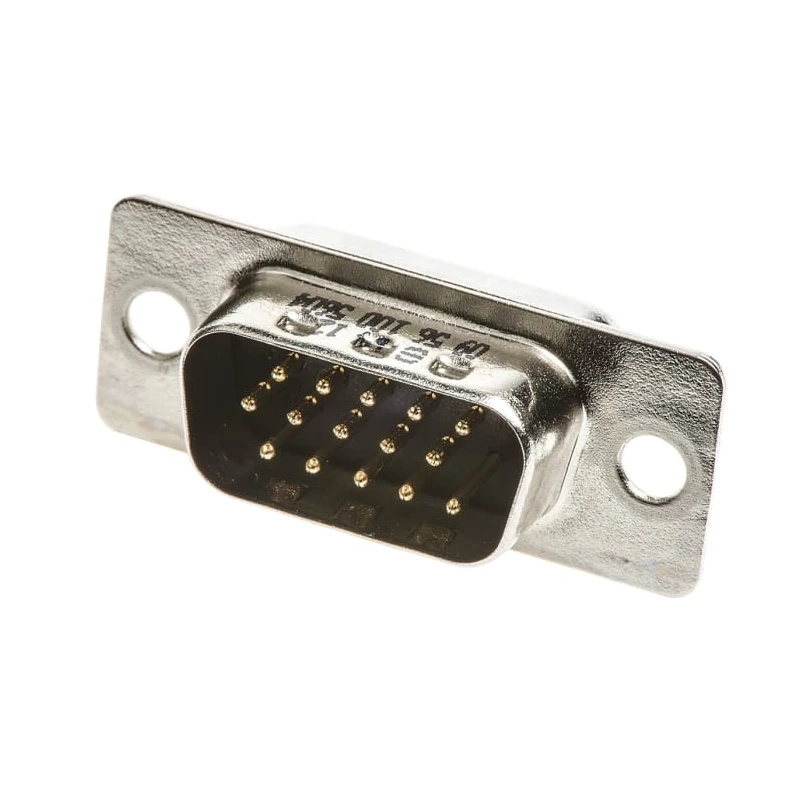

HARTING D-Sub 15 Way Straight 2.29 mm Pitch Cable D-Sub Connector 09561005604
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 1000V |
| Brand | HARTING |
| Orientation | Straight |
| Current | 2A |
| Mount Type | Cable |
| Housing Material | Steel |
| Contact Material | Copper Alloy |
| Series | D-Sub |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| Pitch | 2.29mm |
| Contact Plating | Gold |
| Number of Contacts | 15 |
| Contact Gender | Male |
| Connector Type D | D-Sub |
| D-Sub Shell Size | E |
| HARTING D-Sub 15 Way Straight 2.29 mm Pitch Cable D-Sub ConnectorBrand | HARTING |
Key Features
- Supports 15 contacts with male copper alloy pins plated in gold.
- Operates at a current of 2A and voltage up to 1000V.
- Housing made of steel with E size D-Sub shell.
- Suitable for temperatures from -55°C to 105°C.
- Designed for cable mounting with straight orientation and stamped solder cups.
- Meets performance level 3 with at least 50 mating cycles.
- Manufactured in China with high-density contact capacity exceeding standard D connectors by 70%.
Product Description
HARTING 09561005604 D-Sub Connector 15 Way Straight with 2.29 mm pitch is a robust cable-mounted connector designed for electronic and power applications. This male DD-Sub connector features a steel housing and copper alloy contacts plated with gold, ensuring reliable electrical performance and corrosion resistance.
The connector is rated for 2A current and 1000V voltage, supporting industrial and electronic use cases requiring durable, high-performance connections. Its operating temperature range of -55°C to 105°C makes it suitable for harsh environments.
Designed with stamped solder cups, it allows secure soldered termination to cables and guarantees a minimum of 50 mating cycles at performance level 3 as per DIN 41 652 part 2. The high-density design increases contact capacity by 70% compared to a standard subminiature D connector, benefiting compact and complex electronic manufacturing.
The steel housing provides mechanical strength while the gold-plated contacts optimize conductivity and long-term reliability. This connector is ideal for industrial, manufacturing, telecommunications, and computing equipment where precise, stable signal transfer is critical.
Supports 15 contacts with male copper alloy pins plated in gold. Operates at a current of 2A and voltage up to 1000V. Housing made of steel with E size D-Sub shell. Suitable for temperatures from -55°C to 105°C. Designed for cable mounting with straight orientation and stamped solder cups.
Performance level 3 with over 50 mating cycles as per DIN standard. High density contact capacity exceeding standard D connectors by 70%.
The HARTING D-Sub Connector series is widely used in electronics, power, telecommunications, and industrial manufacturing applications. Its reliable design, quality materials, and exacting standards make it a dependable choice for cable connections requiring mechanical robustness and excellent electrical performance.
Explore more connectors and components on EnvMart for industrial and electronic assembly solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This D-Sub connector operates at a voltage of up to 1000V.
It is rated for a current of 2A.
The housing is made of steel, and the contacts are copper alloy plated with gold.
It can operate in temperatures ranging from -55°C to 105°C.
This model supports 15 contacts with male pins.
It features stamped solder cups for secure soldered termination to cables.
The pitch size is 2.29 mm.
It is designed for at least 50 mating cycles at performance level 3 as per DIN 41 652 part 2.
This connector has an E size D-Sub shell.
It is manufactured in China.
It is suitable for industrial, telecommunications, and computing equipment applications requiring stable signal transfer.
This model has a high-density contact capacity that exceeds standard D connectors by 70%.
