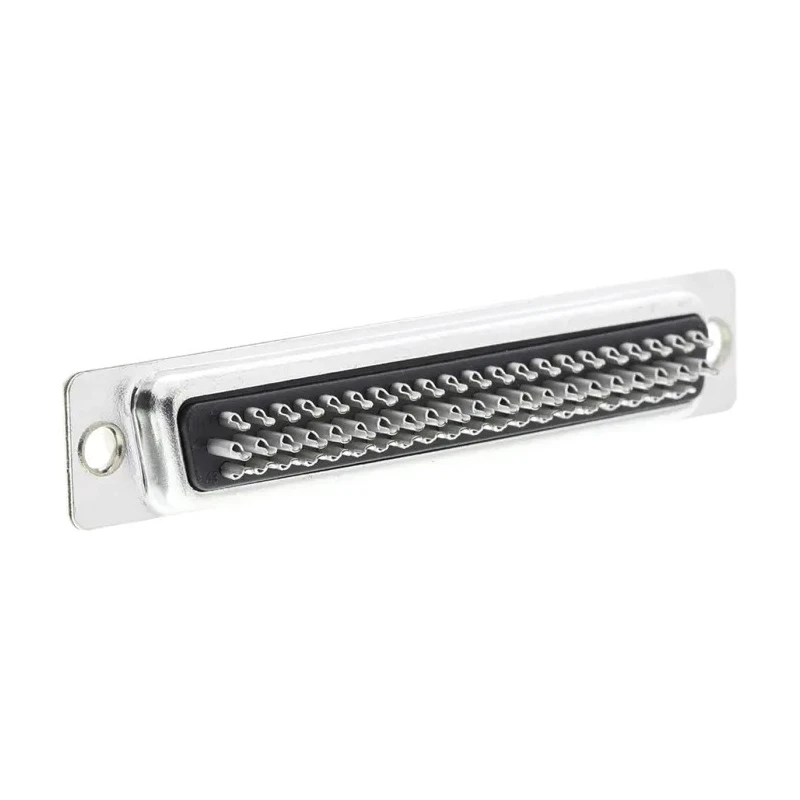

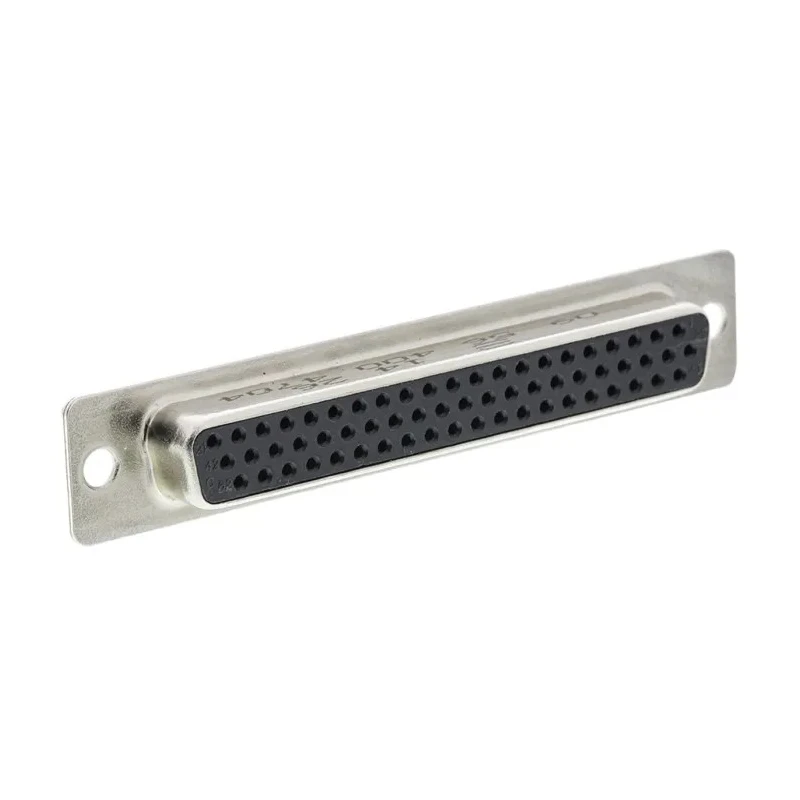

HARTING D-Sub 62 Way Straight 2.42 mm Pitch Cable D-Sub Connector 09564004704
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 1000V |
| Brand | HARTING |
| Orientation | Straight |
| Current | 2A |
| Mount Type | Cable |
| Housing Material | Steel |
| Contact Material | Copper Alloy |
| Series | D-Sub |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| Pitch | 2.42mm |
| Contact Plating | Gold |
| Number of Contacts | 62 |
| Contact Gender | Female |
| Connector Type D | D-Sub |
| D-Sub Shell Size | C |
| HARTING 62 Way Cable Mount D-sub Connector Socket, 2.42mm PitchBrand | HARTING |
Key Features
- High density connector with 62 contacts for enhanced contact capacity.
- Gold-plated copper alloy contacts ensure excellent conductivity and corrosion resistance.
- Steel housing provides robust mechanical protection and durability.
- Solder termination type with stamped solder cups for secure cable connection.
- Rated for 2 Ampere current and 1000 Volt voltage capacity.
- Operating temperature range from -55°C to 105°C suitable for harsh environments.
- Straight orientation with cable mount for flexible installation options.
- Compliant with DIN 41 652, part 2 standards for ≥ 50 mating cycles with performance level 3.
Product Description
HARTING 09564004704 D-Sub 62 Way Straight 2.42 mm Pitch Cable D-Sub Connector is engineered for industrial, electronic, and power connector applications requiring reliable and durable interfacing. This connector features 62 contacts arranged at a 2.42 mm pitch in a high-density layout, exceeding standard D-Sub Connector contact capacity by 70% to accommodate demanding wiring needs.
The connector has a robust steel housing that protects internal contacts and ensures mechanical strength. Contact material comprises gold-plated copper alloy, providing excellent conductivity and resistance to corrosion in diverse environmental conditions. Its solder termination with stamped solder cups allows for secure and effective cable attachment.
Designed to handle 2A current and withstand voltages up to 1000V, this connector operates reliably across a temperature range from -55°C to 105°C, making it suitable for demanding industrial and manufacturing environments. The straight cable mount orientation facilitates easy and flexible integration into cable assemblies and equipment.
Certified to meet DIN 41 652, part 2 standards with performance level 3, this connector guarantees a minimum of 50 mating cycles without gas test, ensuring long service life in repetitive-use scenarios. Its country of origin is China, reflecting high manufacturing standards.
High density 62-way connector design with 2.42 mm pitch contact spacing. Gold-plated copper alloy contacts for reliable electrical performance. Steel housing ensures mechanical protection and durability. Solder termination method with stamped solder cups.
Current rating of 2A and voltage rating of 1000V. Operating temperature range from -55°C to 105°C. Straight orientation and cable mount type configuration. Complies with DIN 41 652, part 2, performance level 3 standards.
Suitable for industrial, electronic, manufacturing, and power connector applications. Explore the HARTING range on EnvMart for more advanced connectivity solutions designed to meet rigorous industrial demands.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This D-Sub connector is rated for a current of 2 Amperes and can handle voltages up to 1000 Volts.
It operates reliably within a temperature range of -55°C to 105°C, making it suitable for harsh environments.
This connector features 62 contacts arranged in a high-density layout with a 2.42 mm pitch.
It has a steel housing for mechanical protection, and the contacts are made of gold-plated copper alloy for excellent conductivity and corrosion resistance.
This model uses a solder termination type with stamped solder cups for secure cable connections.
Yes, it complies with DIN 41 652, part 2 standards and is rated for performance level 3, ensuring a minimum of 50 mating cycles.
The connector has a straight orientation and is designed for cable mounting, offering flexible installation options.
The contacts are arranged at a pitch of 2.42 mm, which supports high-density connections.
It is suitable for industrial, electronic, manufacturing, and power connector applications requiring reliable interfacing.
The contacts in this D-Sub connector are female, designed to accommodate corresponding male connectors.
The country of origin for this connector is China, reflecting high manufacturing standards.
The gold plating on the copper alloy contacts enhances conductivity and provides resistance to corrosion, ensuring reliable electrical performance.
