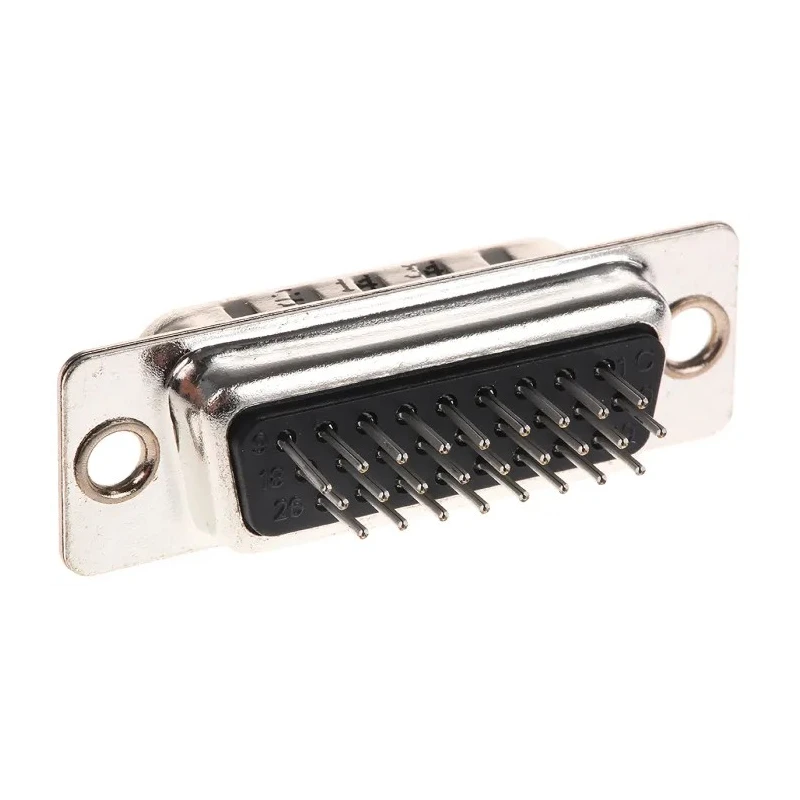

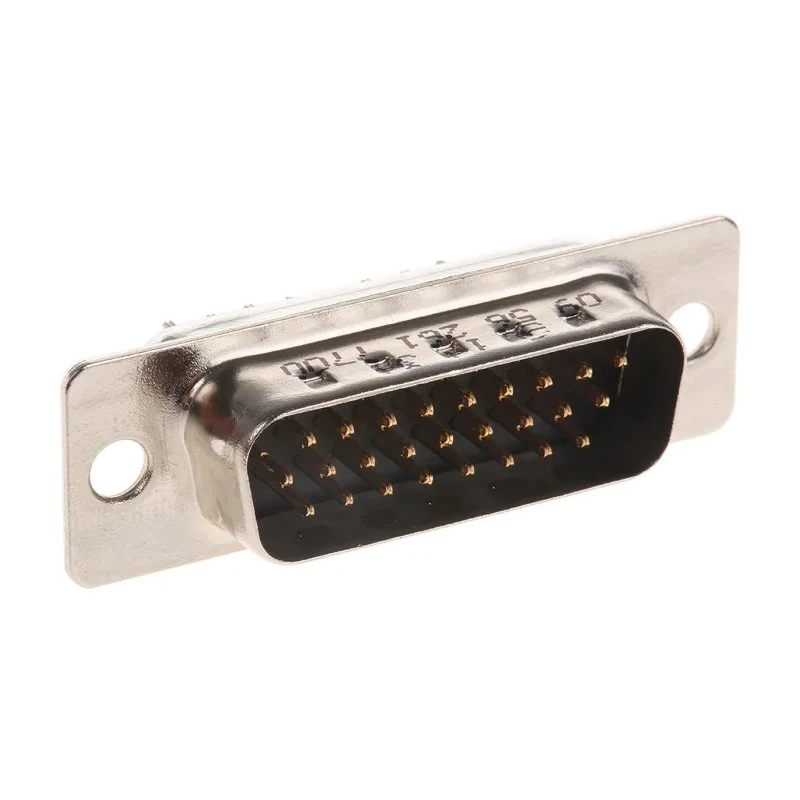

HARTING D-Sub Connector 26 Way Straight 2.29 mm Pitch Through Hole 1000 V 2 A 09562617700

HARTING 09562617700 D-Sub Connector is a 26 way straight connector with a 2.29 mm pitch designed for through hole mounting on PCBs. It features a high density design allowing 70% more contacts than standard D-Sub Connectors, suitable for high-performance industrial and electronic applications.

The connector utilizes gold plated stamped male pins made of copper alloy, housed within a sturdy steel shell designed to withstand mechanical and environmental stresses. Operating voltage is rated at 1000 V with a current capacity of 2 A, suitable for demanding electronic systems.

Operating temperature ranges from -55°C up to 105°C, ensuring reliable performance across wide temperature extremes. The solder termination provides secure and permanent connections on printed circuit boards.

The metal shell includes dimples and is designed with 2 mounting holes each 3.05 mm in diameter to facilitate mechanical fixing and durability. These features make it appropriate for industrial, laboratory, manufacturing, and commercial use with electronic systems.

Sturdy steel housing resists wear and mechanical damage. Gold plated copper alloy contacts maximize conductivity and corrosion resistance. High density pin arrangement increases connector capacity significantly. Through hole solder terminations simplify PCB assembly process.

Wide operating temperature range for versatile application environments. Metal shell design helps EMI shielding and mechanical protection. Targets electronic, power connector, and industrial equipment use cases.

The package includes the connector as specified with no additional accessories. Originating from China, the product is new and ready for integration into electronic assemblies requiring robust and reliable connections.
