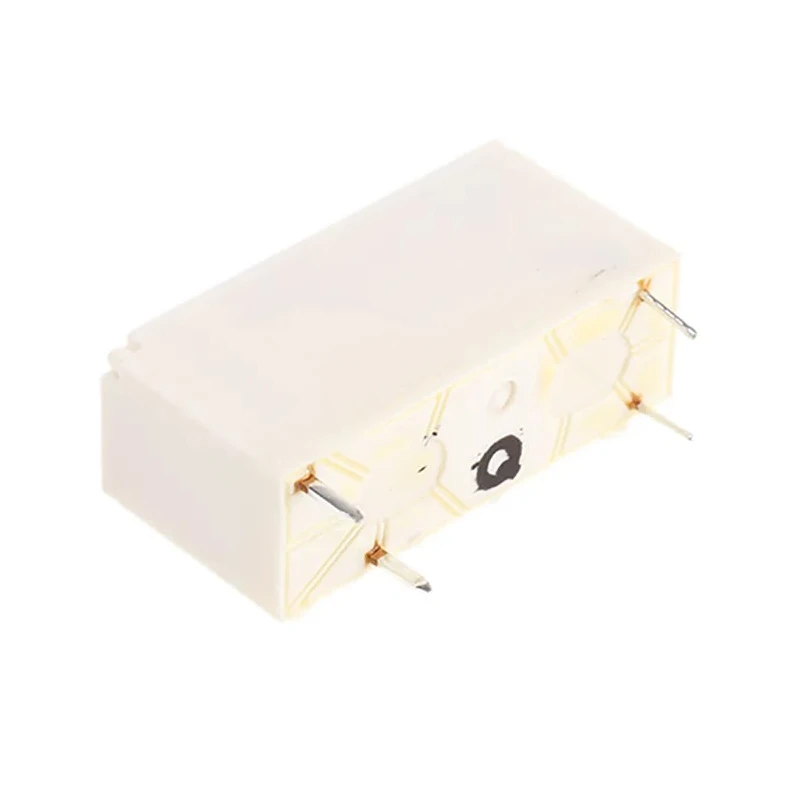

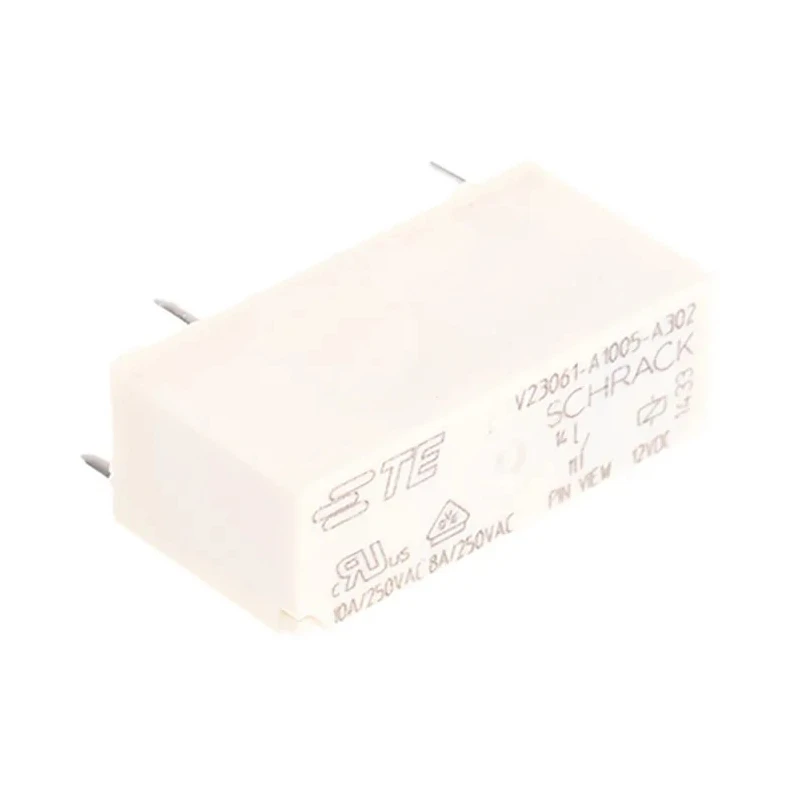

TE Connectivity Power Relay PCB Mount SPST 12V DC Coil 8A Switching Current V23061A1005A302
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Height | 15mm |
| Length | 28.6mm |
| Model | V23061A1005A302 |
| Width | 10mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | MSR |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -40°C |
| Switching Current | 8A |
| Terminal type | Solder |
| Standards/Approvals | RoHS |
| Coil Resistance | 652Ω |
| Coil Voltage | 12V dc |
| Switching AC Voltage | 400V ac |
| Coil Power | 221mW |
| Certified | VDE, UL, CSA, SEV, SEMKO, SETI |
Key Features
- This power relay features a Printed Circuit Board (PCB) mounting type for easy integration in electronic assemblies.
- It uses a silver alloy contact material ensuring high inrush current handling and durability.
- Coil resistance is 652 ohms with a coil power consumption of 221mW offering efficient operation.
- Certified with RoHS compliance and several standards including VDE, UL, CSA, SEV, SEMKO, and SETI.
- Operating temperature range from -40°C to 85°C supports demanding industrial environments.
- Compact dimensions of 28.6mm length, 10mm width, and 15mm height optimize space usage.
- Designed with a monostable coil and washproof construction for robust performance.
- Suitable for industrial automation, electrical equipment, and signal conditioning applications.
Product Description
TE Connectivity V23061A1005A302 is a high-quality power relay engineered for PCB mounting applications. It operates on a 12V DC coil voltage and supports a switching current of 8 amperes with a single-pole single-throw (SPST) contact configuration.
This relay features silver alloy contacts that provide excellent handling of high inrush currents and ensures long service life. The coil resistance is precisely 652 ohms and consumes 221mW power, offering energy-efficient control switching capabilities.
Certified under multiple international standards including VDE, UL, CSA, SEV, SEMKO, and SETI, this relay complies with RoHS directives ensuring environmentally-friendly design and manufacturing. The relay is built for robust performance with a washproof design and can operate across a wide ambient temperature range from -40°C to 85°C, making it suitable for harsh industrial conditions.

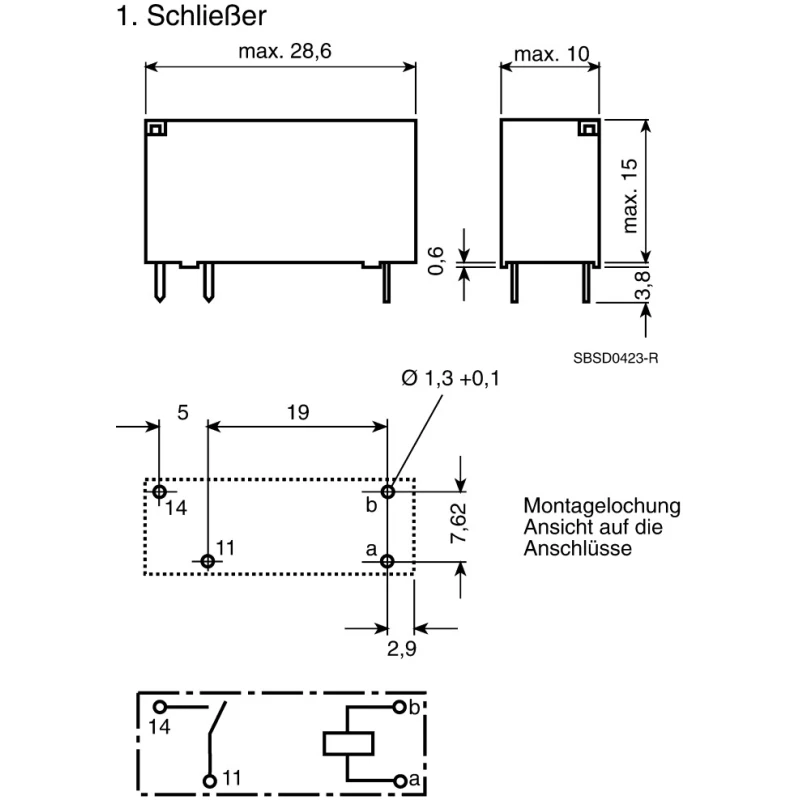

Its compact size with dimensions of 28.6mm length, 10mm width, and 15mm height facilitates easy integration into space-constrained PCB layouts. The device switches up to 2 kVA power at AC voltages reaching 400V, perfect for electrical control circuits, automation systems, and signal conditioning tasks.
PCB mounting type relay designed for dense electronic assemblies. Silver alloy contacts provide durability and high inrush current capability. Monostable coil type with low coil power consumption. Wide operating temperature range from -40°C to 85°C for reliability.
Certified compliant with RoHS and multiple international standards. Compact dimensions suitable for versatile applications. Switching current rate of 8 amperes ensuring strong switching capacity. Washproof relay construction enhances product longevity.
Ideal for industrial automation, electrical panels, and control equipment.
This power relay is a core component in manufacturing, electrical systems, HVAC controls, and other industrial applications requiring reliable switching with minimal energy consumption. Explore the full range of TE Connectivity parts on EnvMart to find matching components and ensure optimal system performance.
Explore more products in our Power Relays category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay operates on a 12V DC coil voltage, making it suitable for various electronic applications.
It can handle a maximum switching current of 8 amperes, suitable for various control applications.
This relay has compact dimensions of 28.6mm in length, 10mm in width, and 15mm in height, allowing for easy integration into PCB layouts.
The coil resistance is 652 ohms, which contributes to its efficient operation.
It can operate within a temperature range of -40°C to 85°C, making it suitable for demanding industrial environments.
This model features a single-pole single-throw (SPST) contact configuration.
The contacts are made of silver alloy, which provides excellent durability and high inrush current handling capabilities.
It is certified with RoHS compliance and meets several international standards including VDE, UL, CSA, SEV, SEMKO, and SETI.
The coil power consumption is 221mW, which contributes to its energy-efficient operation.
This relay can switch AC voltages up to 400V, making it suitable for various electrical control circuits.
It features a PCB mounting type, designed for easy integration into electronic assemblies.
It is suitable for industrial automation, electrical equipment, and signal conditioning applications.
