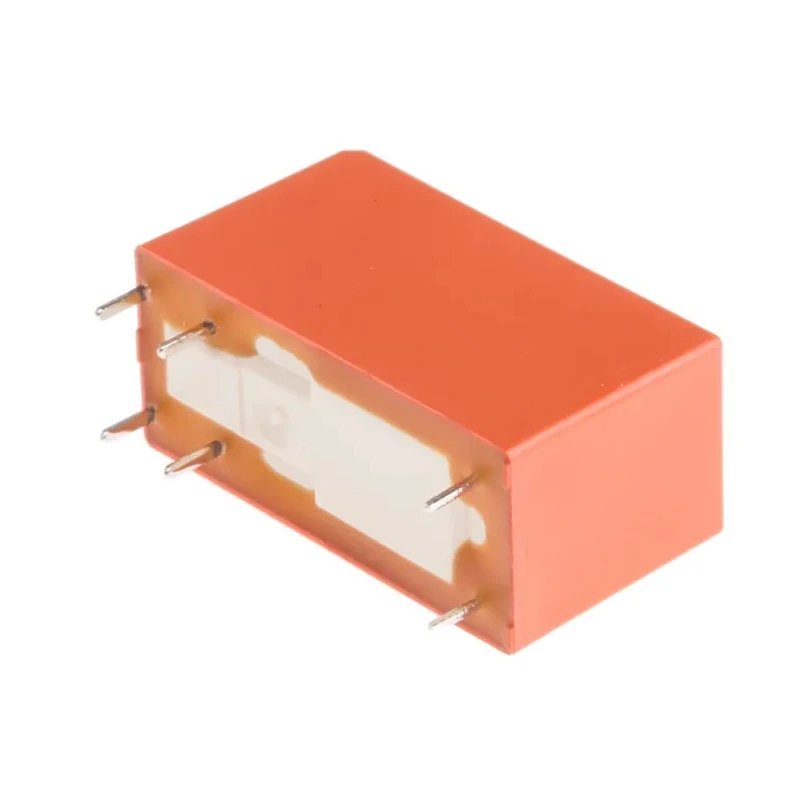

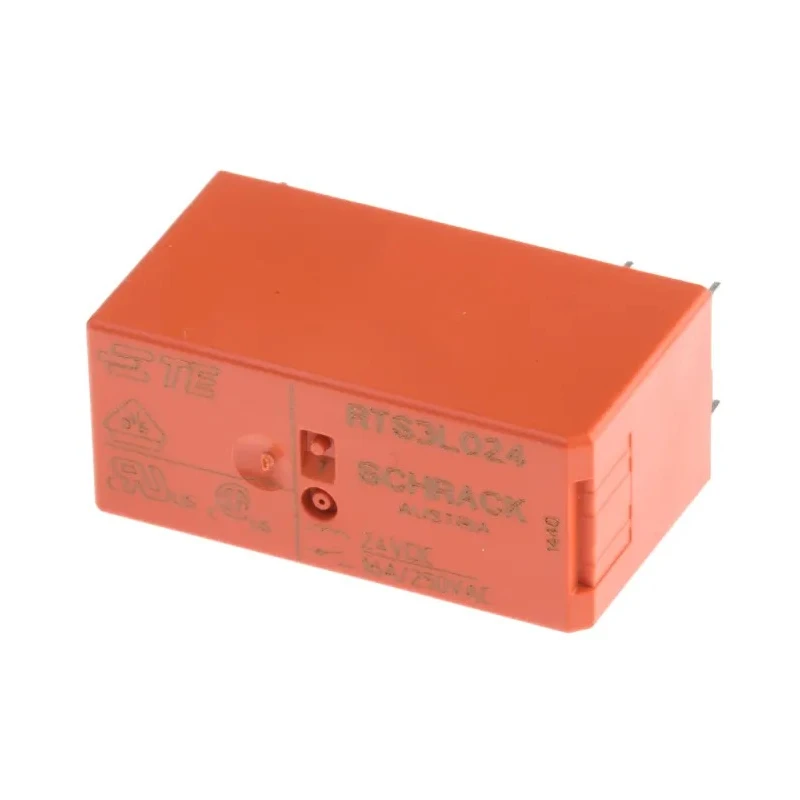

TE Connectivity Power Relay PCB Mount SPST 24V DC Coil 16A Switching Current RTS3L024
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Height | 16mm |
| Length | 29mm |
| Model | RTS3L024 |
| Width | 12.7mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | RT-iPower |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -40°C |
| Switching Current | 16A |
| Terminal type | Solder |
| Standards/Approvals | IEC 61810, RoHS |
| Coil Resistance | 1.4kΩ |
| Coil Voltage | 24V dc |
| Switching AC Voltage | 400V ac |
| Coil Power | 500mW |
Key Features
- This relay features a SPST contact configuration for straightforward switching applications.
- Designed for PCB mount with solder-type terminals assuring secure installation.
- Supports switching AC voltage up to 400V AC and high inrush currents.
- Constructed with silver alloy contacts for dependable conductivity and durability.
- Coil power consumption is low at 500mW with a coil resistance of 1.4kΩ.
- Operating temperature range from -40°C to 85°C suits demanding industrial conditions.

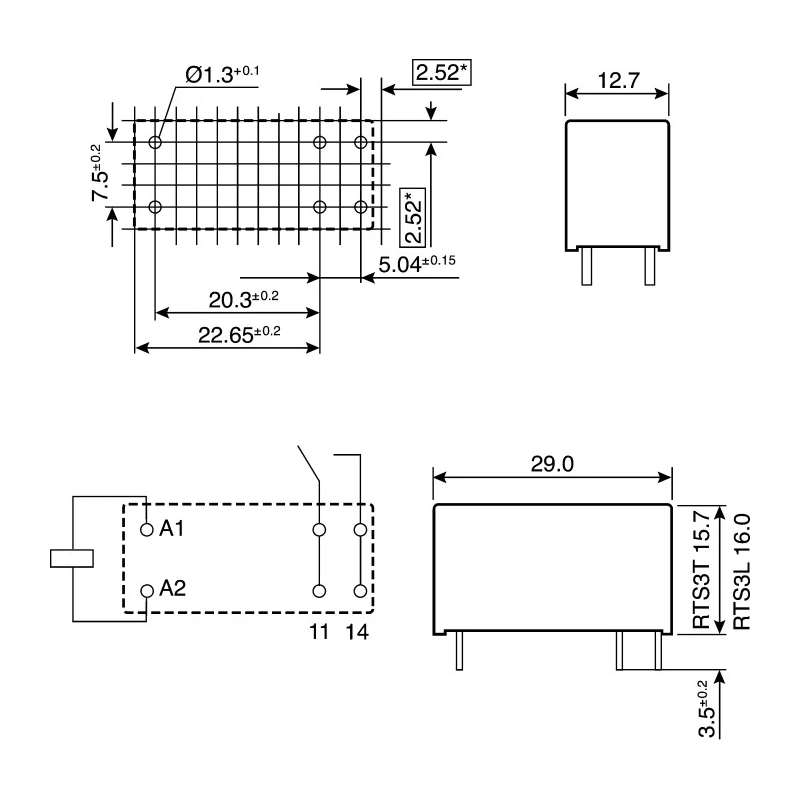

- Compact dimensions of 29mm length, 16mm height, and 12.7mm width facilitate space-saving implementations.
- Complies with IEC 61810 and RoHS standards ensuring quality and safety.
Product Description
TE Connectivity RTS3L024 is a high-performance power relay designed for PCB mounting, featuring a 24V DC coil and SPST contact configuration supporting 16A switching current. This relay delivers reinforced insulation with a maximum switching AC voltage of 400V and a coil power rating of just 500mW, optimizing efficiency and reliability in various electrical control applications.
The relay's compact size with a length of 29mm, height of 16mm, and width of 12.7mm allows integration into dense PCB layouts. Its silver alloy contacts ensure durability and excellent conductivity, while the coil resistance at 1.4kΩ contributes to stable operation. The operating temperature range from -40°C to 85°C makes it suitable for demanding industrial environments.
Compliant with IEC 61810 and RoHS directives, this relay meets rigorous international standards for safety and environmental considerations. It has high inrush current capability suitable for lighting systems, movement sensors, filament and incandescent lamp loads, and motor controls. The solder terminal type facilitates secure and reliable PCB mounting.
This relay features a SPST contact configuration for straightforward switching applications. Designed for PCB mount with solder-type terminals assuring secure installation. Supports switching AC voltage up to 400V AC and high inrush currents.
Constructed with silver alloy contacts for dependable conductivity and durability. Coil power consumption is low at 500mW with a coil resistance of 1.4kΩ. Operating temperature range from -40°C to 85°C suits demanding industrial conditions.
Compact dimensions of 29mm length, 16mm height, and 12.7mm width facilitate space-saving implementations. Complies with IEC 61810 and RoHS standards ensuring quality and safety. Applications include lighting systems, movement sensors, filament/incandescent lamp loads, and motor controls.
This power relay is ideal for industrial, commercial, and manufacturing applications requiring reliable switching of electrical loads with precise control and long operational life. It is widely used in automation, HVAC systems, lighting control, and motor control circuits.
Explore more power relay options and electronic components in the Electronics & Electricals category on EnvMart to find compatible products for your project needs.
Explore more products in our Power Relays category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a switching current capacity of 16A, making it suitable for various electrical control applications.
The coil voltage for this relay is 24V DC, which is necessary for its operation.
It supports switching AC voltage up to 400V AC, allowing it to handle a variety of loads.
The relay has compact dimensions of 29mm in length, 16mm in height, and 12.7mm in width, facilitating space-saving implementations on PCBs.
This unit features an SPST (Single Pole Single Throw) contact configuration for straightforward switching applications.
The coil power consumption is low at 500mW, which contributes to its efficiency.
It operates effectively within a temperature range of -40°C to 85°C, making it suitable for demanding industrial environments.
The contacts are constructed from silver alloy, ensuring good conductivity and durability.
This model features solder-type terminals, which assure secure installation on printed circuit boards (PCBs).
It complies with IEC 61810 and RoHS standards, ensuring quality and safety in its applications.
The coil resistance is 1.4kΩ, which is important for its operational stability.
