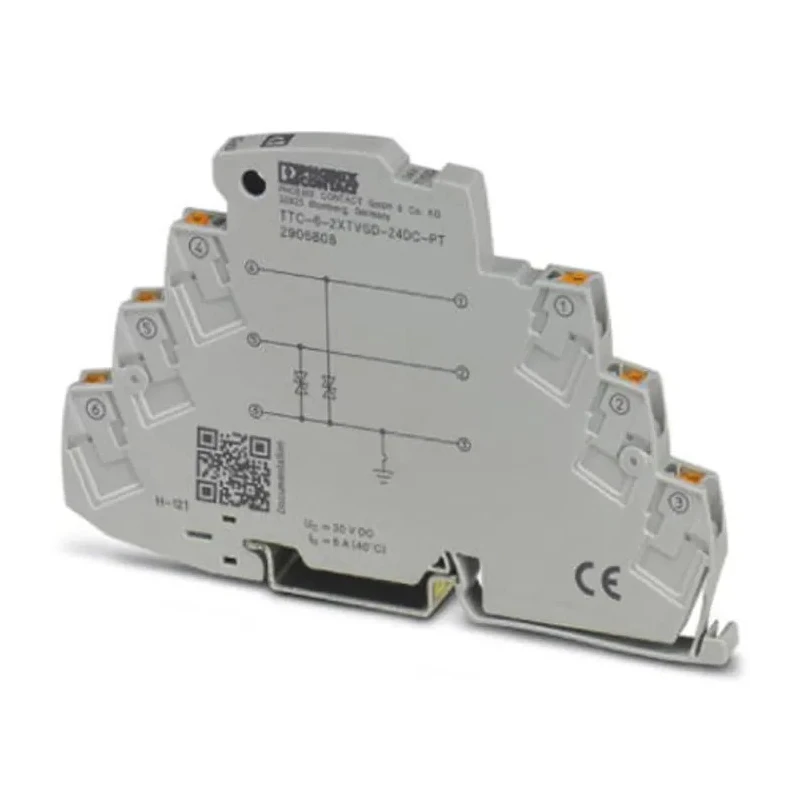

Phoenix Contact Surge Protector, 1 kA Maximum Surge Current, DIN Rail Mount, Model 2906808

Phoenix Contact 2906808 Surge Protector offers reliable protection for sensitive electronic components against voltage spikes by providing a maximum surge current rating of 1 kA. This surge protector is specially designed for DIN rail mounting, ensuring quick and secure installation in industrial control cabinets.

The device features a robust PBT housing that withstands abrasion and extreme temperatures from -40°C to +85°C, making it ideal for challenging industrial environments. The push-in connectors facilitate easy, tool-free wiring for efficient installation and maintenance.

With compact dimensions of 105.8 mm height, 6.2 mm width, and 69.5 mm depth, this surge protector maximizes space utilization in control panels. The unit holds the UL94V-0 flame retardant rating, enhancing safety by self-extinguishing in case of fire emergencies.

The surge protector responds quickly with a response time of less than or equal to 1 nanosecond, thereby protecting equipment from transient voltage surges. It includes an integrated status indicator which operates without auxiliary power and offers an option for remote signaling to monitor protection status remotely.

Its IP20 rating ensures protection against accidental contact and ingress of solid foreign objects larger than 12 mm, suitable for indoor industrial use. This device is highly suitable for the protection of speed, pressure, and flow sensors as well as safeguarding input and output sections of controllers in automation and control systems.

Ensures interference-free signal transmission in measurement and control technology. Push-in connection technology allows tool-free wiring. Compact dimensions maximize control cabinet packing efficiency. Robust PBT housing resists abrasion, wear, and high temperatures.

UL94V-0 flame retardant rating for safety. Rapid response time of ≤1 ns for instant surge grounding. Integrated status indicator without auxiliary energy. IP20 protection against touch and objects larger than 12 mm. Approvals: EN 61643-21, IEC 61643-21.

Phoenix Contact surge protectors are trusted in industrial, automation, and electrical environments to provide durable and efficient surge protection. Explore a wide range of Surge Protection Devices on EnvMart to enhance your control systems and safeguard electronic equipment.
