Essentra Nylon PCB Post Dual-Locking Support Pillar 8 mm Height, 12 mm Overall Height, 2.5 mm PCB Hole Diameter MDLSP1-08M-01

Free Delivery in India | Lowest Global Shipping Charges

Essentra Nylon PCB Post Dual-Locking Support Pillar 8 mm Height, 12 mm Overall Height, 2.5 mm PCB Hole Diameter MDLSP1-08M-01

Name: Essentra Nylon PCB Post Dual-Locking Support Pillar 8 mm Height, 12 mm Overall Height, 2.5 mm PCB Hole Diameter MDLSP1-08M-01
Brand: Essentra
SKU: 203732
Price: 0.19 USD
Availability: InStock



Category PCB Supports Brand Essentra Condition New

Specifications

Country of Origin	United Kingdom
Brand	Essentra
Material	Nylon
Colour	Natural
Height	8mm
Model	MDLSP1-08M-01
Overall height	12mm
Standards/Approvals	RoHS
PCB Hole Diameter	2.5mm
PCB Thickness	1.65mm
Support Base Width	4.6mm

Key Features

This post has an 8 mm height and 12 mm overall height for versatile PCB spacing.
It fits PCBs with a 2.5 mm hole diameter and supports 1.65 mm PCB thickness securely.
Constructed from durable natural nylon 66, ensuring insulation and mechanical strength.

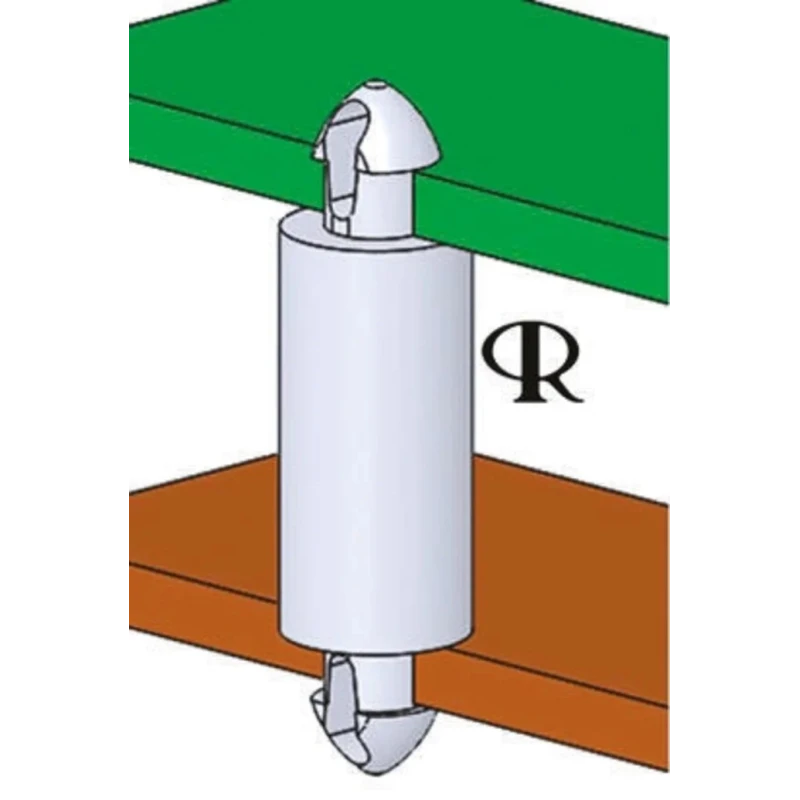

Dual-locking design snaps firmly onto chassis and board without screws, allowing easy manual release.
Complies with RoHS standards for environmental safety and quality.
Support base width measures 4.6 mm providing stable mounting on PCB surfaces.
Suitable for electronic manufacturing, prototyping, cleanroom applications, and ESD controlled environments.

Product Description

Essentra MDLSP1-08M-01 is a high-quality nylon PCB post featuring a dual-locking mechanism for robust support and spacing of printed circuit boards in electronic assemblies. With an 8 mm post height and 12 mm overall height, it accommodates PCBs requiring precise elevation.

Designed to fit a 2.5 mm PCB hole diameter and suitable for 1.65 mm thick PCBs, this post secures components by snapping into place both on the chassis and PCB with no need for screws, enabling quick installation and removal by hand.

Manufactured from natural Nylon 66, the support pillar provides excellent electrical insulation and mechanical durability, ensuring long-lasting performance in critical applications.

Its 4.6 mm support base width contributes to stability when mounted, making it ideal for various industrial uses including electronics manufacturing, prototyping, cleanroom facilities, and ESD-sensitive environments.

The product fully complies with RoHS standards, guaranteeing it meets environmental and safety regulations applicable to electronic components. This dual-locking nylon PCB post measures 8 mm height and 12 mm overall height.

Fits 2.5 mm PCB hole diameter and supports 1.65 mm PCB thickness. Constructed from durable, natural-colored Nylon 66 material. Dual-locking design secures PCB without screws and allows hand-release. RoHS compliant for environmental safety and usage assurance.

Support base width is 4.6 mm for stable PCB mounting. Suited for industrial electronic applications including prototyping and cleanroom use. Explore our range of high-performance PCB Supports for reliable electronic component mounting and assembly solutions at EnvMart.
