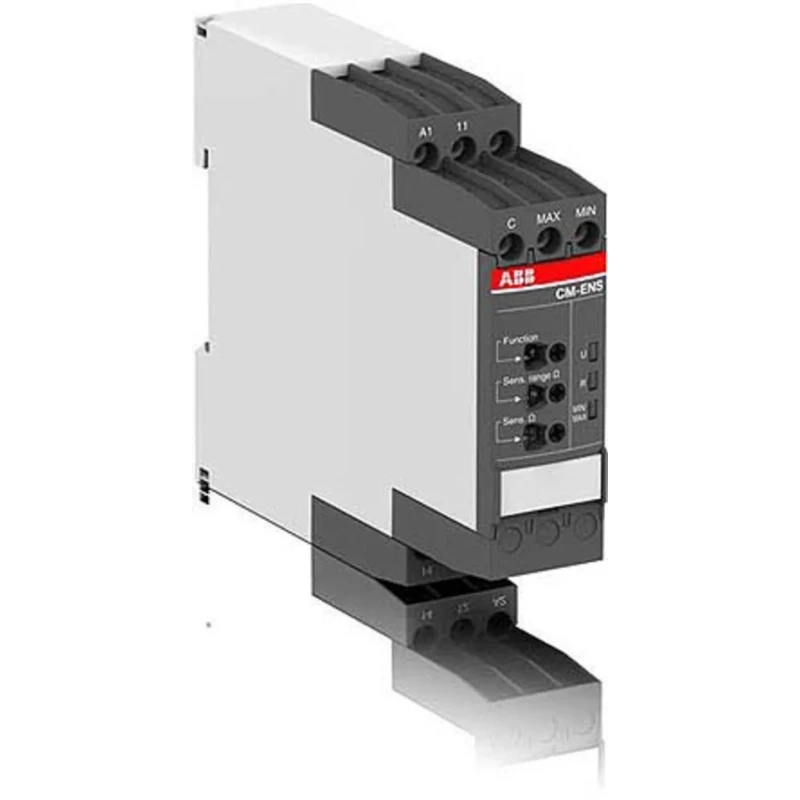

ABB CM-ENS Series Liquid Level Relay 1 Input 240V AC Rated SPDT Relay DIN Rail Mount 1SVR730850R2200 CM-ENS.23S
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | Input 240V ac-Rated SPDT Relay RS Stock No |
| Brand | ABB |
| Model | 1SVR730850R2200 CM-ENS.23S |
| SENSITIVITY | 1000kΩ |
| IP Rating | IP20, IP50 |
| Mount Type | DIN Rail |
| Overall Length | 113.4mm |
| Current Rating | 8.5mA |
| Number of inputs | 1 |
| Output type | SPDT Relay |
| Series | CM-ENS |
| Overall Width | 22.5mm |
| Input Type | Voltage |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -25°C |
| Number of outputs | 1 |
| Terminal type | Screw |
| Maximum Supply Voltage | 240V ac |
| Overall Depth | 113.4mm |
| Probe Voltage | 12V |
Key Features
- Compact design with 22.5 mm width suitable for space saving DIN Rail mounting.
- Single input probe voltage of 12V for conductive liquids monitoring.
- Operating temperature range from -25°C to 60°C for industrial robustness.
- Screw terminal type ensures secure and reliable electrical connections.
- High sensitivity of 1000kΩ for precise liquid level detection.
- Output is a single-pole double-throw (SPDT) relay with 8.5 mA current rating.
- IP20 and IP50 rated for protection against environmental factors.
- Standards compliance including CAN/CSA C22.2 No.14, IEC/EN 60255-27, IEC/EN 60947-5-1, IEC/EN 61000-6-2, IEC/EN 61000-6-3, and UL 508.
Product Description
ABB 1SVR730850R2200 CM-ENS.23S Liquid Level Relay is an industrial-grade measurement instrument designed for conductive liquid level control and protection. Equipped with a DIN Rail mount and a compact 22.5 mm width, it facilitates easy installation in control panels with limited space. The relay supports a single voltage input rated at 240V AC and features a SPDT relay output suitable for various switching applications.
This model operates reliably within a wide temperature range from -25°C up to 60°C, making it suitable for harsh industrial environments. Its screw terminal connections ensure secure wiring and maintenance convenience. Sensitivity is adjustable to 1000kΩ, aiding in precise liquid detection in multiple applications.
Compliance with international standards such as IEC/EN and UL 508 highlights its high safety and reliability credentials. It provides essential functionalities such as dry running protection for pumps, overflow alerts, and level regulation in industrial, wastewater, and chemical processing environments.
Compact 22.5 mm width DIN Rail mounting simplifies panel installation. Single 12V input probe voltage for conductive liquids monitoring. Screw terminals for secure electrical connection. Operating temperature range is -25°C to 60°C suitable for industrial conditions.
High sensitivity of 1000kΩ for accurate level detection. SPDT output relay with an 8.5 mA current rating for reliable switching. Protected by IP20 and IP50 ratings against ingress of solids and moisture. Certified per multiple standards including CAN/CSA, IEC/EN, and UL 508.
Applications include pump dry run prevention, overflow control, and industrial liquid level monitoring. Manufactured in Germany ensuring superior quality and durability.
The ABB CM-ENS Series offers a reliable and efficient solution for industrial liquid level control, suited for automation in water treatment plants, chemical processing, and manufacturing industries. Its design ensures optimal performance, ease of use, and long-term durability in various environments.
Explore more products in the Level Controllers category for comprehensive industrial measurement and control solutions on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The input voltage rating for this model is 240V AC.
This unit has a sensitivity level of 1000kΩ for precise liquid level detection.
It features a single-pole double-throw (SPDT) relay output with a current rating of 8.5 mA.
The operating temperature range is from -25°C to 60°C, making it suitable for industrial environments.
The overall dimensions are 113.4 mm in length, 22.5 mm in width, and 113.4 mm in depth.
This model is designed for DIN Rail mounting, facilitating easy installation in control panels.
It uses screw terminals for secure and reliable electrical connections.
The relay is rated IP20 and IP50 for protection against environmental factors.
The probe voltage for this model is 12V, specifically for monitoring conductive liquids.
It complies with multiple standards including CAN/CSA C22.2 No.14, IEC/EN 60255-27, and UL 508.
It is suitable for applications such as pump dry run prevention, overflow control, and industrial liquid level monitoring.
This unit is manufactured in Germany, ensuring quality standards are met.
