Texas Instruments Bus Transceiver 16-Bit Non-Inverting TTL 48-Pin SSOP SN74ABT16245ADL

Free Delivery in India | Lowest Global Shipping Charges

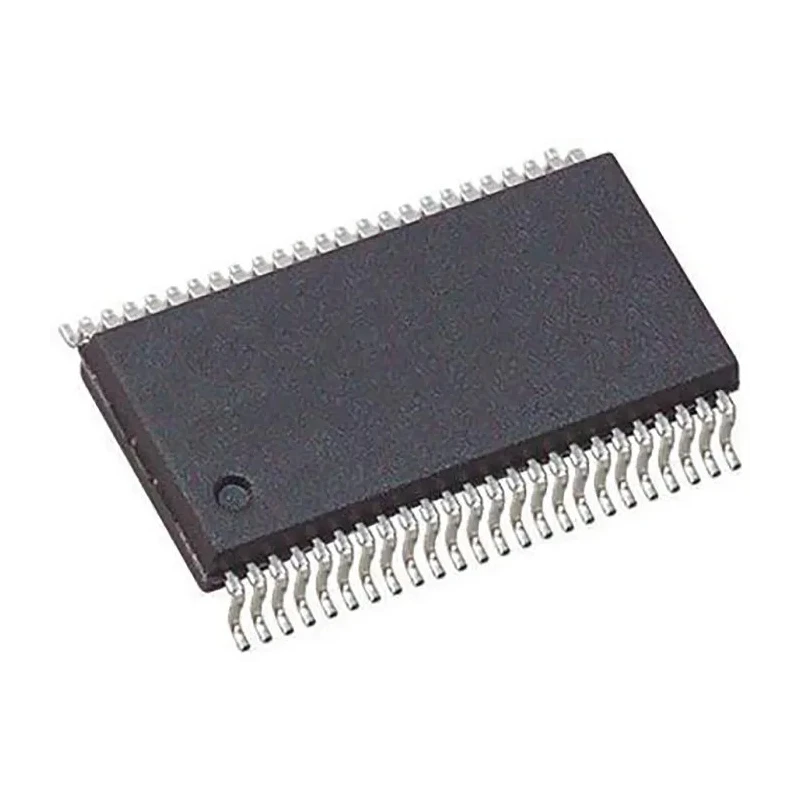

Texas Instruments Bus Transceiver 16-Bit Non-Inverting TTL 48-Pin SSOP SN74ABT16245ADL

Name: Texas Instruments Bus Transceiver 16-Bit Non-Inverting TTL 48-Pin SSOP SN74ABT16245ADL
Brand: Texas Instruments
SKU: 203531
Price: 2.17 USD
Availability: InStock



Category Bus Transceivers Brand Texas Instruments Condition New

Specifications

Country of Origin	India
Brand	Texas Instruments
Height	2.59mm
Length	15.88mm
Model	SN74ABT16245ADL
Mount Type	Surface
Compatibility	Input LVTTL/TTL, Output TTL
Output type	3 State
Series	SN74ABT16245
Maximum Operating Temperature	85°C
Package Type	SSOP
Minimum Operating Temperature	-40°C
Polarity	Non-Inverting
Number Of Channels	16
Pin Count	48
Maximum Supply Voltage	5.5V
Logic Family	ABT
Logic Function	Bus Transceiver
Minimum Supply Voltage	4.5V
Maximum High Level Output Current	-32mA
Maximum Propagation Delay Time @ CL	4.6ns
Maximum Low Level Output Current	64mA
Output Level	TTL
Input Level	TTL

Key Features

Operates with a supply voltage range from 4.5V to 5.5V.
Compatible with LVTTL and TTL input levels and outputs TTL signals.
Features a maximum propagation delay time of 4.6ns at CL.
Supports 16 channels with 3-state output type for flexible bus interfacing.
Designed for surface mount with a compact 48-pin SSOP package.
Operates within a temperature range of -40°C to 85°C.
Maximum high level output current is -32mA; maximum low level output current is 64mA.
Complies with 74ABT family advanced BiCMOS logic standards, ideal for industrial and electronic component applications.

Product Description

Texas Instruments SN74ABT16245ADL Bus Transceiver is a 16-bit non-inverting TTL device designed for high-performance bus interfacing applications. It is supplied in a 48-pin SSOP surface mount package suitable for compact PCB layouts and advanced electronic assemblies.

This device operates typically between 4.5V and 5.5V power supply with compatibility for LVTTL input and TTL output levels. The transceiver supports 3-state outputs enabling flexible control of 16 individual channels for data transfer and bus communication.

Operating temperatures range from -40°C to 85°C make this device suitable for industrial and harsh environment applications. The maximum propagation delay time of 4.6ns at CL ensures rapid data transmission with minimal latency. Maximum high level output current is -32mA, and the maximum low level output current is 64mA, supporting robust signal driving capability.

The compact dimensions of 2.59mm height and 15.88mm length facilitate integration in space-restricted electronic designs. As part of the 74ABT advanced BiCMOS logic family, it provides reliable and efficient bus transceiver functionality suitable for semiconductor and electronic component implementations.

Operates from 4.5 to 5.5 volts supply voltage. Features low propagation delay time of 4.6 nanoseconds. Supports 16 bidirectional channels with 3-state outputs. Compatible with LVTTL and TTL logic levels. Surface mount SSOP 48-pin package for compact PCB integration.

Suitable for industrial temperature ranges from -40°C to 85°C.

This bus transceiver is ideal for use in industrial, laboratory, manufacturing, and electronic semiconductor applications requiring fast, reliable digital signal transmission and bus communication.

Explore more advanced semiconductor components and Bus Transceivers in our Electronics & Electricals category. Texas Instruments products like the SN74ABT16245ADL provide trusted quality and performance for demanding electronic designs.
