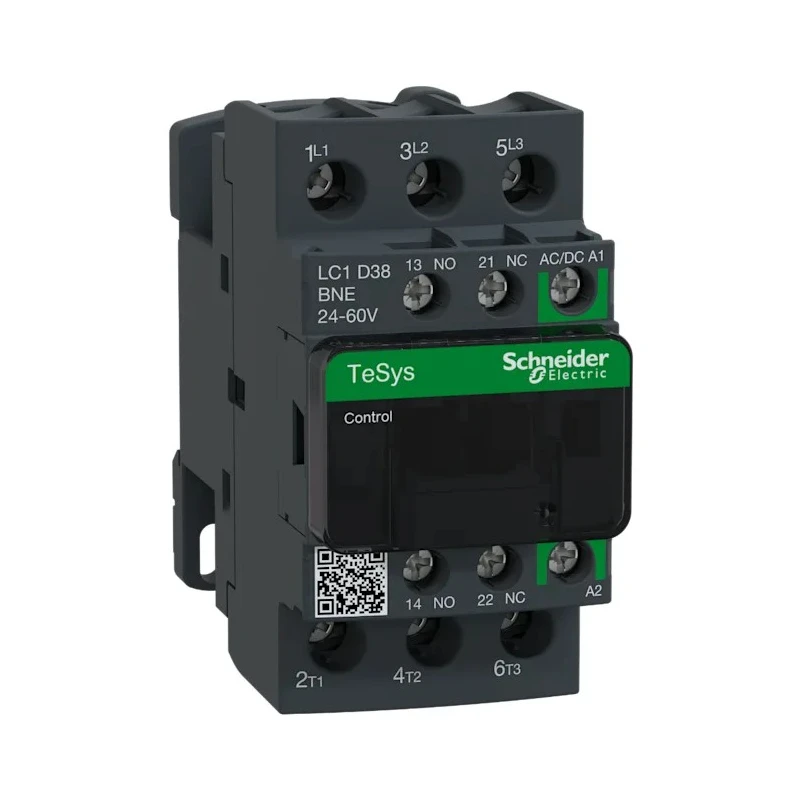

Schneider Electric TeSyS D Contactor 24V ac/dc Coil 3-Pole 38 A 18.5 kW 60V 3 NO 690V ac LC1D38BNE

Schneider Electric LC1D38BNE TeSyS D Contactor is a high-reliability motor control and resistive load contactor featuring a 24V ac/dc coil and rated for 38A contact current at 690V ac. This 3-pole contactor supports 3 normally open (NO) contacts and includes 2 auxiliary contacts configured as 1 NO and 1 NC, providing enhanced switching capabilities.

The device is designed for easy installation on DIN rails and panels, boasting compact dimensions of 92mm width, 85mm depth, and 45mm length. It operates reliably across a wide temperature range from -25°C up to 60°C, making it suitable for diverse industrial, automation, and motor control applications.

Engineered to meet multiple international certifications such as UL, RoHS, IEC, EAC, CSA, and CCC, this contactor ensures compliance and safety. Its IP20-rated screw terminals are designed to be finger-safe, with markings that comply with both North American and international standards.

The contactor also features a bidirectional peak limiting diode suppressor to protect the coil from voltage spikes, bolstering its operational life. Utilization categories include AC-1 for resistive loads with power factors of at least 0.95, and AC-3 for squirrel cage motors where breaking occurs with the motor running, applicable in lifts, escalators, conveyors, pumps, mixers, and air conditioning units.

As part of Schneider Electric’s Better World initiative, this contactor is designed for disassembly and environmentally friendly recycling processes, supporting sustainability goals. Its sturdy build offers excellent resistance to shock and vibration to maintain dependable operation in demanding industrial environments.

The TeSyS D contactors from Schneider Electric are ideal for integration into control systems and motor starter assemblies. They offer quick and simple setup without compromising on quality or compliance with international standards.

Operates with a coil voltage of 24V ac/dc for flexible control. Supports a contact current of 38A and contact voltage of 690V ac. Features 3 normally open (NO) poles and 2 auxiliary contacts with 1 NO and 1 NC configuration.

Compact dimensions with 92mm width, 85mm depth, and 45mm length, suitable for DIN rail mounting. Designed for temperatures ranging from -25°C to 60°C, ensuring reliable operation in varied environments. Complies with international standards including UL, RoHS, IEC, EAC, CSA, and CCC.

Equipped with IP20 finger-safe screw terminals and supports both North American and International terminal markings. Includes a bidirectional peak limiting diode suppressor to protect the coil, enhancing durability. Application categories include resistive loads (AC-1) and squirrel cage motors with operational breaking under AC-3.

This contactor is suitable for industrial automation, manufacturing, HVAC systems, water treatment, and general motor control installations. Browse similar Contactors and related Schneider Electric automation components at EnvMart for trusted quality and performance.
