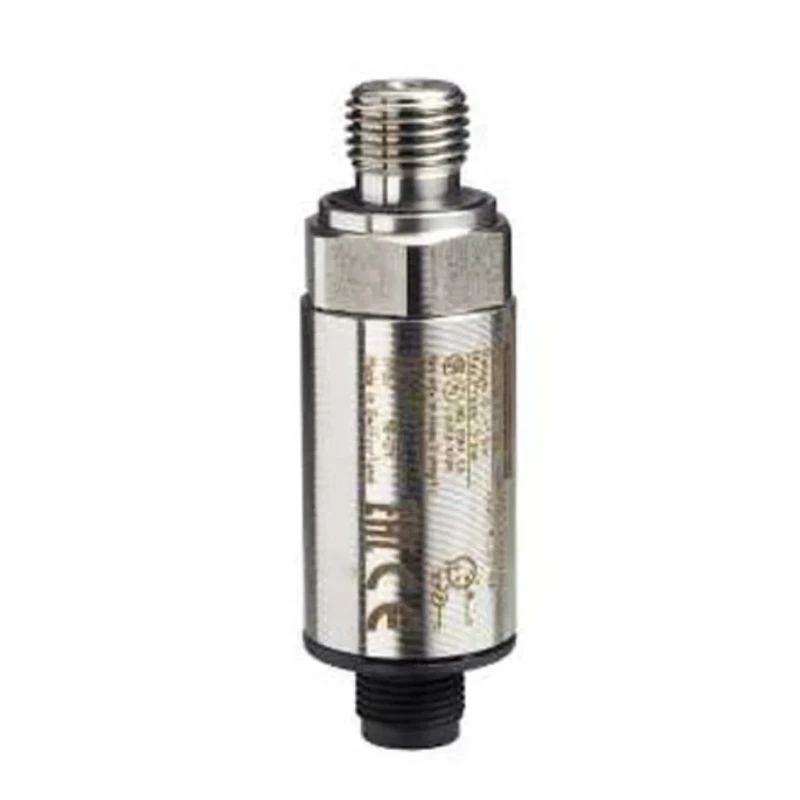

Telemecanique Sensors Differential Pressure Sensor Analogue Output 0 to 10 bar 8-33V Screw Mount IP66 IP67 XMLG010D21

Telemecanique Sensors XMLG010D21 is a high-precision differential pressure sensor with analogue output, engineered for demanding industrial applications. Featuring a robust ceramic pressure measuring cell, the sensor converts mechanical pressure deformation into an electrical signal via an integrated Wheatstone bridge and electronics.

This model measures pressure from 0 bar to 10 bar, suitable for fluids including hydraulic oil, corrosive fluids, air, and fresh water, ensuring versatile deployment across automation, manufacturing, and process control environments.

The sensor supports a supply voltage from 8V to 33V and provides analogue output signals through a DIN interface with a 3-pin M12 male connector, facilitating straightforward system integration.

The response time of 2 milliseconds enables rapid pressure detection enhancing real-time monitoring capabilities. It operates reliably in temperature extremes ranging from -15°C up to 85°C while housing materials of ceramic, FPM (Viton), and stainless steel type AISI 303 provide enhanced chemical resistance and mechanical strength.

Mounting is simple with screw fittings, and the IP66 and IP67 ratings ensure excellent protection against dust ingress and water immersion, making it suitable for harsh industrial conditions.

This Pressure Sensor complies with key international standards including CE, CSA C22.2 No 14, EN/IEC 61326-2-3, UL 508, and EAC certifications, attesting to its safety and quality.

Originating from Switzerland, it reflects robust engineering and quality manufacturing practices ideal for industrial, automation, hydraulic, and HVAC sectors. Features a ceramic pressure measuring cell for precise differential readings.

Supports analogue output with reliable electrical interface. Designed for use with hydraulic oil, corrosive fluids, air, and fresh water. Operates within a voltage range of 8V to 33V for flexible installations. Fast 2 ms response time for real-time pressure monitoring.

Constructed with durable ceramic, Viton, and stainless steel materials. Screw mount type and IP66/IP67 rated enclosure for industrial use. Certified to CE, CSA, UL, EN/IEC standards ensuring compliance. Manufactured in Switzerland for assured quality and reliability.

Explore the full range of Telemecanique Sensors products in our Electronics & Electricals Sensors category to meet diverse industrial automation and monitoring needs.
