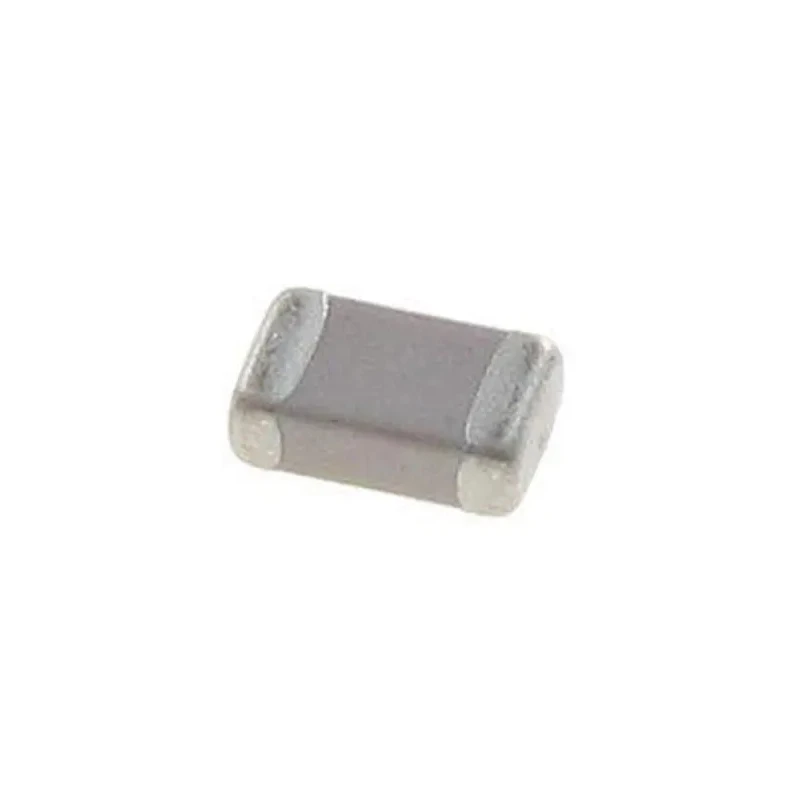

KYOCERA AVX 10 nF Multilayer Ceramic Capacitor 2kV DC ±10% Surface Mount 1825GC103KAT1A
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 2kV dc |
| Brand | KYOCERA AVX |
| Height | 3.4mm |
| Length | 4.6mm |
| Model | 1825GC103KAT1A |
| Packaging | Reel |
| Width | 6.3mm |
| Mount Type | Surface |
| Series | KGM |
| Termination Type | Surface Mount |
| Maximum Operating Temperature | 125°C |
| Tolerance | ±10 % |
| Capacitance | 10nF |
| Minimum Operating Temperature | -55°C |
| Package/Case | 1825 |
| Dielectric | X5R |
Key Features
- High voltage ceramic multilayer capacitor suitable for demanding applications.
- Compact 1825 size case with length 4.6 mm, width 6.3 mm, and height 3.4 mm.
- Dielectric type X5R, ensuring stable performance over temperature.
- Wide operating temperature range from -55°C to 125°C.
- Surface mount termination type for efficient PCB assembly.
- Offered in reel packaging for automated placement.
- Low leakage and ESR characteristics ideal for snubbers and DC blocking.
- Complies with industrial standards without automotive certification.
Product Description
KYOCERA AVX 1825GC103KAT1A is a 10 nF Multilayer Ceramic Capacitor designed for high-voltage applications, rated at 2kV DC with ±10% tolerance. This surface mount device uses the X5R dielectric, providing reliable and stable capacitance across a temperature range of -55°C to 125°C. The capacitor's compact 1825 case measures 4.6 mm in length, 6.3 mm in width, and 3.4 mm in height, making it suitable for dense PCB assemblies.
Ideal for use in high frequency converters, switch mode power supplies (SMPS), and as snubbers, these capacitors offer low leakage current and low equivalent series resistance (ESR), enhancing circuit efficiency and durability. The robust construction ensures stability under thermal cycling, with a maximum temperature gradient not exceeding 4°C per second during soldering.
The reel packaging format is optimized for automated manufacturing lines, facilitating high volume assembly processes. Although not certified for automotive standards, this capacitor meets stringent industrial operating criteria and is widely employed in electronic components requiring high voltage ratings and precision.
High voltage ceramic multilayer capacitor suitable for demanding applications. Compact 1825 size case with length 4.6 mm, width 6.3 mm, and height 3.4 mm. Dielectric type X5R, ensuring stable performance over temperature.
Wide operating temperature range from -55°C to 125°C. Surface mount termination type for efficient PCB assembly. Offered in reel packaging for automated placement. Low leakage and ESR characteristics ideal for snubbers and DC blocking.
Complies with industrial standards without automotive certification.
This KYOCERA AVX capacitor is a reliable choice for industrial, manufacturing, laboratory, and electronic assembly applications where high voltage, precision capacitance, and durable surface mount solutions are required. Browse similar capacitors in the MLCCs category for diverse specifications on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The KYOCERA AVX 10 nF Multilayer Ceramic Capacitor is rated for 2kV DC.
This model has a capacitance value of 10 nF.
The capacitor has a length of 4.6 mm, a width of 6.3 mm, and a height of 3.4 mm, conforming to the 1825 case size.
It uses an X5R dielectric, which provides stable performance over a wide temperature range.
The operating temperature range is from -55°C to 125°C.
The tolerance for this model is ±10%.
It is offered in reel packaging, which is optimized for automated placement in manufacturing processes.
This model features a surface mount termination type, suitable for efficient PCB assembly.
This capacitor exhibits low leakage current and low equivalent series resistance (ESR), enhancing circuit efficiency.
It is ideal for use in high frequency converters, switch mode power supplies (SMPS), and as snubbers.
The maximum temperature gradient during soldering should not exceed 4°C per second.
No, this capacitor complies with industrial standards but is not certified for automotive applications.
