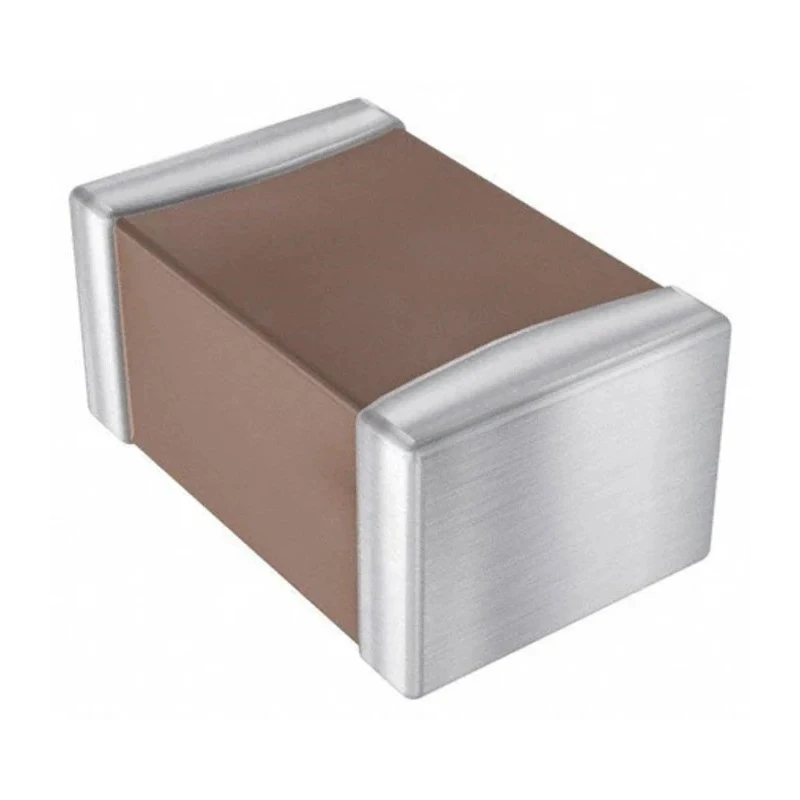

KYOCERA AVX 2.2 nF Multilayer Ceramic Capacitor 50V dc ±5 % Surface Mount 0805 08055C222JAT2A

KYOCERA AVX model 08055C222JAT2A is a Multilayer Ceramic Capacitor (MLCC) featuring 2.2 nF capacitance and a voltage rating of 50V dc, designed specifically for surface mount technology (SMT) in electronic components.

This capacitor utilizes an X5R dielectric, enabling a stable capacitance within the temperature range of -55°C to 125°C, making it ideal for industrial, consumer electronics, and telecommunications applications where temperature stability is crucial.

The device is housed in a compact 0805 package with precise dimensions of 2.01mm length, 1.25mm width, and 0.94mm height, ensuring space-efficient PCB layouts. It belongs to the KGM series, which is well-regarded for reliability and performance consistency across a wide range of electronic assemblies.

Terminations are nickel barrier types covered with plated tin (NiSn), promoting excellent solderability and mechanical robustness during reflow soldering. The capacitor is supplied on a reel, facilitating automated pick-and-place operations to improve manufacturing throughput.

Features include a capacitance tolerance of ±5 % and Class II suppression characteristics, suitable for decoupling, filtering, and noise reduction in various electronic circuits. Compact 0805 surface mount package ensures easy PCB integration.

X5R dielectric material offers temperature stability from -55°C to 125°C. Voltage rating of 50V dc supports a wide range of electronic applications. High reliability KGM series suitable for industrial and consumer electronics.

Termination with nickel barrier and tin plating for soldering durability. Reel packaging designed for automated assembly lines. Class II capacitor suitable for filtering and decoupling.

This MLCC is widely used in industrial equipment, telecommunications, automotive electronics (non-automotive certified), consumer electronics, and other applications requiring stable, reliable capacitors capable of high volumetric efficiency.
