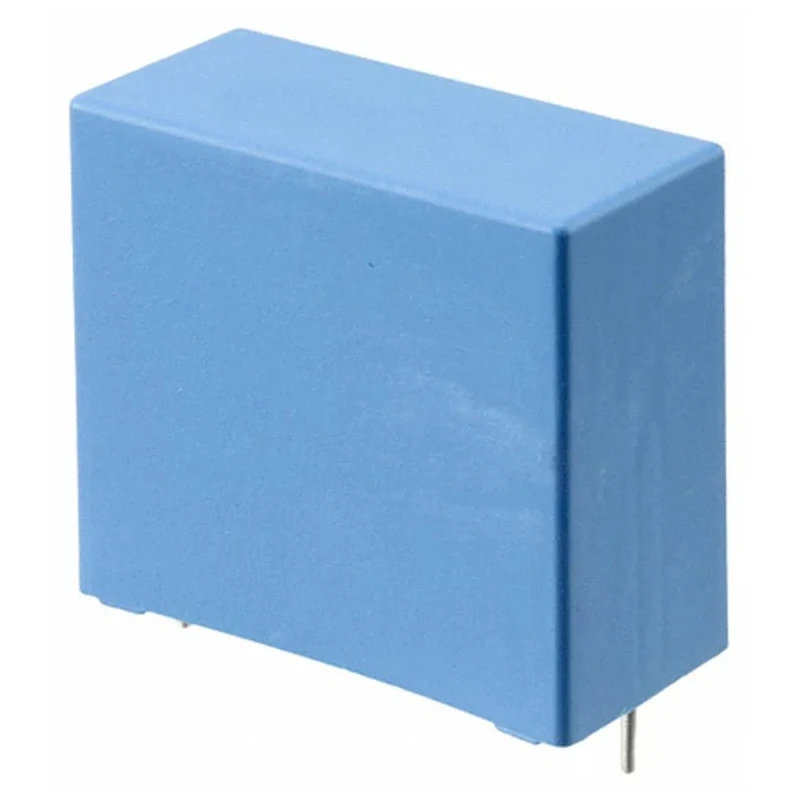

KEMET Metallized Polypropylene Capacitor 100 nF ±5% 2 kV DC 180 V AC Through Hole PHE450

Name: KEMET Metallized Polypropylene Capacitor 100 nF ±5% 2 kV DC 180 V AC Through Hole PHE450
Brand: KEMET
SKU: 202728
Price: 1.81 USD
Availability: InStock



Category Film Capacitors Brand KEMET Condition New

Specifications

Country of Origin	India
Brand	KEMET
Height	23mm
Length	26mm
Model	PHE450
Packaging	Tape & Reel
Width	13.5mm
Mount Type	Through Hole
Series	PHE450
Maximum Operating Temperature	105°C
Tolerance	±5 %
Capacitance	100nF
Minimum Operating Temperature	-55°C
Terminal type	Radial
Dissipation Factor	0.0003%
Rated Voltage	250 V dc to 3000 V dc
Lead Length	6mm
Standards/Approvals	RoHS
Pin Count	2
Rated AC Voltage	180V ac
Rated DC Voltage	2kV dc
Lead Pitch	22.5mm
Lead Diameter	0.8mm
Capacitance tolerance	±5%, other tolerances on request
Lead Spacing	7.5 mm to 37.5 mm

Key Features

Double metallized polypropylene film construction ensures high reliability.
Encapsulated in self-extinguishing resin meeting UL94 V-0 standards.
Suitable for high current stress applications including switch mode power supplies.
Lead pitch of 22.5 mm and radial terminal type for easy through hole mounting.
Wide operating temperature range from -55°C to 105°C.
Low dissipation factor of 0.0003% for efficient performance.
Capacitance tolerance of ±5% with other tolerances available on request.
Packaging in tape & reel format facilitates automated assembly.

Product Description

KEMET PHE450 polypropylene capacitor series features metallized polypropylene film capacitors designed for high performance in electronic applications. Model PHE450 delivers a capacitance of 100 nF with a tolerance of ±5%, rated for a DC voltage of 2 kV and an AC voltage of 180 V. It is configured for through hole mounting with radial leads, featuring a lead pitch of 22.5 mm and lead length of 6 mm.

The capacitor is encapsulated in a self-extinguishing resin box conforming to UL 94 V-0 standards providing enhanced safety and durability. Its low dissipation factor of 0.0003% ensures minimal energy loss, making it suitable for pulse and snubber circuits commonly found in switch mode power supplies and deflection circuits for televisions.

Operating reliably in temperatures ranging from -55°C to 105°C, this capacitor is ideal for demanding industrial and commercial electronics environments. The radial terminal type and pin count of two enable straightforward PCB integration. Packaging in tape & reel format supports automated high-volume assembly processes.

Additional features include compliance with the RoHS directive, contributing to reduced environmental impact. The PHE450 series covers rated voltages from 250 V DC up to 3000 V DC and AC ratings from 180 V to 1000 V, providing versatility for various electronic design requirements.

Double metallised polypropylene film Pulse capacitor. Encapsulated in self-extinguishing material meeting UL 94 V-0 requirements. Rated voltage ranges from 250 V DC to 3000 V DC and 180 to 1000 V AC. Suitable for pulse, snubber, and protection circuit applications.

Packaging in tape & reel supports automated PCB assembly. Operating temperature range from -55°C to 105°C. Low dissipation factor ensures efficient energy use. Radial lead type with 22.5 mm lead pitch.

This capacitor is extensively used in industrial, laboratory, automotive electronics, consumer electronics manufacturing, and power supply systems. Its robust construction and technical specifications make it suitable for high current stress circuits and environments demanding high reliability and safety.
