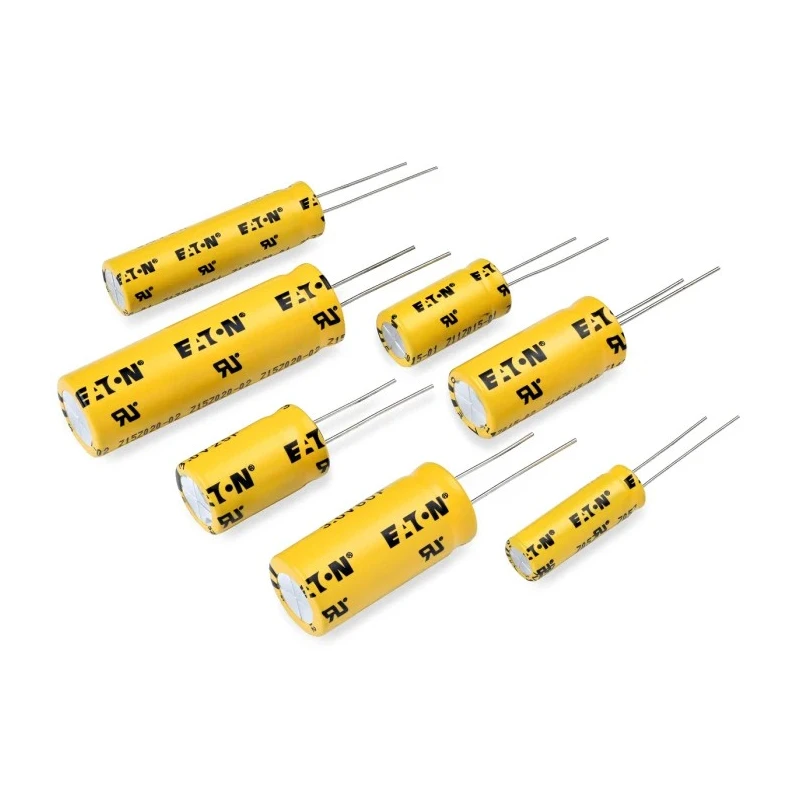

Eaton 6 F Electric Double Layer Supercapacitor, 3 V dc, -10 to 30 % Tolerance, Through Hole TV1020-3R0605-R

Eaton TV1020-3R0605-R is a 6 F electric double layer supercapacitor designed for high energy and power density applications. Operating at 3 V dc with a through-hole mount, this supercapacitor provides reliable capacitance performance with a tolerance of -10 to 30 percent. Its ultra-low equivalent series resistance of 0.035 ohms ensures efficient charge and discharge cycles, ideal for high-power density needs.

This model supports a wide temperature range from -40°C to 65°C and has a lifetime of 1000 hours. Featuring radial terminal pins of 0.6 mm diameter spaced at 5 mm, it is optimized for PCB integration requiring through-hole components. The supercapacitor complies with IEC 62391-1 and RoHS standards making it suitable for industrial applications.

Commonly applied in electric, gas, and water smart meters, RF radio pulse power, storage servers, industrial backup systems, and solar energy capture solutions, the TV1020-3R0605-R ensures safe shutdown during power loss and peak power shaving. The capacitor's polar design and compact dimensions (10.5 mm diameter and 22.3 mm depth) facilitate easy installation in various electronic devices.

Features electric double layer capacitor technology for high energy density. Offers capacitance tolerance between -10 to 30 percent. Operates reliably within -40°C to 65°C temperature range. Has a low equivalent series resistance of 0.035 ohms for efficient high-power cycling.

Radial terminal design with 0.6 mm lead diameter and 5 mm lead pitch. Complies with IEC 62391-1 and RoHS standards. Service lifetime rated at 1000 hours ensuring durability. Ideal for smart meters, RF applications, industrial backup, and solar capture.

Compact through-hole mount with 2 pin count.

This Eaton Supercapacitor enhances power reliability and energy storage density in electronic components used in industrial, commercial, telecom, and HVAC systems. Explore more in our Electronics Components category for compatible and complementary products.
