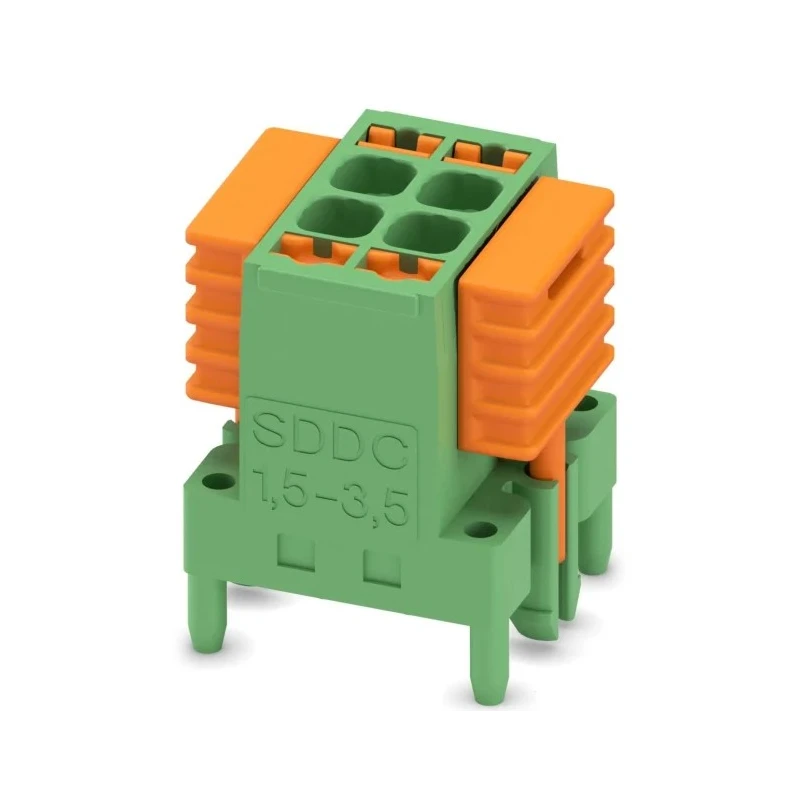

Phoenix Contact PCB Terminal Block SDDC 1.5/2-PV-3.5 Series, 2-Contact, 3.5 mm Pitch, 2 Row, 160V, 8A, Polyamide 1848642
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 160V |
| Brand | Phoenix Contact |
| Colour | Green |
| Orientation | Straight |
| Current | 8A |
| Length | 13.5mm |
| Model | 1848642 |
| Depth | 17.6mm |
| Width | 14.3mm |
| Housing Material | Polyamide |
| Series | SDDC 1.5/2-PV-3.5 |
| Number of Rows | 2 |
| Pitch | 3.5mm |
| Number of Contacts | 2 |
| Connector Gender | Female |
| Minimum Wire Size mm² | 0.2mm² |
| Maximum Wire Size mm² | 1.5mm² |
| Minimum Wire Size AWG | 24AWG |
| Maximum Wire Size AWG | 16AWG |
| Wire Connection Method | Push-in Spring |
Key Features
- The push-in spring wire connection method enables tool-free, screwless installation for time savings.
- Polyamide housing ensures durable insulation and mechanical stability.
- Supports wire sizes from 0.2 to 1.5 mm² (24 to 16 AWG) with an 8A current rating.
- Compact dimensions include a length of 13.5 mm, width of 14.3 mm, and depth of 17.6 mm.
- Direct plug-in SKEDD technology provides vibration-resistant, gas-tight PCB contacts without soldering or additional tooling.
- Green color coding and locking latches enhance identification and secure mounting on PCBs.
- Ideal for use in industrial electronics, automotive, consumer electronics, machine construction, control cabinets, power tools, solar power systems, and medical devices.
Product Description
Phoenix Contact 1848642 PCB Terminal Block from the SDDC 1.5/2-PV-3.5 Series features a double row, 2-contact configuration with 3.5 mm pitch, operating at 160V and rated for 8A current. The terminal block uses a polyamide housing offering strong mechanical and insulation properties, making it reliable for various industrial and electronic applications.
Incorporating the latest SKEDD direct plug-in technology, these terminal blocks connect directly to PCB contacts with gas-tight connections created by spring force without requiring plug and header combinations or soldering. This facilitates fast, tool-free installation and maintenance.
The green-colored terminal block supports wire sizes from 0.2 mm² (24 AWG) up to 1.5 mm² (16 AWG) using screwless push-in spring wire terminations, which reduces wiring time and avoids extra tooling. Locking latches on each side enhance vibration resistance, ensuring a secure connection to the PCB.
Compact with dimensions of 13.5 mm length, 14.3 mm width, and 17.6 mm depth, the block suits high-density PCB applications in automotive, industrial electronics, consumer electronics, machine construction, control cabinets, power tools, white goods, solar power, and medical system industries.
The push-in spring wire connection method enables tool-free, screwless installation for time savings. Polyamide housing ensures durable insulation and mechanical stability. Supports wire sizes from 0.2 to 1.5 mm² (24 to 16 AWG) with an 8A current rating.
Compact dimensions include a length of 13.5 mm, width of 14.3 mm, and depth of 17.6 mm. Direct plug-in SKEDD technology provides vibration-resistant, gas-tight PCB contacts without soldering or additional tooling. Green color coding and locking latches enhance identification and secure mounting on PCBs.
Ideal for use in industrial electronics, automotive, consumer electronics, machine construction, control cabinets, power tools, solar power systems, and medical devices. Explore more PCB and Pluggable Terminal Blocks from Phoenix Contact and discover comprehensive solutions for your industrial and electronic connector requirements at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It has a voltage rating of 160V.
The maximum current rating is 8A.
It supports wire sizes ranging from 0.2 mm² (24 AWG) to 1.5 mm² (16 AWG).
The dimensions are 13.5 mm in length, 14.3 mm in width, and 17.6 mm in depth.
This model utilizes a push-in spring wire connection method for tool-free, screwless installation.
It features a 2-contact configuration.
The housing is made of polyamide, providing mechanical stability and insulation.
The pitch size is 3.5 mm.
The orientation is straight.
It is suitable for use in industrial electronics, automotive, consumer electronics, machine construction, control cabinets, power tools, solar power systems, and medical devices.
Yes, its compact dimensions make it suitable for high-density PCB applications.
It incorporates SKEDD direct plug-in technology, allowing for gas-tight connections without soldering.
