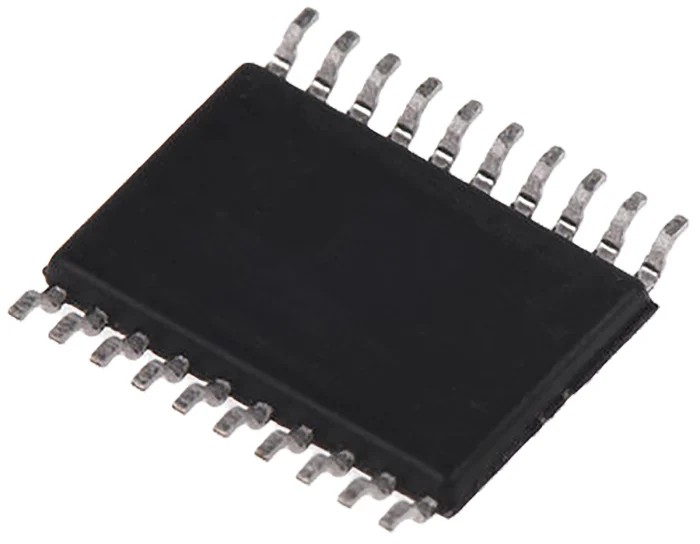

Texas Instruments Transceiver IC 1 Driver 4 Receivers LVDS LVTTL Surface Mount TSSOP 20-Pin SN65LVDT14PW
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 1.15mm |
| Length | 6.5mm |
| Model | SN65LVDT14PW |
| Mount Type | Surface |
| Output type | LVTTL, LVDS |
| Series | SN65LVDT14 |
| Input Type | LVDS, LVTTL |
| Maximum Operating Temperature | 85°C |
| Package Type | TSSOP |
| Sub Type | Transceiver |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Pin Count | 20 |
| Number of Elements per Chip | 4 |
| Maximum Supply Voltage | 3.6V |
| Minimum Supply Voltage | 3V |
| Number of Drivers | 1 |
| Number of Receivers | 4 |
| Transmission Data Rate | 125Mbps |
| Differential Input High Threshold Voltage | 100mV |
| Differential Input Low Threshold Voltage | -100mV |
Key Features
- Supports transmission data rate up to 125 Mbps for efficient data communication.
- Low Voltage Differential Signaling (LVDS) input and output types ensure noise immunity.
- Surface mount type with TSSOP 20-pin package for compact PCB integration.
- Operates within supply voltage range of 3 V to 3.6 V for stable performance.
- Wide operating temperature range from -40°C to 85°C suitable for industrial environments.
- Includes Electrostatic Discharge (ESD) protection to enhance device durability.
- Compact dimensions with 6.5 mm length and 1.15 mm height for space-saving assembly.
- Compliant with RoHS standards ensuring environmentally friendly manufacturing.
Product Description
Texas Instruments SN65LVDT14PW is a high-performance transceiver IC featuring 1 LVDS driver and 4 LVTTL receivers packaged in a surface mount 20-pin TSSOP. It supports data transmission rates up to 125 Mbps using Low Voltage Differential Signaling (LVDS) and LVTTL inputs and outputs, making it ideal for fast and noise-resistant communication links.
This device operates with a minimum supply voltage of 3 V and a maximum supply voltage of 3.6 V, ensuring stable function across varied power conditions. Its operational temperature range spans from -40°C to 85°C, catering to demanding industrial and commercial environments.
The SN65LVDT14PW includes differential input high and low threshold voltages of 100 mV and -100 mV respectively, further enhancing signal integrity. Its compact dimensions (6.5 mm length and 1.15 mm height) allow for efficient use of PCB space in densely packed systems.
The transceiver is compliant with RoHS environmental regulations and includes built-in ESD protection for device reliability and longevity. It is surface mount compatible, packaged in a Thin Shrink Small Outline Package (TSSOP) with 20 pins, easing assembly in modern electronics manufacturing.
This transceiver is suitable for applications such as Firewire, SATA, and SCSI interface implementations where reliable, high-speed data exchange is required. It caters to interface IC needs in industrial, telecommunications, computing, and data transfer equipment.
Supports transmission data rate up to 125 Mbps for efficient data communication. Low Voltage Differential Signaling (LVDS) input and output types ensure noise immunity. Surface mount type with TSSOP 20-pin package for compact PCB integration.
Operates within supply voltage range of 3 V to 3.6 V for stable performance. Wide operating temperature range from -40°C to 85°C suitable for industrial environments. Includes Electrostatic Discharge (ESD) protection to enhance device durability.
Compact dimensions with 6.5 mm length and 1.15 mm height for space-saving assembly. Compliant with RoHS standards ensuring environmentally friendly manufacturing. Designed for use in interface applications requiring fast LVDS and LVTTL communication.
Explore more semiconductor interface ICs from Texas Instruments and find precision components for your electronic design needs at EnvMart.
Explore more products in our LVDS Interface Ics category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The SN65LVDT14PW supports a maximum data transmission rate of 125 Mbps, facilitating efficient data communication.
This model features Low Voltage Differential Signaling (LVDS) and LVTTL as its input and output types, ensuring noise immunity during data transmission.
It operates within a supply voltage range of 3 V to 3.6 V, providing stable performance across varying power conditions.
The operational temperature range for this unit spans from -40°C to 85°C, making it suitable for industrial environments.
The SN65LVDT14PW includes 1 LVDS driver and 4 LVTTL receivers, allowing for versatile data handling.
This model has compact dimensions of 6.5 mm in length and 1.15 mm in height, which aids in space-saving assembly on PCBs.
It is packaged in a Thin Shrink Small Outline Package (TSSOP) with 20 pins, suitable for surface mount applications.
Yes, it includes Electrostatic Discharge (ESD) protection to enhance device reliability and durability.
This transceiver is compliant with RoHS standards, ensuring environmentally friendly manufacturing practices.
The differential input high threshold voltage is 100 mV, and the low threshold voltage is -100 mV, which helps maintain signal integrity.
It is suitable for applications such as Firewire, SATA, and SCSI interface implementations, where reliable high-speed data exchange is required.
