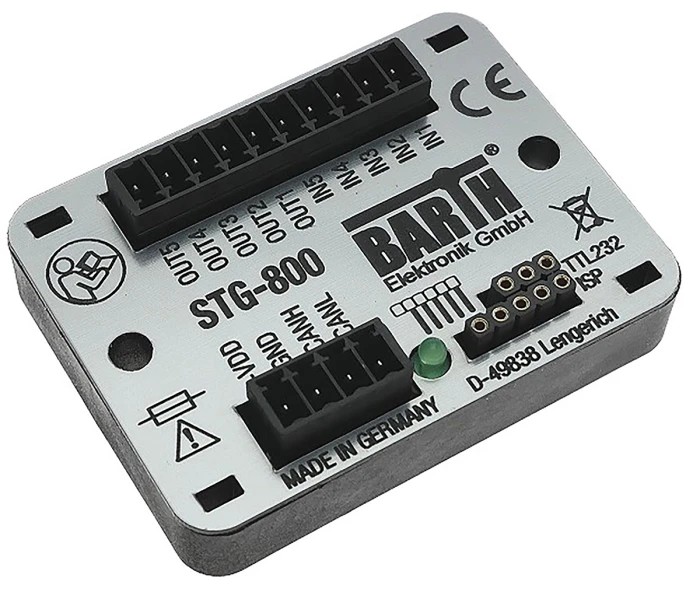

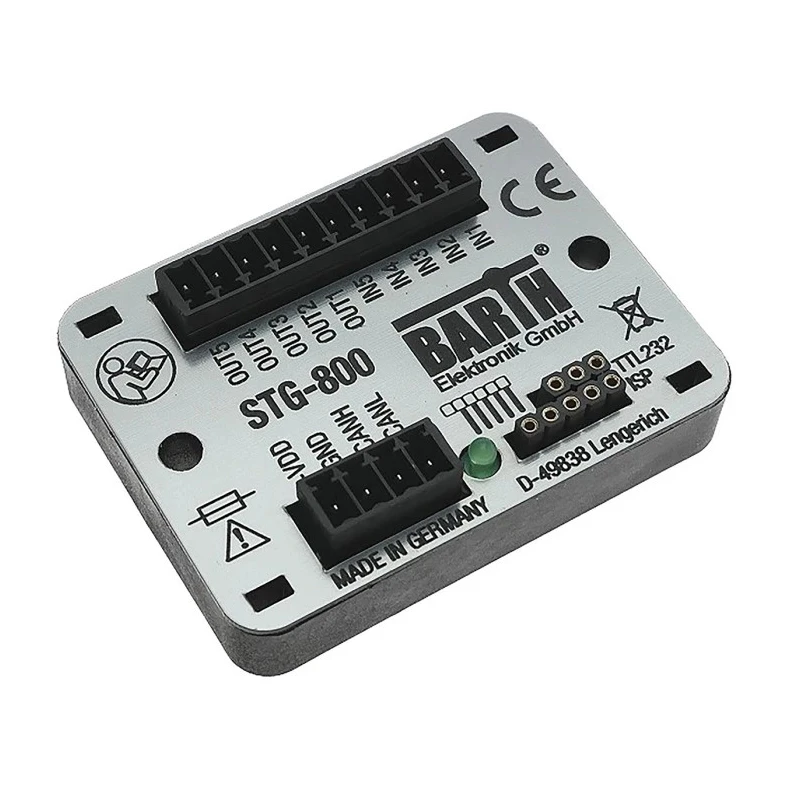

BARTH lococube mini-PLC Series PLC I/O Module 5-Input Analogue Digital Input 9 Outputs Digital PWM Solid State 0850-0800

BARTH 0850-0800 lococube mini-PLC Series PLC I/O Module is a high-performance logic module featuring a 32-bit ARM Cortex core processor. It delivers excellent graphical programming capability with low current consumption and a compact form factor designed for panel mount installation.

The device integrates 5 input channels supporting both analogue and digital signals, paired with 9 outputs including digital, PWM, and solid-state types, enabling extensive control options. Its automotive-qualified CAN2.0A/B/CANopen communication port facilitates reliable operation within noisy environments and seamless integration with various network components.

Operating temperature ranges from -40°C to 70°C and a rugged sealed casing provide vibration resistance and suitability for challenging industrial conditions. The module includes a battery backup and display, enhancing system reliability and operational monitoring. It is programmed via miCon-L software, supporting open source languages such as C for straightforward development.

This logic module’s compact dimensions (60mm length × 45mm width × 11mm depth) make it ideal for space-constrained installations. Power output capacities to 1.5A on solid-state outputs ensure effective driving of connected devices. Designed to cover diverse applications including industrial automation, automotive technology, maritime technology, and technical education, it is a versatile control solution.

Additional features include comprehensive fail-safe functions and low power consumption across a supply voltage range of 7VDC to 32VDC, ensuring broad operational compatibility. The product complies with standards 2004/108/EC, 2004/108/EG, and 2014/30/EU, guaranteeing conformity with European electromagnetic compatibility directives.

Equipped with a powerful 32-bit ARM Cortex core for advanced processing. Supports open source programming using C and miCon-L languages. Wide operating temperature range of -40°C to 70°C for harsh environments. Automotive-qualified CANopen interface for robust communication.

Includes battery backup and an integrated display. Compact panel mount form factor measuring 60mm x 45mm x 11mm. Output current of 1.5A on solid state power outputs. Wide supply voltage range from 7VDC to 32VDC. Rugged sealing and fail-safe features ensure vibration resistance.

Ideal for industrial, automotive, maritime, and educational applications. Explore more advanced PLC I/O Modules and industrial automation components available on EnvMart for your sophisticated control system needs.
