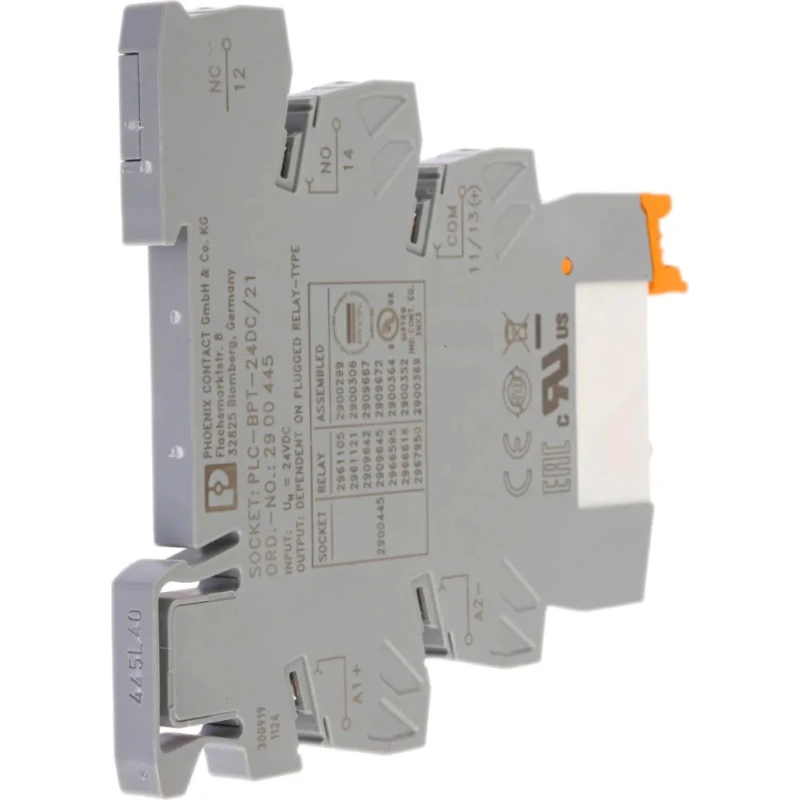

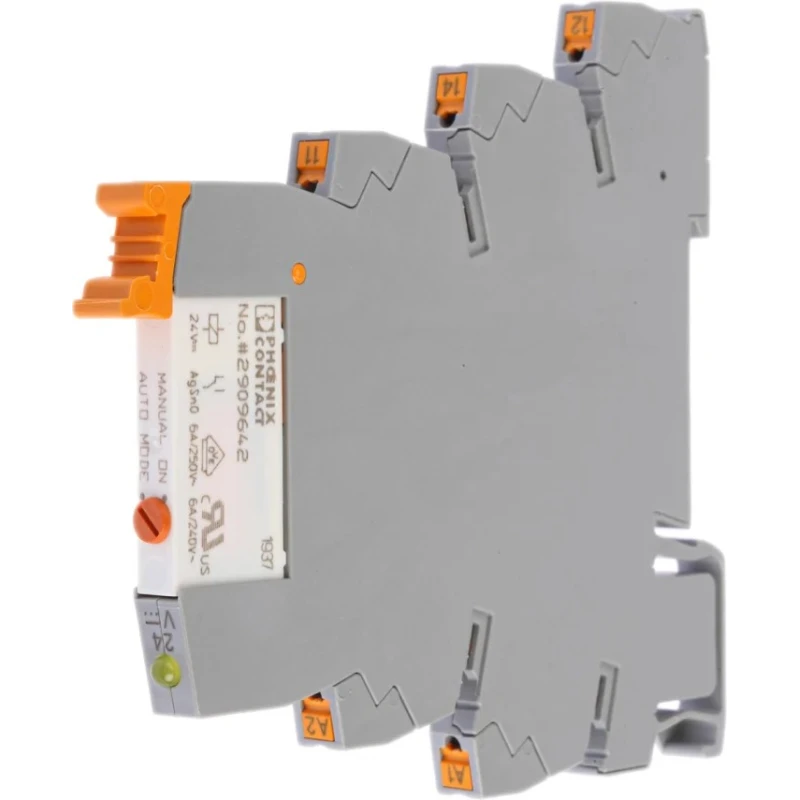

Phoenix Contact Electromechanical Interface Relay DIN Rail Mount 24V DC Coil SPDT 15.3mA 2909667
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Phoenix Contact |
| Height | 80mm |
| Length | 94mm |
| Model | 2909667 |
| Width | 6.2mm |
| Mount Type | DIN Rail |
| Contact Material | Silver Alloy |
| Series | PLC-RPT- 24DC/21/MS |
| Maximum Operating Temperature | 60°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 10mA |
| Terminal type | Push-in |
| Standards/Approvals | IEC 60664, cULus, UKCA, RoHS, IEC 60664A, EAC, DNV GL, DIN VDE 0110, CE, IEC 60255/DIN VDE 0435 |
| Coil Voltage | 24V dc |
| Coil Current | 15.3mA |
| Switching DC Voltage | 250V dc |
| Switching AC Voltage | 250V ac |
Key Features
- Features a plug-in miniature relay suitable for compact installations.
- Coil operates at 24 V DC with a coil current of 15.3 mA for efficient power usage.
- Single pole double throw (SPDT) contacts with silver alloy material ensure reliable switching.
- Rated switching current of 10 mA, suitable for signal-level applications.
- Durable DIN rail mount type with push-in terminal connection for fast and secure wiring.
- Operating temperature range from -40°C to +60°C ideal for harsh industrial environments.
- Compact dimensions of 94 mm length, 80 mm height, and 6.2 mm width save panel space.
- Designed with protective circuitry offering polarity and surge protection.
Product Description
Phoenix Contact 2909667 Electromechanical Interface Relay module provides reliable switching control for Programmable Logic Controllers (PLCs) and industrial automation systems. This DIN rail mount relay features a 24 V DC coil voltage with low coil current of 15.3 mA, facilitating energy efficient operation.
The relay incorporates a single pole, double throw (SPDT) contact configuration using silver alloy contacts rated for switching currents up to 10 mA at both 250 V DC and 250 V AC ratings. Its miniature plug-in design enables quick installation and easy maintenance, optimized for compact control panel layouts.
Equipped with push-in terminals, the wiring process is fast, secure, and error-resistant. The device withstands vibration and shock, supported by robust construction with a sealed, wash-proof, and moisture-resistant housing that enhances operational reliability in challenging environments. Protective features include polarity protection and surge protection circuits to safeguard against electrical faults.
The relay operates effectively over a broad temperature range of -40°C to +60°C, making it suitable for various industrial, manufacturing, HVAC, and control system applications. With compact dimensions (94 mm length, 80 mm height, 6.2 mm width), it saves valuable panel space without compromising functionality.
Plug-in miniature relay for flexible automation system integration. Energy-efficient 24 V DC coil with 15.3 mA coil current. SPDT contacts with silver alloy material for longevity and reliable switching. Push-in terminal technology ensures quick and secure wiring.
Broad operating temperature range of -40°C to 60°C for harsh environments. Sealed, moisture and wash-proof housing for enhanced protection. Compliance with multiple international safety and performance standards. Suitable for industrial, automation, manufacturing, and HVAC applications.
This Phoenix Contact electromechanical interface relay model 2909667 offers ideal performance for controlling small signal loads and isolating PLC I/O points. Explore more Interface Relays and industrial automation controls in EnvMart’s comprehensive catalog, ensuring you find the right component for your system integration needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay operates with a coil voltage of 24 V DC.
It features single pole double throw (SPDT) contacts made from silver alloy material.
The maximum switching current is rated at 10 mA.
The relay has compact dimensions of 94 mm in length, 80 mm in height, and 6.2 mm in width.
It operates effectively within a temperature range of -40°C to +60°C.
This model uses push-in terminal connections for fast and secure wiring.
It complies with several standards including IEC 60664, cULus, UKCA, RoHS, and CE.
The coil current is 15.3 mA, which facilitates energy-efficient operation.
The relay is rated for switching voltages of 250 V DC and 250 V AC.
Yes, it is designed to withstand harsh environments with a sealed, moisture and wash-proof housing.
This relay is suitable for industrial automation, manufacturing, HVAC, and control system applications.
The relay is manufactured in Germany.
