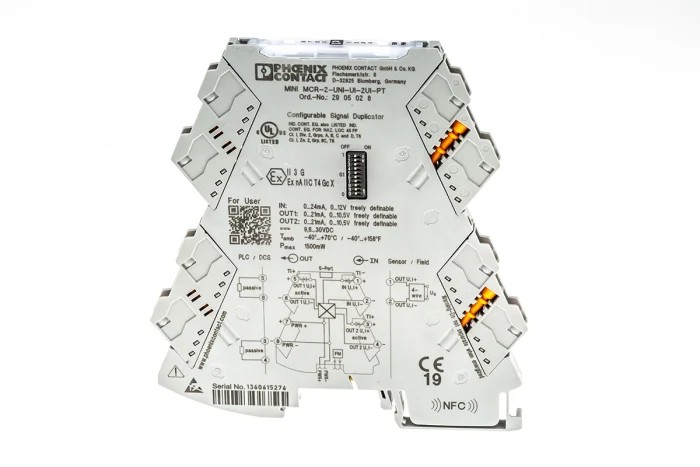

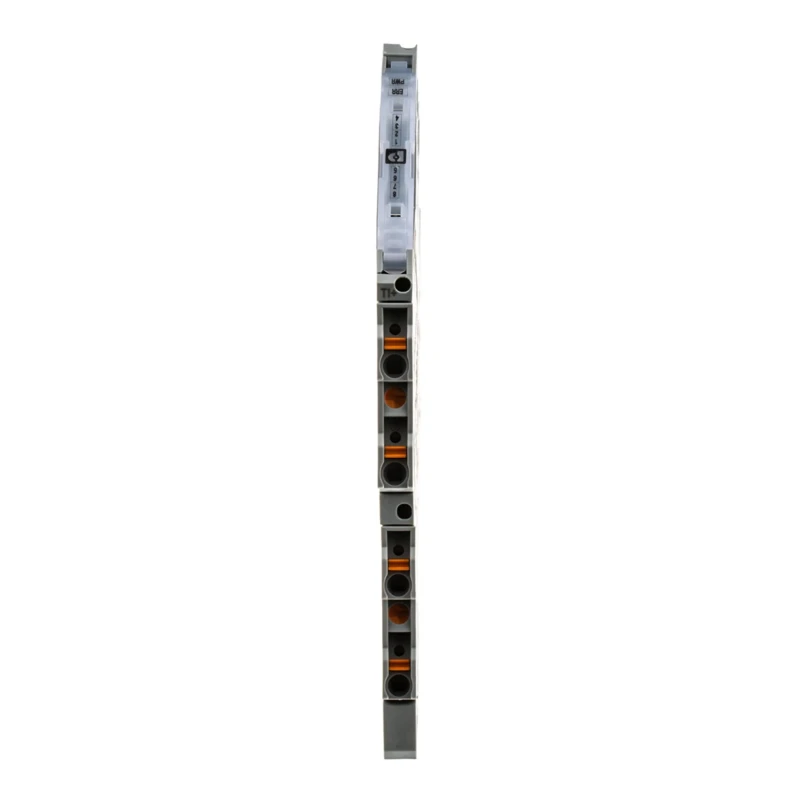

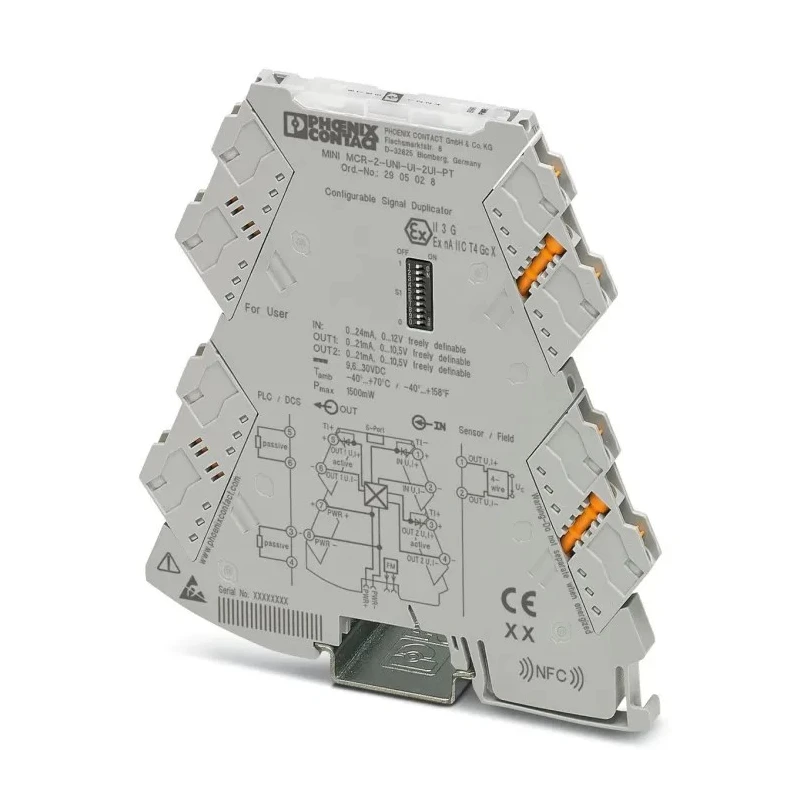

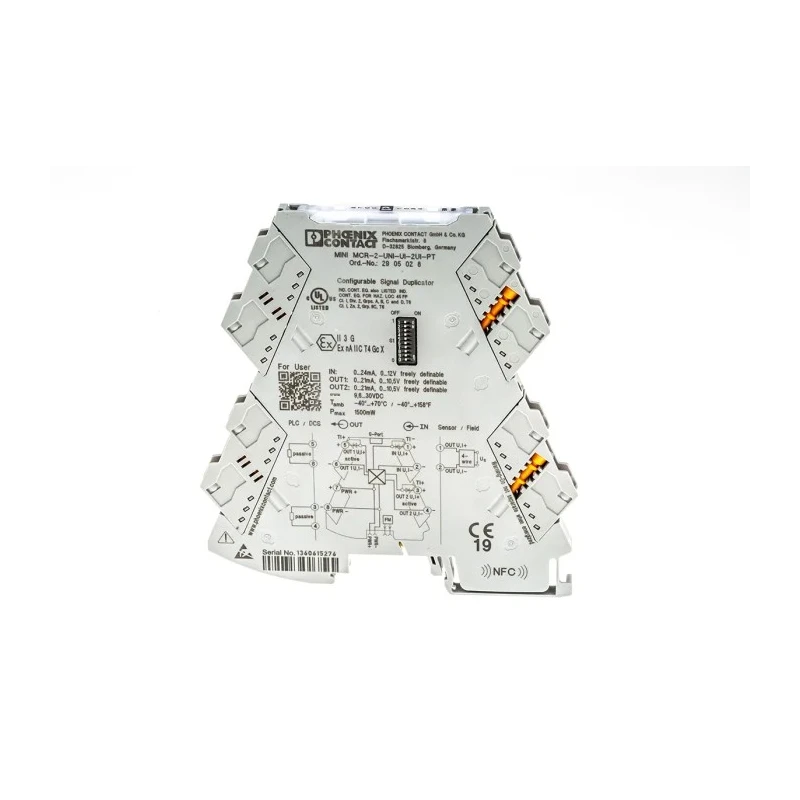

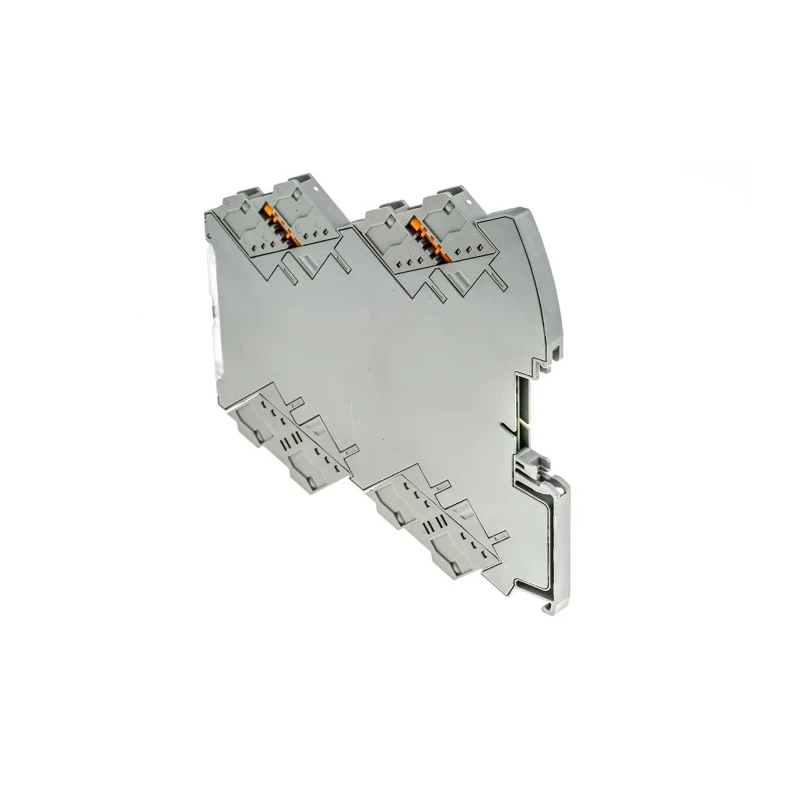

Phoenix Contact MINI MCR Series Signal Conditioner Current/Voltage Input Output 24V DC Supply ATEX 2905028
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | Input, Current/Voltage Output, 24V dc Supply, ATEX RS Stock No |
| Brand | Phoenix Contact |
| Model | 2905028 |
| IP Rating | IP20 |
| Mount Type | DIN Rail |
| Series | MINI MCR |
| Maximum Operating Temperature | 70°C |
| Minimum Operating Temperature | -40°C |
| Interfaces | USB Programmer (S-PORT) - 801-6107 |
| Terminal type | Push-in |
| Number Of Channels | 2 |
| Output Range | 0 → 10.5 V, 0 → 21 mA |
| Input Range | 0 → 24 mA, 0 → 12 V |
| Supply Voltage | 24V dc |
| Hazardous Area Certification | ATEX |
| Input Signal Type | Current/Voltage |
Key Features
- Input signal types include current and voltage for versatile signal conditioning.
- Output signals can be current or voltage with ranges adjustable up to 10.5 V and 21 mA.
- Operates reliably between -40°C and +70°C temperature range.
- Mounts easily on standard DIN rails with push-in terminal connections for tool-free installation.
- Equipped with reinforced isolation and certified for ATEX hazardous environments.
- Compact MINI MCR series design enables space-saving integration in control panels.
- Supports Near-Field Communication (NFC) protocols and features a user-friendly disconnect function.
- Conforms to multiple international standards including IECEX, UL, CE, and EN series.
Product Description
Phoenix Contact 2905028 MINI MCR Series Signal Conditioner offers high-performance electrical isolation and duplication of analogue current and voltage signals. With a compact design and 24V DC supply voltage, this device provides precise signal conditioning tailored for demanding industrial applications including hazardous ATEX zones.
The unit features push-in terminal technology enabling quick, tool-free wiring, and a disconnect function for easy servicing. Its reinforced isolation aligns with IEC 61010-1, ensuring safety and reliability in measurement, control, and automation systems.
Operating across a temperature range from -40°C to +70°C, the signal conditioner is designed for installation on DIN rails, facilitating neat and cost-effective integration in industrial panels. It supports both current inputs (0 to 24 mA) and voltage inputs (0 to 12 V), with corresponding outputs up to 21 mA and 10.5 V respectively.
The product is certified for hazardous locations with ATEX approval and meets a wide array of international standards including IECEX, UL, CE, and EN antenna immunity and emission regulations. The dual-channel MINI MCR series model enables flexible signal duplications and conditioning, suitable for electrical isolation, conversion, amplification, and filtering of standard signals.
Input and output signal ranges are freely adjustable to meet varied application requirements. ATEX Zone-2 installation approval ensures safe operation in hazardous environments. Reinforced isolation protects operators and equipment by preventing electrical shock hazards.
Supply voltage range from 9.6 V DC up to 30 V DC provides versatility in installations. Convenient configuration via DIP switch or S-PORT interface supports on-site settings.
Ideal for industrial automation, electrical measurement, control panels, and hazardous area applications, the Phoenix Contact MINI MCR 2905028 signal conditioner combines compactness with robust performance. Package contents include the Signal Conditioner module with standard accessories for DIN rail mounting.
Explore the wide range of Phoenix Contact products and related signal conditioning solutions at EnvMart for industrial automation and control needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The input range for this model is 0 to 24 mA for current inputs and 0 to 12 V for voltage inputs.
It supports output ranges of 0 to 10.5 V and 0 to 21 mA.
This signal conditioner operates reliably between -40°C and +70°C.
It mounts easily on standard DIN rails and features push-in terminal connections for tool-free installation.
It is certified for hazardous areas with ATEX approval and conforms to multiple international standards including IECEX, UL, and CE.
It conditions both current and voltage input signals, providing versatility for various applications.
Yes, it supports Near-Field Communication (NFC) protocols.
The supply voltage for this unit is 24V DC.
This model features two channels for signal duplication and conditioning.
The IP rating of this unit is IP20, indicating it is suitable for indoor use.
It uses push-in terminal technology for quick and tool-free wiring.
The country of origin for this signal conditioner is Germany.
