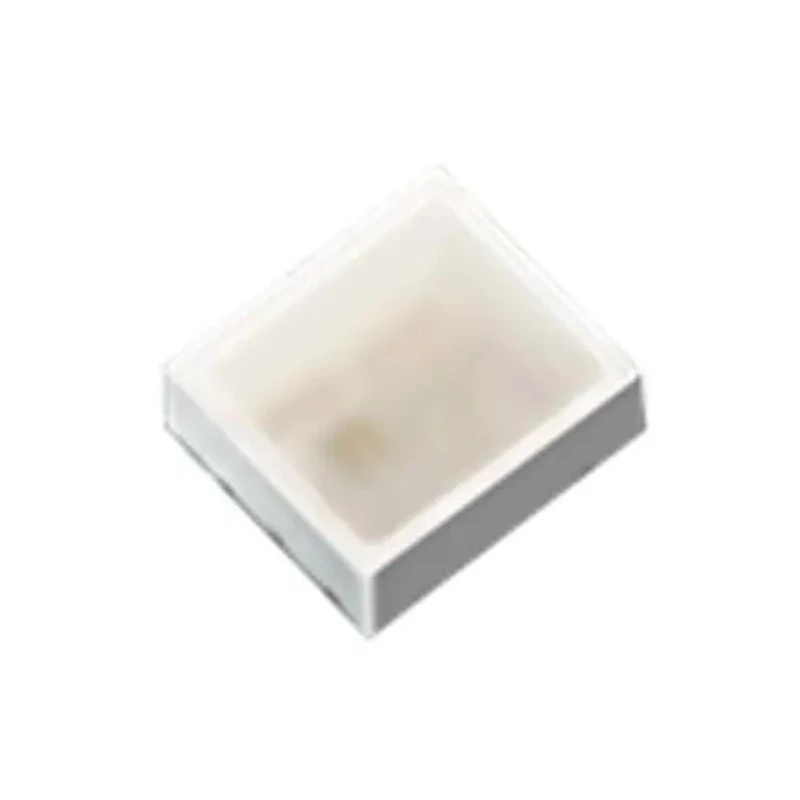

ROHM 2.1 V RGB High Brightness 1816 Surface Mount LED Chip MSL0402RGBU1

ROHM MSL0402RGBU1 is a high brightness RGB (Red, Green, Blue) LED chip designed for compact and efficient surface mount technology (SMT) applications. Operating at a forward voltage of 2.1 V and a maximum forward current of 20 mA, this LED ensures highly efficient light emission with a power dissipation ceiling of 400 mW.

The device integrates three LEDs within a small 1.8 × 1.6 mm rectangular (1816) package with a total of 6 pins, making it ideal for modern electronic displays and optoelectronic circuits requiring vivid RGB color mixing. The milky white lens with clear lens colour enhances light diffusion while delivering strong luminance levels optimized for each color channel: 180 mcd for blue, 400 mcd for red, and 550 mcd for green.

Its dominant wavelengths are 475 nm (blue), 535 nm (green), and 629 nm (red), suitable for a wide range of industrial and commercial electronic devices requiring full RGB color rendering. The packaging on tape and reel supports automated placement and assembly, facilitating efficient mass production workflows.

This surface mount LED is RoHS compliant, ensuring adherence to environmental and safety standards. Its design supports applications in electronic components manufacturing, LED displays, and other lighting and signaling use cases within industrial, commercial, and consumer electronics sectors.

This LED features three individual LEDs in a compact 1.8 x 1.6 mm rectangular package. The forward voltage is 2.1 V and it supports a maximum forward current of 20 mA. Maximum power dissipation is rated at 400 mW ensuring reliable operation.

LED luminosity reaches up to 180 mcd (Blue), 400 mcd (Red), and 550 mcd (Green). The lens is milky white with a clear lens colour, shaped rectangular with dimensions 1.8 x 1.6 x 0.5 mm. Designed for surface mount applications with a 6-pin configuration and tape & reel packaging.

The LED emits dominant wavelengths of 475 nm, 535 nm, and 629 nm suitable for varied lighting applications. Its compact size and high brightness make it suitable for electronic components, displays, and optoelectronic uses.

This product is categorized under LED components and suitable for use in industrial manufacturing, electronic display systems, ICT equipment, and laboratory testing instruments. EnvMart offers an extensive selection of high-quality electronic components for your industrial and manufacturing needs.
