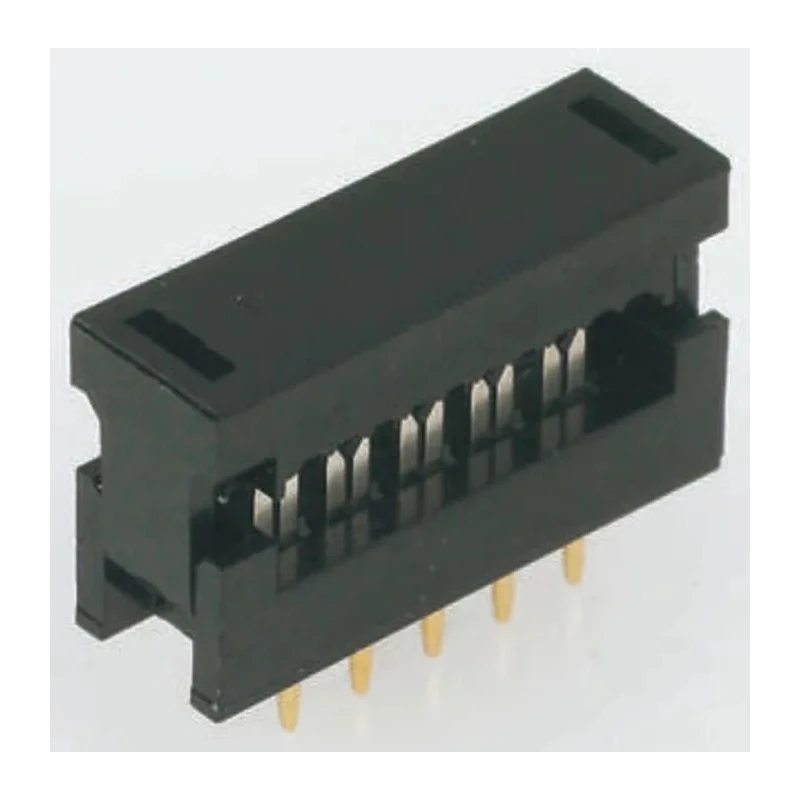

RS PRO 14-Way IDC Connector Male for Cable, 2 Row, Gold Plated Brass Contacts, 250V, 3A, Right Angle 642-5067

Free Delivery in India | Lowest Global Shipping Charges

RS PRO 14-Way IDC Connector Male for Cable, 2 Row, Gold Plated Brass Contacts, 250V, 3A, Right Angle 642-5067

Name: RS PRO 14-Way IDC Connector Male for Cable, 2 Row, Gold Plated Brass Contacts, 250V, 3A, Right Angle 642-5067
Brand: RS PRO
SKU: 201292



Category IDC Connector Brand RS PRO Condition New

Specifications

Country of Origin	China
Voltage	250V
Brand	RS PRO
Orientation	Right Angle
Current	3A
Model	642-5067
Mount Type	Cable
Housing Material	Polybutylene Terephthalate
Contact Material	Brass
Termination Type	IDC
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-40°C
Number of Rows	2
Pitch	2.54mm
Contact Plating	Gold
Number of Contacts	14
Contact Gender	Male
Connector Gender	Male
Shrouded/Unshrouded	Unshrouded
TE Connectivity 14-Way IDC Connector Male for Cable, 2 RowBrand	TE Connectivity
8888 14-Way IDC Connector Plug for Cable Mount, 2-RowBrand	NEUTRAL
Connector,rectangular,multipole,2 row transition header,14 wayBrand	HARTING

Key Features

Features 14 contacts arranged in 2 rows for secure cable mounting.
Rated for a current of 3 Amperes with a voltage rating of 250 Volts.
Contact pins are plated with 0.8 μm gold for corrosion resistance.
Constructed with brass contacts and polybutylene terephthalate housing.
Operating temperature range from -40°C up to 105°C ensures durability.
Right angle orientation suitable for compact electronic assemblies.
Termination type is IDC, facilitating quick and reliable wire connection.
Male connector gender designed for cable mount applications.

Product Description

RS PRO model 642-5067 is a 14-Way IDC Connector Male for Cable featuring two rows of contacts spaced on a 2.54 mm pitch grid. Designed for cable mounting, this connector includes 0.8 micron gold plated brass contacts that provide excellent conductivity and resistance to corrosion. The right angle orientation helps in managing wiring in compact spaces typical of industrial and commercial electronics applications.

The connector is rated for 3 Amperes and 250 Volts, suitable for numerous low-power electronic systems. The housing material, polybutylene terephthalate, provides mechanical strength and thermal stability, operating reliably between -40°C and 105°C to withstand harsh conditions.

This IDC (Insulation Displacement Connector) termination type simplifies installation, allowing wires to be connected without stripping insulation. The male connector gender is intended for cable end use in board-to-wire or wire-to-wire configurations. The unshrouded design enhances accessibility for connection or testing.

Such connectors are widely used in industrial electronics, manufacturing, laboratory instrumentation, and electrical panels where reliable, compact, and durable electrical interconnects are required. Its gold plated contacts ensure low resistance terminations for sensitive signals.

14 contacts in 2 rows ensure secure multi-wire connections. 3A current and 250V voltage rating meet standard electronic requirements. High-quality brass contacts with gold plating improve longevity and conductivity. Durable polybutylene terephthalate housing resists temperature and mechanical stress.

Right angle design suits compact and dense wiring configurations. IDC termination type allows efficient assembly without wire preparation. Operating temperature range from -40°C to 105°C ensures operational reliability in various environments.

Unshrouded male connector facilitates easy mating and inspection.

RS PRO connectors are trusted in electronics manufacturing, automation, instrumentation, and repair sectors. Browse our Electronics Components and IDC Connectors category for complementary parts and accessories.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

This model is rated for a voltage of 250 Volts and a current of 3 Amperes, making it suitable for low-power electronic systems.

The connector operates reliably within a temperature range of -40°C to 105°C, ensuring functionality in various environments.

This model uses an IDC (Insulation Displacement Connector) termination type, which facilitates quick and reliable wire connections without the need for stripping insulation.

The connector is constructed with brass contacts that are gold plated for corrosion resistance, and the housing is made from polybutylene terephthalate.

The connector has a right angle orientation, which is suitable for managing wiring in compact electronic assemblies.

This model is unshrouded, which enhances accessibility for connection or testing.

It is widely used in industrial electronics, manufacturing, laboratory instrumentation, and electrical panels where reliable electrical interconnects are required.

The gold plating on the brass contacts ensures excellent conductivity and resistance to corrosion, which is important for maintaining low resistance terminations for sensitive signals.

This connector is designed for cable mounting, but specific dimensions are not provided in the available data.

The connector is manufactured in China, as indicated by the country of origin.
