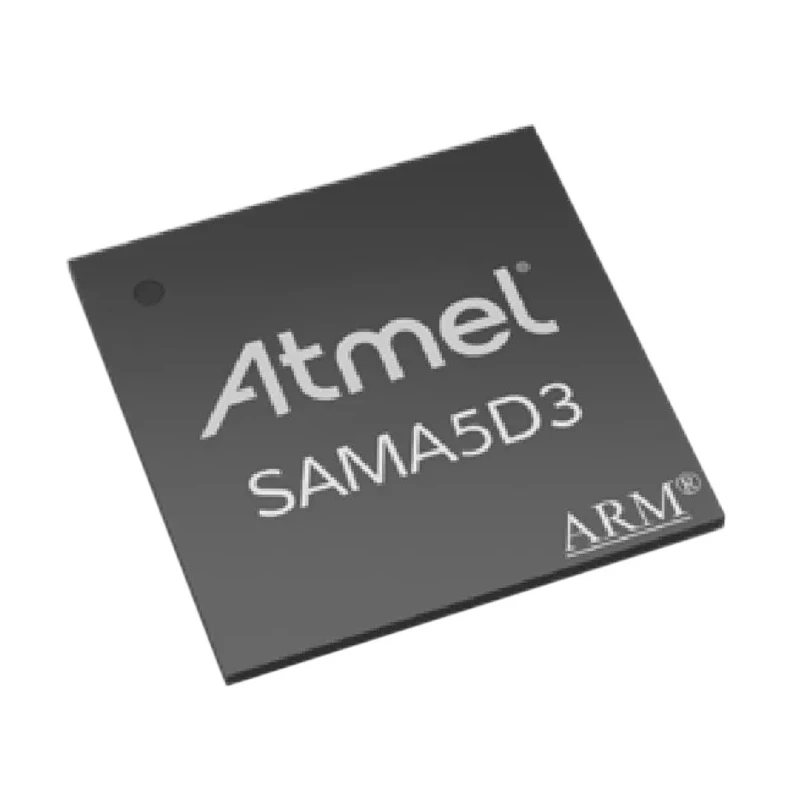

Microchip 32 bit ARM Cortex A5 SAMA5D3 Microcontroller 536 MHz 160kB FLASH 324-Pin LFBGA SAMA5D3
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | Microchip |
| Height | 1.1mm |
| Length | 15.05mm |
| Model | SAMA5D3 |
| Width | 15.05mm |
| Mount Type | Surface |
| Series | SAMA5D3 |
| Maximum Operating Temperature | 85°C |
| Package Type | LFBGA |
| Minimum Operating Temperature | -40°C |
| Ram size | 128kB |
| Pin Count | 324 |
| Maximum Supply Voltage | 1.08V |
| Minimum Supply Voltage | 1.32V |
| Device Core | ARM Cortex A5 |
| Program Memory Size | 160kB |
| Maximum Clock Frequency | 536MHz |
| Number of Programmable I/Os | 160 |
| Number of Timers | 2 |
| Instruction Set Architecture | ARM V7-A |
| ADCs | 12 x 12 Bit |
| Program Memory Type | FLASH |
Key Features
- Based on the 32 bit ARM Cortex A5 core architecture.
- Equipped with 160kB FLASH program memory and 128kB RAM size.
- Operates at a maximum clock frequency of 536 MHz for efficient processing.
- Supports 160 programmable I/Os for extensive peripheral interfacing.
- Includes 12 x 12 bit ADCs for accurate analog signal conversion.
- Has two timers and uses ARM V7-A instruction set architecture.
- Provided in a 324-pin LFBGA surface-mount package.
- Rated for supply voltages from 1.08V to 1.32V and temperature range from -40°C to 85°C.
Product Description
Microchip SAMA5D3 32 bit ARM Cortex A5 Microcontroller equipped with 160kB FLASH and 128kB RAM is designed for cost-sensitive industrial and consumer applications requiring high performance and low power. The device operates at a maximum clock speed of 536 MHz and features an ARM Cortex A5 core with ARM V7-A instruction set for efficient processing tasks.
This surface-mount microcontroller comes in a 324-pin LFBGA package measuring 15.05 mm by 15.05 mm by 1.1 mm, supporting 160 programmable I/O pins and two timers. The included 12-bit ADCs enable precise analog measurements, enhancing its versatility in various control and sensing applications.
It supports operating supply voltages from 1.08V to 1.32V and functions reliably across a temperature range of -40°C to 85°C, making it suitable for demanding industrial environments. The FLASH program memory allows storage of application firmware while the sizable RAM supports runtime data handling.
Based on the 32 bit ARM Cortex A5 core architecture. Equipped with 160kB FLASH program memory and 128kB RAM size. Operates at a maximum clock frequency of 536 MHz for efficient processing. Supports 160 programmable I/Os for extensive peripheral interfacing.
Includes 12 x 12 bit ADCs for accurate analog signal conversion. Has two timers and uses ARM V7-A instruction set architecture. Provided in a 324-pin LFBGA surface-mount package. Rated for supply voltages from 1.08V to 1.32V and temperature range from -40°C to 85°C.
Dimensions are 15.05 mm length, 15.05 mm width, and 1.1 mm height.
This microcontroller is widely used in industrial automation, consumer electronics, and embedded system projects requiring a balance of performance and power efficiency. Its robust design ensures reliability in harsh environments and continuous operation.
Explore more Microcontrollers and related components in the Microchip range at EnvMart for industrial, laboratory, and commercial applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum clock frequency of the SAMA5D3 microcontroller is 536 MHz.
It is equipped with 160kB of FLASH program memory.
The RAM size of this microcontroller is 128kB.
This model supports 160 programmable I/Os for extensive peripheral interfacing.
It operates reliably across a temperature range of -40°C to 85°C.
It is provided in a 324-pin LFBGA surface-mount package.
The SAMA5D3 uses the ARM V7-A instruction set architecture.
This model includes 12 x 12-bit ADCs for accurate analog signal conversion.
It is rated for supply voltages from 1.08V to 1.32V.
The dimensions are 15.05 mm in length, 15.05 mm in width, and 1.1 mm in height.
It has two timers included in its design.
This microcontroller is suitable for industrial automation, consumer electronics, and embedded system projects requiring high performance and low power.
