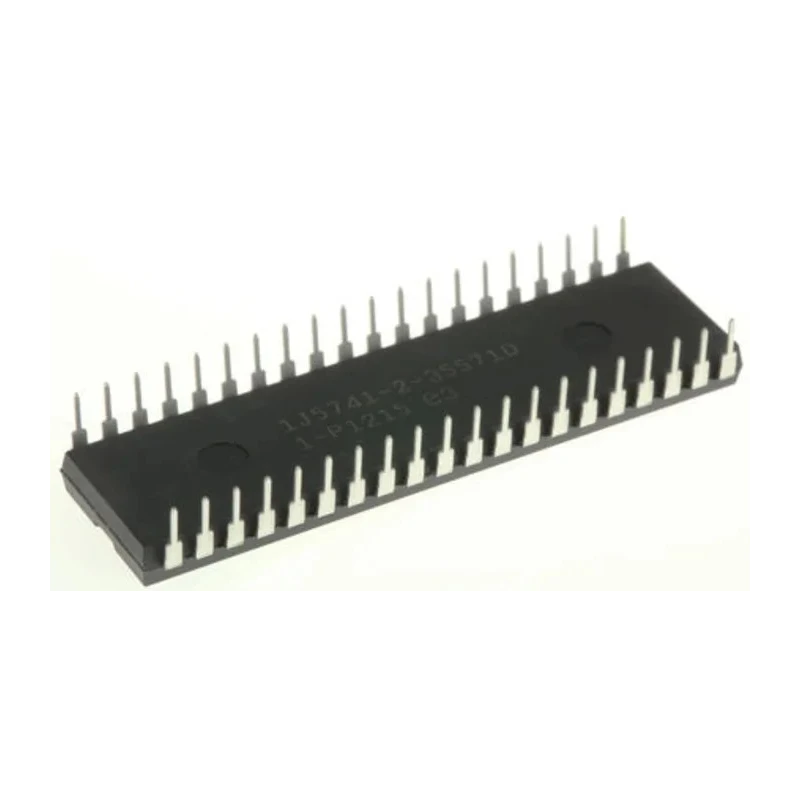

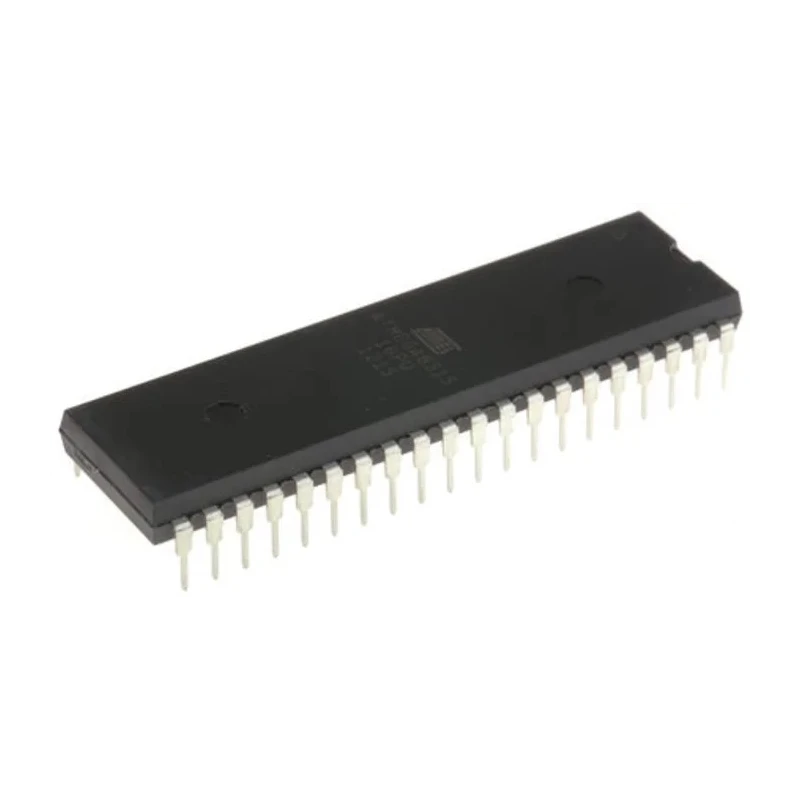

Microchip 8-Bit AVR ATmega Microcontroller 8kB FLASH 16 MHz 40-Pin PDIP ATMEGA8515-16PU
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 4.44mm |
| Length | 52.57mm |
| Model | ATMEGA8515-16PU |
| Width | 13.97mm |
| Mount Type | Through Hole |
| Series | Atmega |
| Maximum Operating Temperature | 85°C |
| Package Type | PDIP |
| Minimum Operating Temperature | -40°C |
| Ram size | 512bit |
| Interface Type | USART, SPI |
| Standards/Approvals | RoHS |
| Pin Count | 40 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 4.5V |
| Device Core | AVR |
| Program Memory Size | 8kB |
| Maximum Clock Frequency | 16MHz |
| Number of Programmable I/Os | 35 |
| Analogue Comparators | 1 |
| Number of Timers | 2 |
| Instruction Set Architecture | RISC |
| ADCs | 0 bit |
| Program Memory Type | FLASH |
Key Features
- This microcontroller operates on an 8-bit AVR RISC architecture for efficient processing.
- Mounted using a 40-pin PDIP package for through-hole installation.
- Features 8 kB of in-system programmable flash memory and 512 bits of RAM.
- Supports USART and SPI communication interfaces.
- Operating voltage ranges from 4.5 V to 5.5 V with a maximum clock speed of 16 MHz.
- Includes 35 programmable input/output pins for versatile control.
- Designed to operate reliably from -40°C to 85°C ambient temperatures.
- Complies with RoHS standards ensuring environmental compliance.
Product Description
Microchip ATMEGA8515-16PU is an 8-bit AVR microcontroller designed for high-performance embedded applications, running at 16 MHz clock speed with 8 kB programmable flash memory. This 40-pin PDIP packaged device supports USART and SPI interfaces, enabling flexible serial communication in industrial and consumer electronics.
The microcontroller operates within a voltage range of 4.5 V to 5.5 V and is capable of functioning over a wide temperature range from -40°C to 85°C, making it suitable for harsh environments. It features 35 programmable I/O pins, 512 bits of RAM, 2 timers, and 1 analogue comparator to facilitate precise control and timing in embedded systems.
Key technical specifications include an 8-bit RISC architecture for high efficiency, dual timers, and robust flash memory storage. Its through-hole PDIP package allows for easy integration into development and production PCBs.
This microcontroller operates on an 8-bit AVR RISC architecture for efficient processing. Mounted using a 40-pin PDIP package for through-hole installation. Features 8 kB of in-system programmable flash memory and 512 bits of RAM.
Supports USART and SPI communication interfaces. Operating voltage ranges from 4.5 V to 5.5 V with a maximum clock speed of 16 MHz. Includes 35 programmable input/output pins for versatile control. Designed to operate reliably from -40°C to 85°C ambient temperatures.
Complies with RoHS standards ensuring environmental compliance. Equipped with 2 timers and 1 analogue comparator to support multiple functions. The device height is 4.44 mm, length 52.57 mm, and width 13.97 mm, suitable for compact circuits.
This microcontroller is widely used in industrial automation, consumer electronics, automotive control systems, and embedded design projects. Its versatile feature set supports robust embedded solutions where efficiency and reliability are critical.
Explore more Microchip microcontrollers with diverse configurations and memory options in the EnvMart Electronics & Electricals Microcontroller category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum clock speed of this microcontroller is 16 MHz.
It operates within a voltage range of 4.5 V to 5.5 V.
This model features 35 programmable input/output pins.
It is mounted using a 40-pin PDIP package for through-hole installation.
It supports USART and SPI communication interfaces.
This microcontroller is designed to operate reliably from -40°C to 85°C.
It features 8 kB of in-system programmable flash memory.
This model includes 512 bits of RAM.
The dimensions are height 4.44 mm, length 52.57 mm, and width 13.97 mm.
It includes 2 timers.
It complies with RoHS standards, ensuring environmental compliance.
It operates on an 8-bit AVR RISC architecture for efficient processing.
