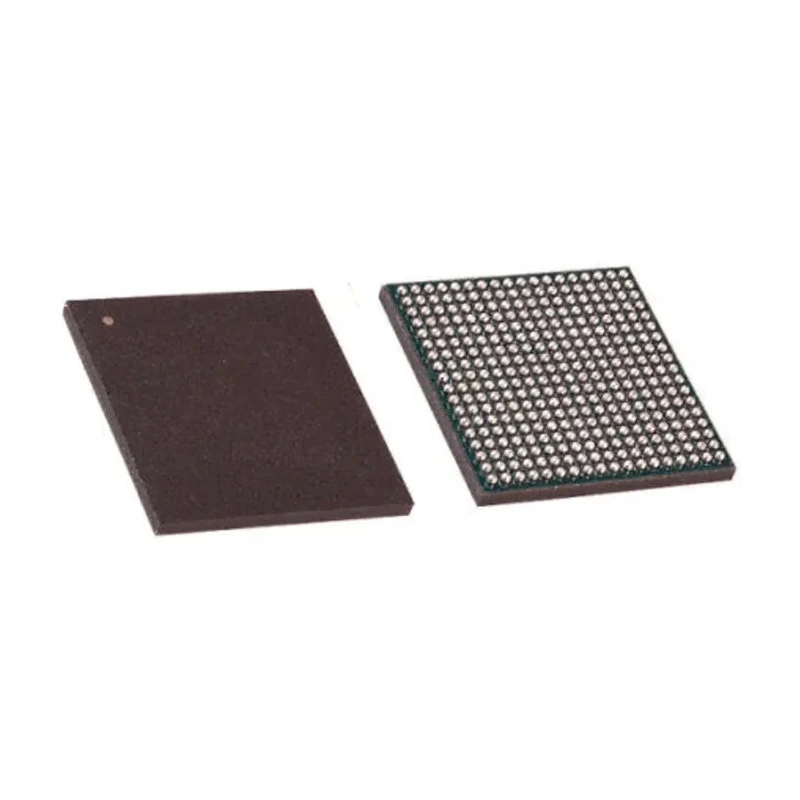

Microchip 32 bit ARM Cortex A5 SAMA5D3 Microcontroller 536 MHz 160kB FLASH 324-Pin LFBGA ATSAMA5D36A-CU
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 1.1mm |
| Length | 15.05mm |
| Model | ATSAMA5D36A-CU |
| Width | 15.05mm |
| Mount Type | Surface |
| Series | SAMA5D3 |
| Maximum Operating Temperature | 85°C |
| Package Type | LFBGA |
| Minimum Operating Temperature | -40°C |
| Ram size | 128kB |
| Interface Type | UART, CAN, SPI |
| Pin Count | 324 |
| Maximum Supply Voltage | 1.08V |
| Minimum Supply Voltage | 1.32V |
| Device Core | ARM Cortex A5 |
| Program Memory Size | 160kB |
| Maximum Clock Frequency | 536MHz |
| Number of Programmable I/Os | 160 |
| Number of Timers | 2 |
| Instruction Set Architecture | ARM V7-A |
| ADCs | 12 x 12 Bit |
| Program Memory Type | FLASH |
Key Features
- Utilizes ARM Cortex A5 core architecture for efficient processing.
- Incorporates 128kB RAM for high-speed data handling.
- Supports UART, CAN, and SPI interface communication protocols.
- Packaged in a 324-pin LFBGA surface mount package.
- Operates within temperature range of -40°C to 85°C.
- Maximum supply voltage of 1.08V and minimum of 1.32V supply voltage.
- Includes 12 12-bit ADCs and 2 timers for precise control.
- Ideal for industrial and consumer embedded applications requiring advanced security and performance.
Product Description
Microchip ATSAMA5D36A-CU is a 32 bit ARM Cortex A5 based microcontroller from the SAMA5D3 series designed to deliver versatile, high-performance, and low-power operation. Operating at a maximum clock frequency of 536 MHz, this MPU balances processing power with energy efficiency for cost-sensitive industrial and consumer embedded systems.
The microcontroller features 160kB of FLASH program memory and 128kB of RAM, supporting robust application development and complex task execution. Its 324-pin LFBGA surface mount package facilitates high-density board designs and reliable soldering.
Peripheral interfaces include UART, CAN, and SPI, allowing seamless communication with a wide array of devices and networks. Additionally, the device supports 12 precision 12-bit ADC channels and includes 2 timers, enhancing its capability for real-time and sensor-driven applications.
Designed to function reliably in harsh environments, the ATSAMA5D36A-CU operates across a broad temperature range from -40°C to 85°C and supports supply voltages between 1.08V and 1.32V. The compact package dimensions of 15.05 mm by 15.05 mm with 1.1 mm height enable integration in space-constrained systems.
This microcontroller is well suited for applications in industrial automation, embedded computing, networking equipment, and consumer electronics requiring advanced security features and efficient power management.
Utilizes ARM Cortex A5 core architecture for efficient processing. Incorporates 128kB RAM for high-speed data handling. Supports UART, CAN, and SPI interface communication protocols. Packaged in a 324-pin LFBGA surface mount package.
Operates within temperature range of -40°C to 85°C. Maximum supply voltage of 1.08V and minimum of 1.32V supply voltage. Includes 12 12-bit ADCs and 2 timers for precise control. Dimensions are 15.05 mm length and width with 1.1 mm height.
Ideal for industrial and consumer embedded applications requiring advanced security and performance. Explore comprehensive electronic components and Microcontroller solutions at EnvMart for your embedded design needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum clock frequency of the ATSAMA5D36A-CU microcontroller is 536 MHz.
This model incorporates 128kB of RAM for high-speed data handling.
It supports UART, CAN, and SPI interface communication protocols.
The microcontroller operates with a supply voltage range from 1.08V to 1.32V.
The dimensions of the ATSAMA5D36A-CU are 15.05 mm in length and width, with a height of 1.1 mm.
It operates within a temperature range of -40°C to 85°C.
This model includes 12 precision 12-bit ADC channels.
It is packaged in a 324-pin LFBGA surface mount package.
The microcontroller includes 2 timers for precise control.
The ATSAMA5D36A-CU has a program memory size of 160kB FLASH.
It utilizes the ARM Cortex A5 core architecture for efficient processing.
This microcontroller is suitable for industrial automation, embedded computing, networking equipment, and consumer electronics.
