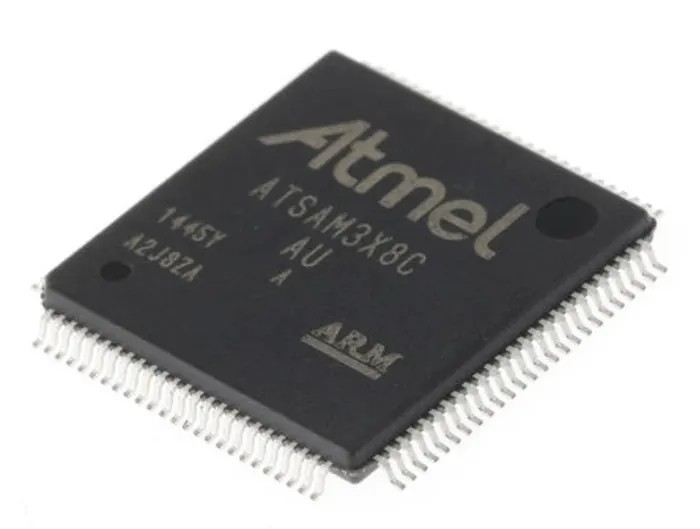

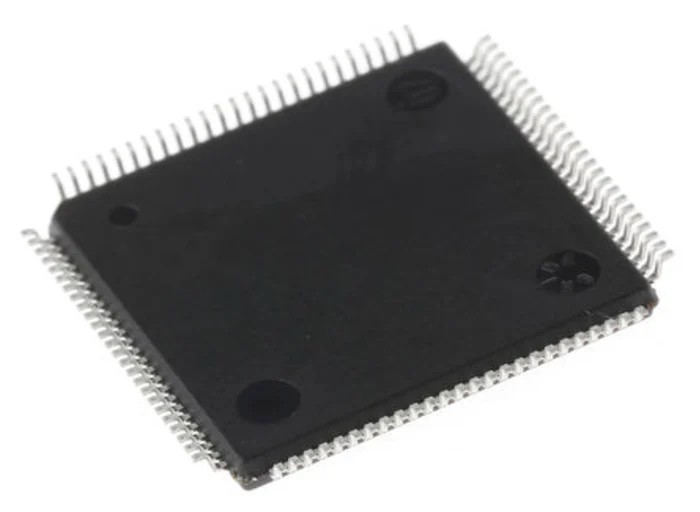

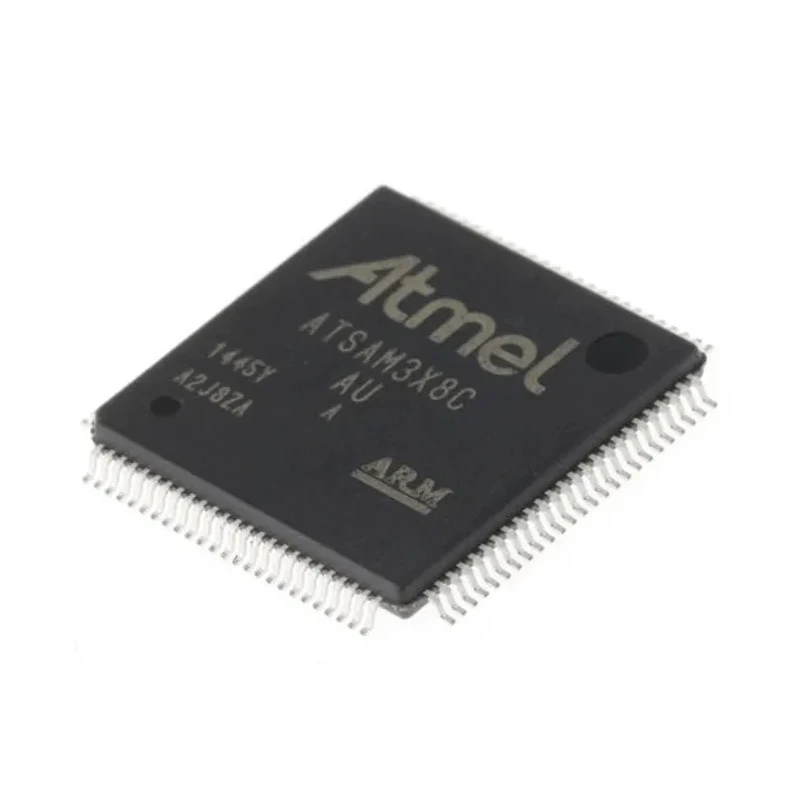

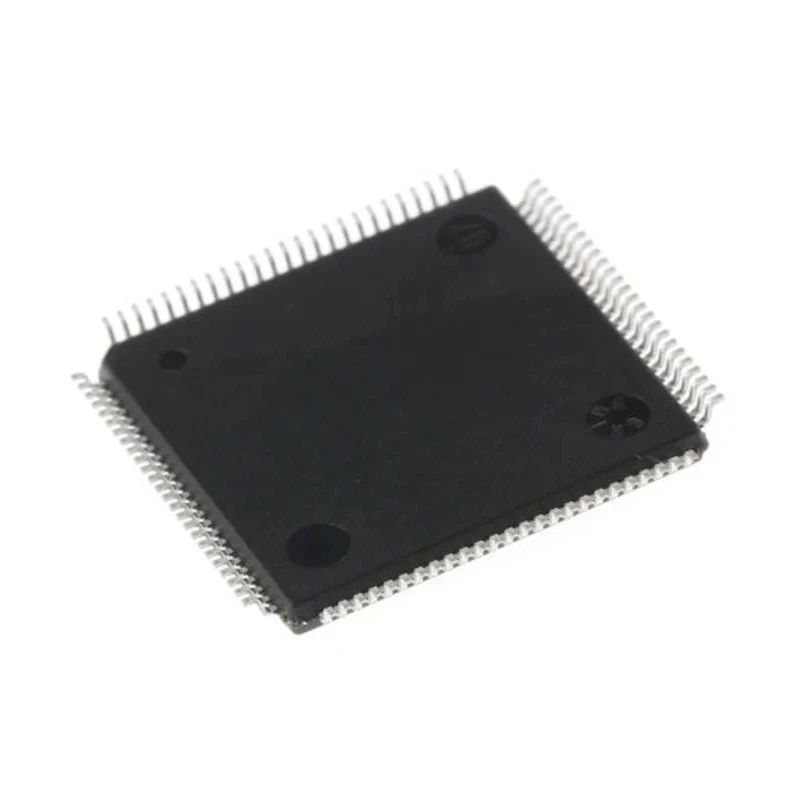

Microchip 32 bit ARM Cortex M3 SAM3X Microcontroller 84 MHz 512kB FLASH 100-Pin LQFP ATSAM3X8CA-AU
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 1.45mm |
| Length | 14mm |
| Model | ATSAM3X8CA-AU |
| Width | 14mm |
| Mount Type | Surface |
| Series | SAM3X |
| Maximum Operating Temperature | 85°C |
| Package Type | LQFP |
| Minimum Operating Temperature | -40°C |
| Ram size | 96kB |
| Pin Count | 100 |
| Maximum Supply Voltage | 3.6V |
| Minimum Supply Voltage | 1.62V |
| Device Core | ARM Cortex M3 |
| Program Memory Size | 512kB |
| Maximum Clock Frequency | 84MHz |
| Number of Programmable I/Os | 63 |
| Number of Timers | 1 |
| Instruction Set Architecture | RISC |
| ADCs | 16 x 12 Bit |
| Program Memory Type | FLASH |
| DACs | 2 x 12 Bit |
Key Features
- Based on ARM Cortex M3 architecture supporting 32-bit data bus width.
- Features 512kB Flash program memory and 96kB RAM for efficient embedded applications.
- Maximum operating voltage of 3.6V and minimum supply voltage of 1.62V for flexible power management.
- Equipped with 63 programmable I/Os, 2 DACs of 12-bit resolution, and 16 ADCs of 12-bit resolution.
- Temperature operating range from -40°C to 85°C, suitable for industrial environments.
- Package dimensions are 14mm x 14mm with a height of 1.45mm.
- Supports RISC instruction set architecture with 1 timer included.
Product Description
Microchip ATSAM3X8CA-AU is a 32-bit ARM Cortex M3 based SAM3X microcontroller designed for advanced embedded applications requiring high performance and connectivity. It operates at a clock speed of 84 MHz and features 512kB of FLASH program memory along with 96kB RAM, enabling efficient code execution and data handling.
This microcontroller incorporates enhanced connectivity options including Ethernet, dual CAN bus, and high-speed USB with on-chip PHY, suitable for industrial, automotive, and networking applications. It includes capacitive touch support through QTouch technology, ensuring versatile human interface capability.
The device supports a broad operating voltage range from 1.62V minimum to 3.6V maximum, with an operating temperature range of -40°C to 85°C, making it reliable in harsh environments. Its package is a 100-Pin Low-profile Quad Flat Package (LQFP) measuring 14 mm square with a height of just 1.45 mm.
Peripheral features include 63 programmable input/output lines, two 12-bit digital-to-analog converters (DAC), and sixteen 12-bit analog-to-digital converters (ADC). The RISC architecture facilitates efficient instruction execution with single timer support.
Microchip's SAM3X series offers low power consumption, enhanced safety features, and a robust design targeting industrial, automotive, and communication system applications. Based on ARM Cortex M3 core with 32-bit data width.
512kB FLASH and 96kB RAM memory capacity. Max clock frequency of 84 MHz for high-speed processing. Includes 63 programmable I/O lines, DACs, and ADCs. Operating voltage range from 1.62V to 3.6V. Operating temperature range of -40°C to 85°C.
Compact 100-Pin LQFP package, 14mm x 14mm x 1.45mm.
This microcontroller is suitable for applications in industrial automation, embedded systems development, automotive components, and communication devices. It offers enhanced connectivity and low power operation essential for modern electronics design.
Explore a wide range of Microchip Microcontrollers and components on EnvMart for reliable and high-quality electronic solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum clock frequency of the ATSAM3X8CA-AU microcontroller is 84 MHz, allowing for high-speed processing capabilities.
It features a program memory size of 512kB FLASH, which supports efficient code execution.
This microcontroller includes 63 programmable input/output lines for versatile connectivity options.
The operating voltage range for this model is from 1.62V minimum to 3.6V maximum, providing flexibility in power management.
It operates within a temperature range of -40°C to 85°C, making it suitable for industrial environments.
This microcontroller is packaged in a 100-Pin Low-profile Quad Flat Package (LQFP) with dimensions of 14mm x 14mm and a height of 1.45mm.
The ATSAM3X8CA-AU includes 16 analog-to-digital converters (ADCs) of 12-bit resolution and 2 digital-to-analog converters (DACs) of 12-bit resolution.
It is based on the ARM Cortex M3 architecture, supporting a 32-bit data bus width and RISC instruction set.
The height of the ATSAM3X8CA-AU microcontroller is 1.45mm, contributing to its compact design.
It incorporates enhanced connectivity options including Ethernet, dual CAN bus, and high-speed USB with on-chip PHY.
This microcontroller includes 1 timer, which supports various timing functions in embedded applications.
The RAM size of this microcontroller is 96kB, which aids in efficient data handling during operation.
