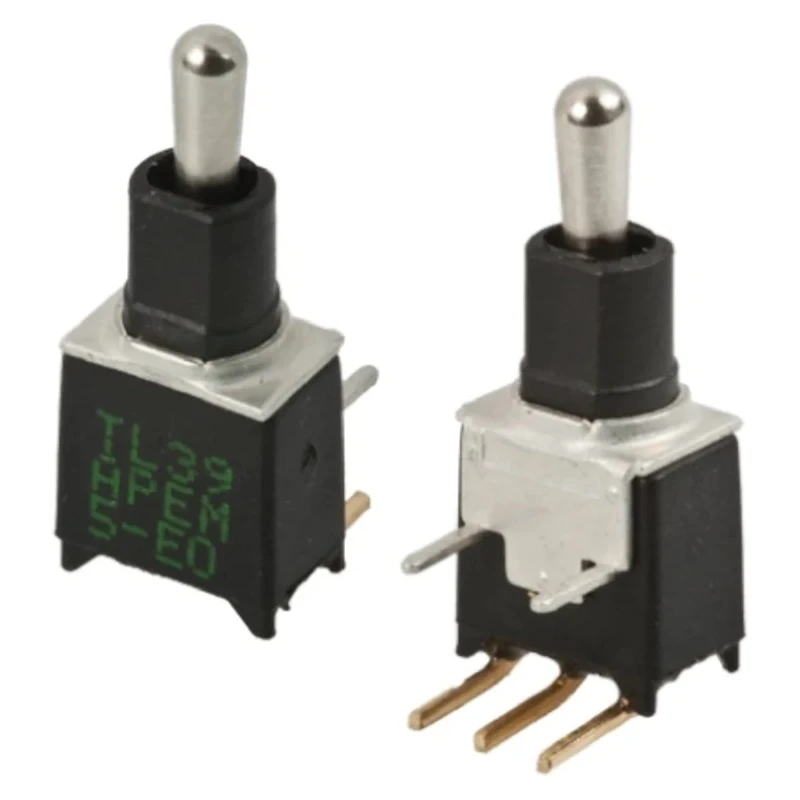

APEM PCB Mount On-On SPST Toggle Switch, Through Hole Terminal, 20 V dc, 20 V ac TL32W0050

APEM TL32W0050 is a precision PCB Mount On-On SPST Toggle Switch designed for low-level switching applications in electronics and electrical systems. Operating at 20 V dc and 20 V ac with a contact current rating of 400 mA, this toggle switch features a brass actuator and through hole terminals for excellent connectivity and durability.

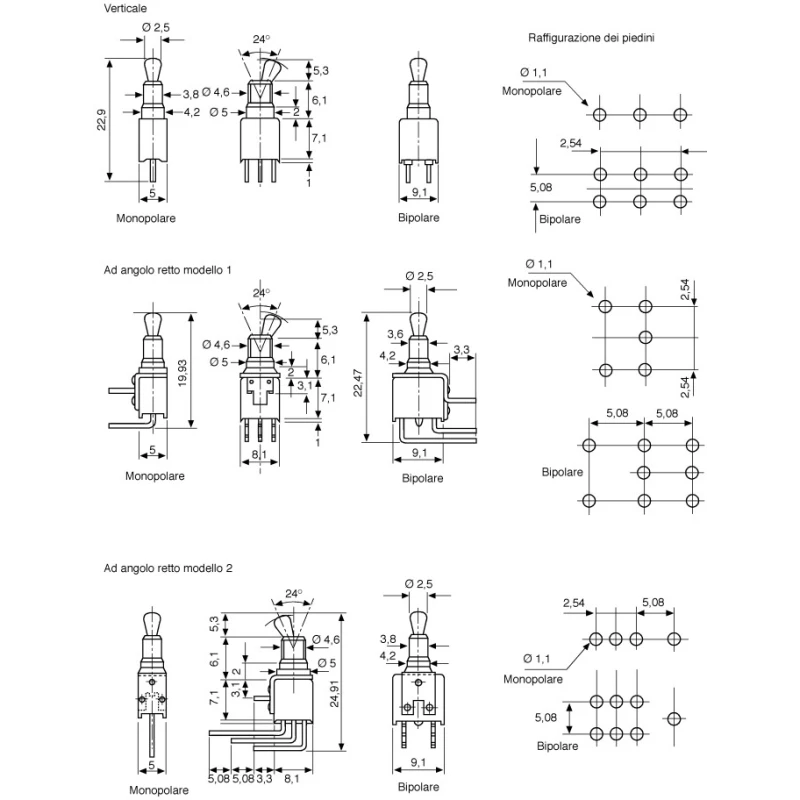

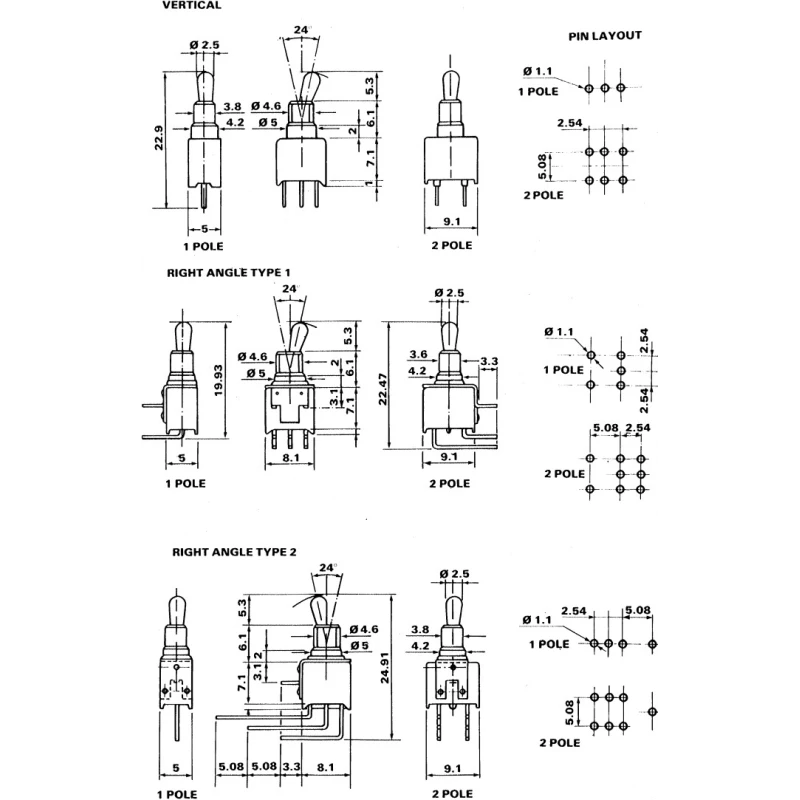

Its compact form factor with dimensions 19.58 mm height, 9.6 mm length, and 8.1 mm width fits seamlessly on printed circuit boards. The switch operation is On-On, allowing for stable two-position control with a contact configuration of SPST (Single Pole Single Throw).

Constructed with gold plated brass terminals and a PBT case, the TL32W0050 is totally sealed and suitable for immersion cleaning. It is wave solderable, capable of withstanding 260°C for 5 seconds, ensuring reliability during PCB assembly. The actuator is brass, measuring 5.3 mm in length, which adds to the robust mechanical performance. The switch supports a minimum load current from 10mA at 50mV to 10μA at 5V dc.

This toggle switch operates effectively within a temperature range from -30°C minimum to 85°C maximum, making it adaptable to diverse industrial, manufacturing, and automation environments. The product complies with RoHS standards, underscoring its environmental safety.

With a rated number of operations of 60,000 for 2-position switches and 30,000 for 3-position, it provides reliable and durable performance. The TL32W0050 is manufactured in France, assuring high-quality production standards.

Utilizes SPST contact configuration for precise switching control. On-On switch operation provides two stable positions. Brass actuator and gold plated terminals enhance durability and conductivity. Sealed construction suitable for immersion cleaning and wave soldering.

Compact PCB mount design with through hole terminals for secure installation. Rated for 400 mA contact current at 20 V dc/ac. Operates from -30°C to 85°C, suitable for industrial applications. RoHS compliant, environmentally friendly manufacturing.

Rated for up to 60,000 operations ensuring longevity.

This toggle switch is ideal for use in electrical, automation, industrial control, and manufacturing applications requiring reliable, compact, and durable switching components. Explore the extensive range of APEM Toggle Switches and other switches at EnvMart for your projects and industrial needs.
