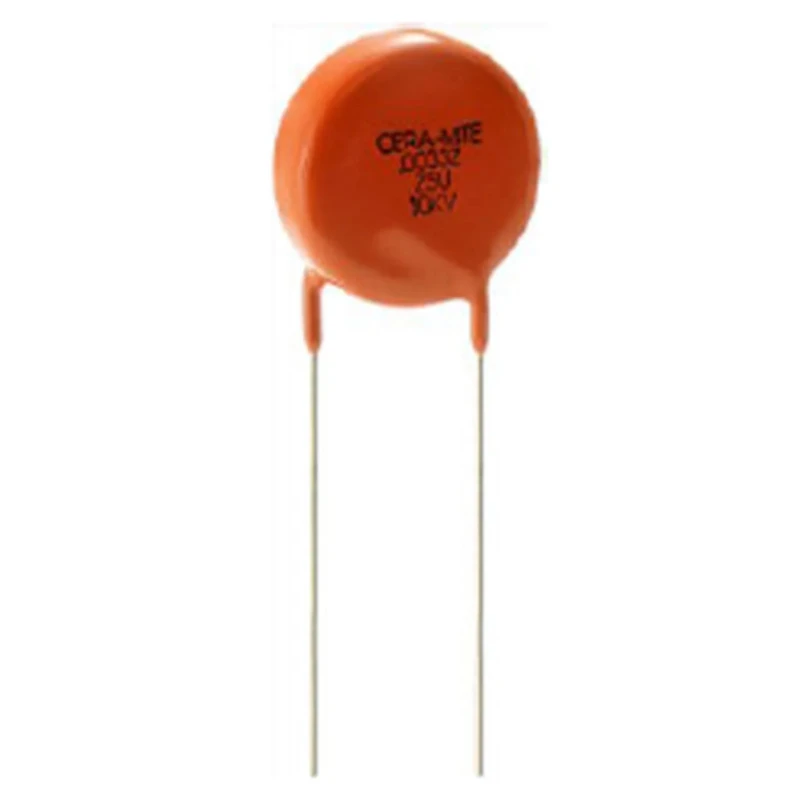

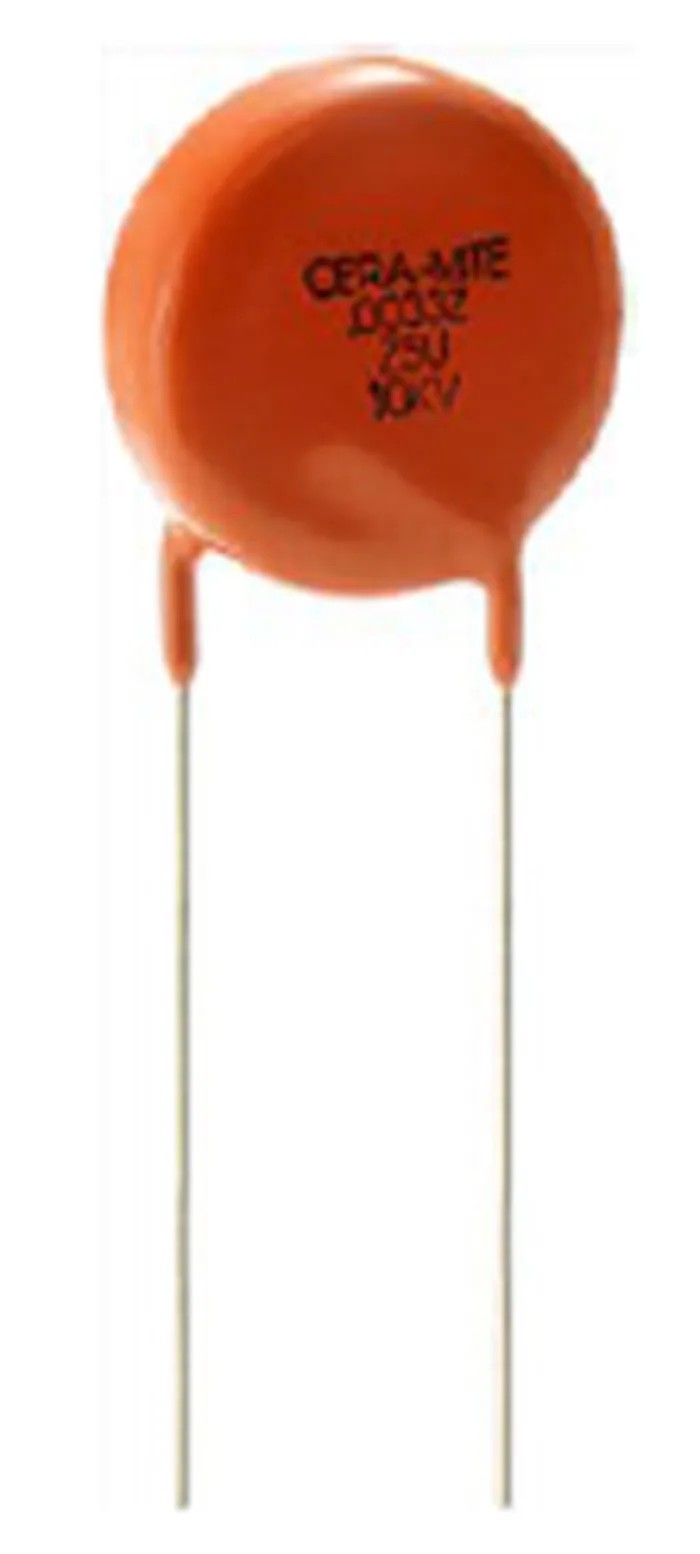

Vishay Single Layer Ceramic Capacitor 2.5 nF 10kV dc Z5U Dielectric Through Hole Radial Terminal 615R100GAD25
Specifications
| Country of Origin | Czech Republic |
|---|---|
| Voltage | 10kV dc |
| Diameter | 19.1mm |
| Brand | Vishay |
| Model | 615R100GAD25 |
| Width | 8.9mm |
| Mount Type | Through Hole |
| Series | 615R |
| Maximum Operating Temperature | 105°C |
| Tolerance | -20 to 80 % |
| Capacitance | 2.5nF |
| Minimum Operating Temperature | -25°C |
| Terminal type | Radial |
| Dissipation Factor | 2% |
| Standards/Approvals | EC, RoHS |
| Pin Count | 2 |
| Dielectric | Z5U |
| Suppression Class | Class II |
Key Features
- Offers capacitance of 2.5 nF suitable for high voltage applications.
- Rated for 10 kV DC voltage ensuring reliable performance.
- Features Z5U dielectric with a tolerance range from -20% to +80%.
- Radial terminal type with through hole mounting for secure PCB installation.
- Maximum operating temperature of 105 °C for consistent operation.
- Diameter measures 19.1 mm and width is 8.9 mm supporting compact designs.
- Dissipation factor of 2% indicating low losses during operation.
- Complies with EC and RoHS standards ensuring environmental safety.
Product Description
Vishay 615R100GAD25 Single Layer Ceramic Capacitor provides a capacitance of 2.5 nF with a high-voltage rating of 10 kV DC. Designed using Z5U dielectric material, this capacitor supports applications requiring flexible tolerance values ranging from -20% to +80%. It features a radial terminal type with through hole mounting, enabling robust and reliable connections on printed circuit boards (PCBs). The product is engineered for use in demanding environments and operates reliably at maximum temperatures of up to 105 °C.
These capacitors are constructed with a ceramic disc coated in flame retardant epoxy resin and both sides silver-plated, enhancing durability and electrical stability. The 615R series ensures minimal losses with a dissipation factor of 2%, making it suitable for high power and high voltage electronics applications.
Typical industrial and commercial uses include televisions and monitors, X-ray equipment, DC and pulse high voltage circuits, and switched mode power supplies (SMPS). The component satisfies EC and RoHS compliance standards, ensuring compatibility with environmentally conscious manufacturing and design mandates. The product is manufactured in the Czech Republic assuring high quality and reliability.
Offers capacitance of 2.5 nF suitable for high voltage applications. Rated for 10 kV DC voltage ensuring reliable performance. Features Z5U dielectric with a tolerance range from -20% to +80%. Radial terminal type with through hole mounting for secure PCB installation.
Maximum operating temperature of 105 °C for consistent operation. Diameter measures 19.1 mm and width is 8.9 mm supporting compact designs. Dissipation factor of 2% indicating low losses during operation. Complies with EC and RoHS standards ensuring environmental safety.
Manufactured in Czech Republic guaranteeing quality manufacturing standards.
This single layer ceramic capacitor is suitable for diverse electronic industrial applications requiring high voltage ceramic capacitors with reliable electrical performance and environmental compliance. Explore more Vishay components and trusted Single Layer Ceramic Capacitors in EnvMart’s extensive catalog to find premium quality capacitors for your electronic component needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model offers a capacitance of 2.5 nF, making it suitable for high voltage applications.
It is rated for a maximum voltage of 10 kV DC, ensuring reliable performance in high voltage circuits.
This capacitor features a Z5U dielectric, which provides a tolerance range from -20% to +80%.
The diameter of this unit measures 19.1 mm and the width is 8.9 mm, supporting compact designs.
It can operate at a maximum temperature of 105 °C, suitable for demanding environments.
This model supports through hole mounting with a radial terminal type, allowing for secure PCB installation.
It has a dissipation factor of 2%, indicating low losses during operation.
The product complies with EC and RoHS standards, ensuring environmental safety and compatibility.
This capacitor has a minimum operating temperature of -25 °C, allowing for use in various conditions.
It features a pin count of 2, facilitating easy connections in circuit designs.
This capacitor is manufactured in the Czech Republic, ensuring adherence to quality manufacturing standards.
It is suitable for applications such as televisions, X-ray equipment, and switched mode power supplies (SMPS).
