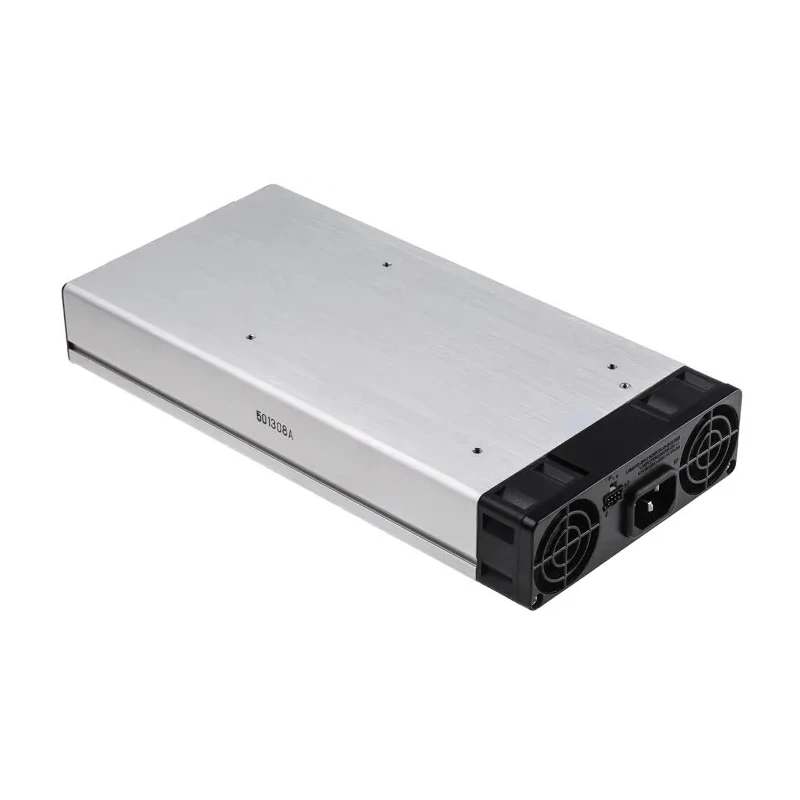

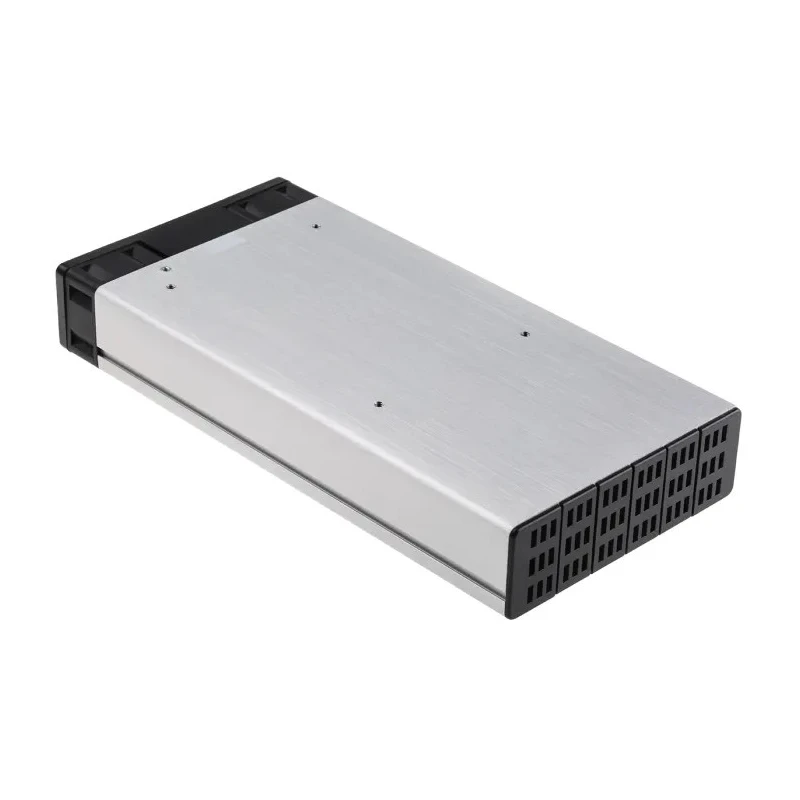

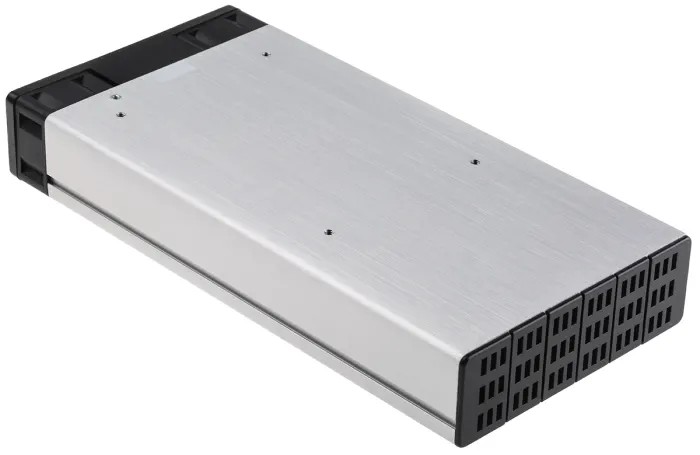

Excelsys / Advanced Energy XCD Switching Power Supply 6 Outputs 1.2 kW Chassis Mount 85-264 VAC Input 90% Efficiency XCD
Specifications
| Country of Origin | China |
|---|---|
| Brand | Excelsys / Advanced Energy |
| Power | 1.2kW |
| Efficiency | 90% |
| Length | 269.75mm |
| Model | XCD |
| Depth | 40.4mm |
| Gross Weight | 1.1kg |
| Width | 127mm |
| Mount Type | Chassis |
| Series | Xgen |
| Maximum Operating Temperature | 70°C |
| Minimum Operating Temperature | -20°C |
| Number of outputs | 6 |
| Standards/Approvals | CE, RoHS, cURus |
| Minimum Input Voltage | 85V ac |
Key Features
- Features six output channels suitable for advanced electronic systems integration.
- Supports universal input voltage ranging from 85 VAC to 264 VAC and 120 VDC to 380 VDC.
- Compact chassis mount design with dimensions 269.75mm length, 127mm width, and 40.4mm depth.
- Operating temperature range from -20°C to 70°C with derating above 50°C.
- Incorporates thermal, over voltage, and over current protection for system safety.
- Logic inhibit and enable functions with power fail signal outputs.
- High reliability with CE, RoHS, and cURus approvals.
- Typical efficiency of 90% ensures energy savings in industrial and medical applications.
Product Description
Excelsys / Advanced Energy XCD Switching Power Supply Xgen Series chassis mount unit delivers 1.2 kW continuous power through six isolated DC outputs. Designed for system designers requiring modular and reliable power solutions, this power supply accepts a universal input voltage range from 85 VAC to 264 VAC and DC input up to 380 VDC. The compact design with 269.75mm length, 127mm width, and 40.4mm depth fits into 1U height enclosures while maintaining robust performance and an efficiency of 90%.
Operating safely from -20°C up to 70°C ambient temperature with a derating of 2.5% per °C over 50°C, the XCD unit integrates advanced protections including thermal shutdown, over voltage and over current protection. It features logic inhibit/enable and power fail signals to aid system integrations in industrial machines, laboratory and diagnostic equipment, telecommunications, medical devices, automation, and audio/broadcast applications.
Modular design allowing rapid system integration with six isolated output modules. Universal input voltage ensuring global compatibility from 85 VAC to 264 VAC and DC input range up to 380 VDC. Comprehensive safety features including thermal, over voltage, and over current protections.
High efficiency of 90% reduces power losses and cooling requirements. Compact chassis mount form factor fits standard 1U enclosures. Operating temperature range from -20°C to 70°C accommodating challenging industrial environments.
Compliance with CE, RoHS, and cURus standards assures quality and reliability. Ideal for use in telecommunications, medical, industrial automation, and laboratory equipment.
The XCD switching power supply is manufactured in China and forms part of Excelsys Xgen product series, renowned for reliable and efficient power modules. This product is suited for engineers and technicians seeking a compact, efficient, and versatile power supply unit with multiple outputs and high safety standards. Explore more power supply solutions to suit a wide range of industrial and commercial applications on EnvMart.
Explore more products in our Switching Power Supplies category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The dimensions are 269.75 mm in length, 127 mm in width, and 40.4 mm in depth, making it suitable for standard 1U enclosures.
It has a typical efficiency of 90%, which helps reduce power losses and cooling requirements.
The operating temperature range is from -20°C to 70°C, with a derating of 2.5% per °C above 50°C.
It incorporates thermal shutdown, over voltage, and over current protection to ensure system safety.
This unit features six isolated output channels suitable for advanced electronic systems integration.
It complies with CE, RoHS, and cURus standards, assuring quality and reliability.
The gross weight of this model is 1.1 kg.
It is designed for chassis mounting, fitting into standard 1U height enclosures.
It is suitable for telecommunications, medical devices, industrial automation, and laboratory equipment.
It includes logic inhibit/enable functions and power fail signal outputs to aid system integrations.
