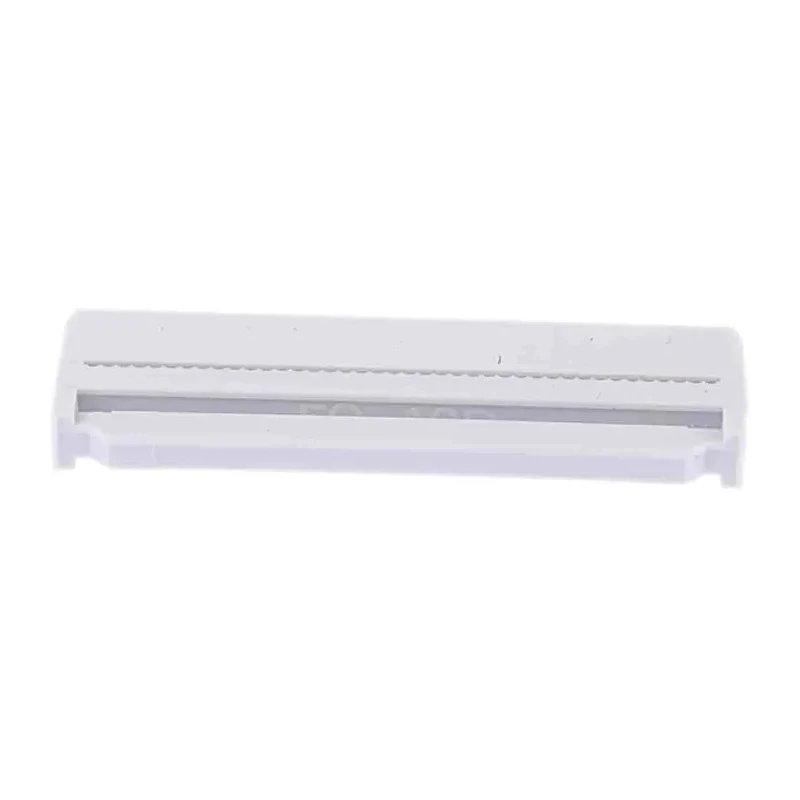

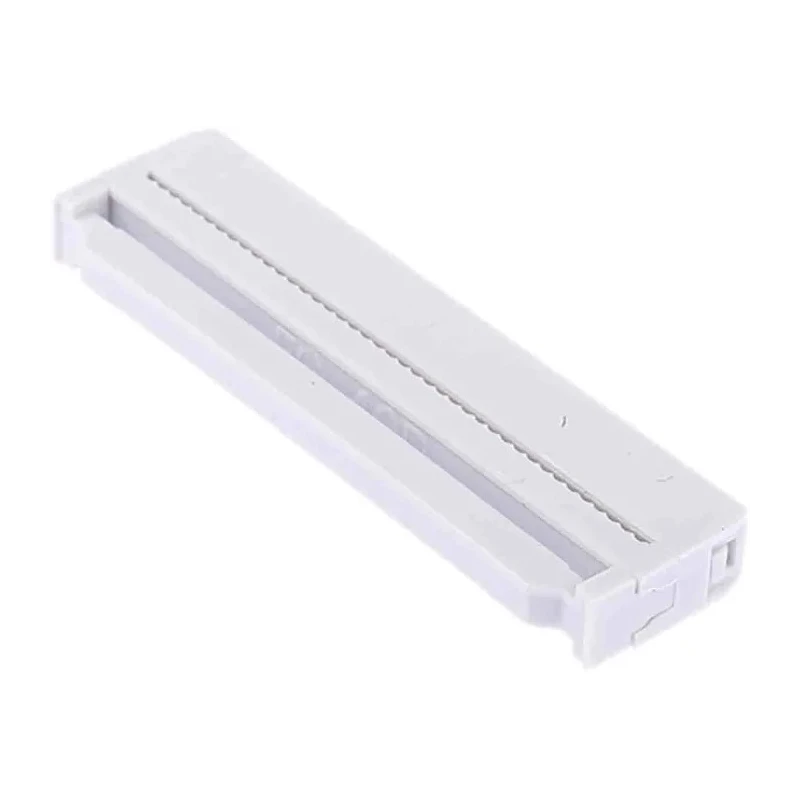

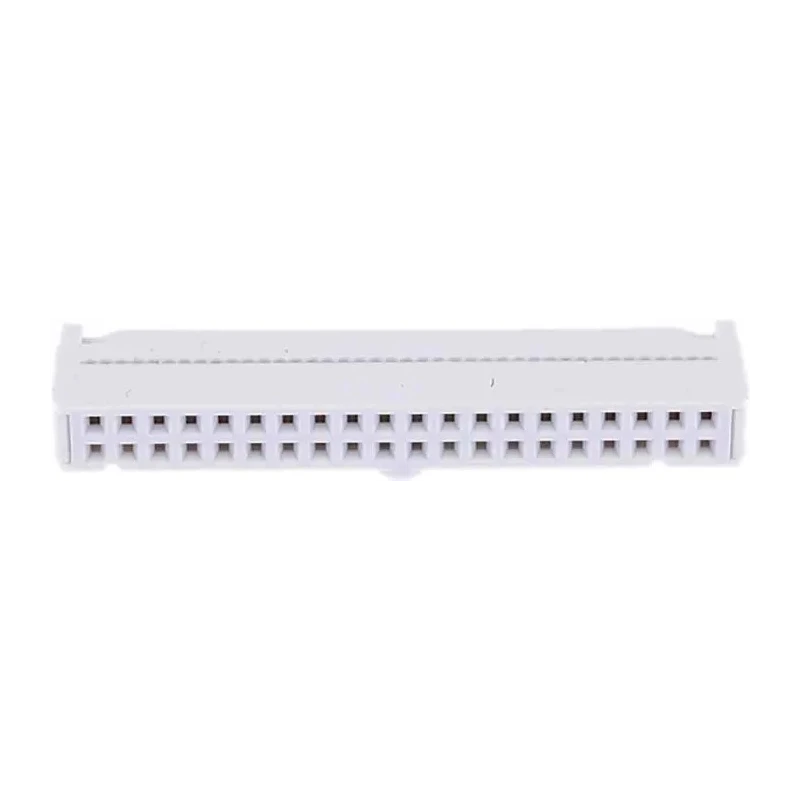

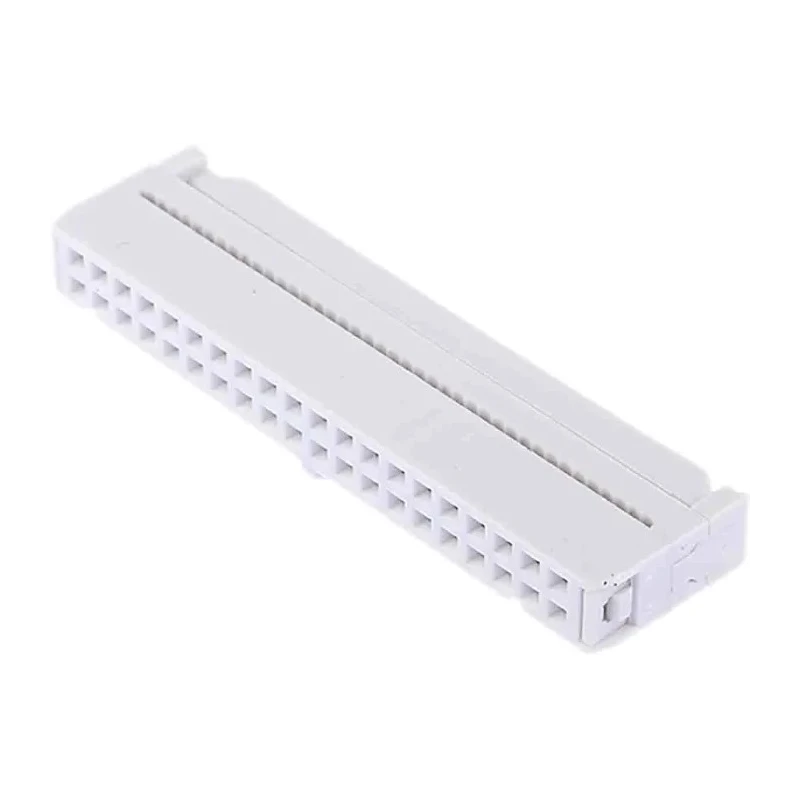

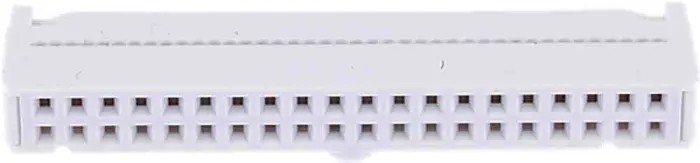

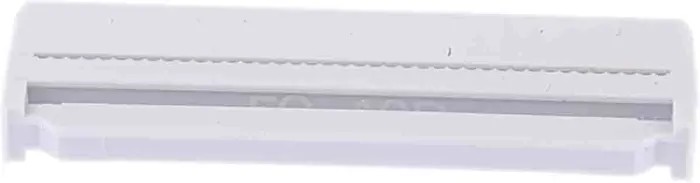

RS PRO 40-Way IDC Connector Female for Cable 2 Row 500V 1A Gold over Nickel Contacts 2.54mm Pitch 625-7303

The RS PRO 625-7303 40-Way IDC Connector Female for Cable 2 Row is a high-quality insulation displacement connector designed for efficient and reliable cable termination in low voltage power and data applications. Rated for 500V and supporting currents up to 1A, this connector features phosphor bronze contacts plated with gold over nickel, ensuring excellent electrical performance and corrosion resistance.

Encased in a robust polybutylene terephthalate housing, the shrouded design provides protection and durability suitable for demanding industrial, electronic, and manufacturing environments. The connector's 2-row, 40-contact layout with a 2.54mm pitch supports compact assemblies and maximizes space efficiency.

Its unique central bump polarisation and double depth polarising grooves guarantee correct orientation during installation, minimizing assembly errors. Additionally, the built-in strain relief protects connections from mechanical stress, enhancing long-term reliability. The operating temperature range of -55°C to 105°C makes it suitable for diverse environmental conditions.

These connectors are commonly used with flat ribbon cables for wire-to-board connections in electronics manufacturing, including computers, storage devices, laptops, phones, and other communication equipment. The IDC design slices through cable insulation, creating a secure cold-weld connection without soldering, speeding up assembly and reducing costs.

Features a shrouded design for safety and durability. Gold over nickel contact plating ensures reliable conductivity. Supports a 2.54mm pitch in a compact 2-row configuration. Constructed with phosphor bronze contacts and polybutylene terephthalate housing.

Operates reliably in temperatures from -55°C to 105°C. Designed with central bump polarisation and double depth grooves for easy mating. Built-in strain relief enhances connection stability and longevity. Ideal for use with flat ribbon cables in wire-to-board applications.

Commonly utilized in computers, phones, laptops, and various electronic devices.

This connector is an excellent choice for industrial, laboratory, manufacturing, and commercial applications requiring reliable, efficient cable termination solutions. RS PRO products are tested rigorously to ensure quality and dependability in a wide range of electronic and power connector applications.
