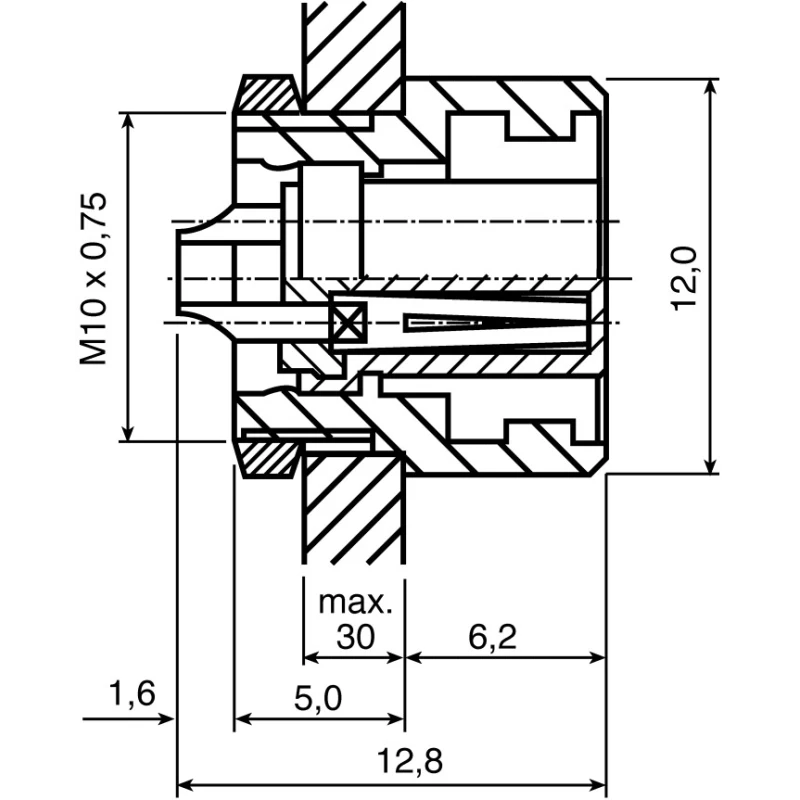

binder Circular Connector 3 Contacts Panel Mount Subminiature Socket Female IP40 710 Series 09-0978-00-03
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 125V |
| Brand | binder |
| Orientation | Straight |
| Current | 4A |
| IP Rating | IP40 |
| Mount Type | Panel Mount |
| Housing Material | Metal |
| Contact Material | Bronze |
| Series | 710 |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Contact Plating | Gold |
| Number of Contacts | 3 |
| Contact Gender | Female |
| Shell Size | 10 mm |
| Mating Type | Bayonet |
| Connector Size | Subminiature |
| Plug/Socket | Socket |
Key Features
- Designed for secure and reliable connection with bayonet mating type.
- Operates at voltage of 125V and current of 4A.
- Constructed with metal housing and gold-plated bronze contacts for durability and corrosion resistance.
- Suitable for operating temperatures ranging from -40°C to 85°C.
- Connector size is 10 mm shell size, straight orientation for panel mounting.
- Termination type is solder, ensuring firm electrical connection.
- Protection rating IP40 offers basic ingress protection against solid objects.
- Manufactured in Germany, meeting industrial quality standards.
Product Description
binder 09-0978-00-03 circular connector is a subminiature 3-contact female socket designed for panel mount applications within industrial electronic environments. Rated IP40, this connector assures protection against ingress of solid objects and delivers reliable electrical performance at 125 volts and 4 amperes current.
The connector features a bayonet mating mechanism that provides secure engagement and easy installation. Its metal housing construction combined with gold-plated bronze contacts ensures excellent corrosion resistance and longevity, suitable for harsh industrial conditions. Operating temperature range from -40°C to 85°C makes it versatile across a diverse set of environments.
Designed as part of binder's 710 series, the connector includes a 10 mm shell size with straight orientation and a solder termination type, facilitating durable and stable soldered connections for electrical circuits. The female contact gender socket is subminiature in size, optimized for compact use in industrial electronics assemblies and control panels.
This connector is especially suitable for industrial automation, manufacturing equipment, laboratory instrumentation, and electrical assembly applications where robust and reliable circular connectors are essential. It is engineered to maintain performance and integrity within demanding electrical and mechanical environments.
Secure bayonet locking mechanism for reliable mating. Metal housing with gold-plated bronze contacts resists corrosion. Supports 125V voltage and 4A current capacity for industrial use. Terminated by solder for strong electrical connections.
IP40 ingress protection rating for solid object resistance. Operating temperature from -40°C to 85°C suits varied environments. Compact subminiature size with 10 mm shell diameter. Panel mount design for easy integration into electronic equipment.
Explore this binder 09-0978-00-03 circular connector and other Industrial Circular Connectors on EnvMart to find compatible, high-quality components for industrial, laboratory, and manufacturing applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It operates at a voltage of 125V and a current of 4A.
The connector has an IP40 rating, providing basic ingress protection against solid objects.
It features a solder termination type, ensuring a firm electrical connection.
The operating temperature range is from -40°C to 85°C, making it suitable for diverse environments.
It has a shell size of 10 mm, designed for subminiature applications.
The housing is made of metal, and it features gold-plated bronze contacts for corrosion resistance.
The bayonet mating mechanism provides secure engagement and facilitates easy installation of the connector.
It is a female contact gender socket, designed for panel mount applications.
This connector is manufactured in Germany, adhering to industrial quality standards.
It is suitable for industrial automation, manufacturing equipment, laboratory instrumentation, and electrical assembly applications.
It supports panel mount installation, allowing for easy integration into electronic equipment.
This connector is part of the binder 710 series, which includes various industrial circular connectors.
