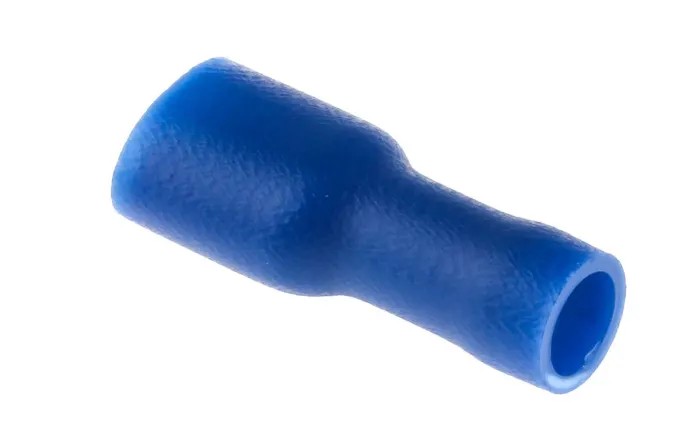

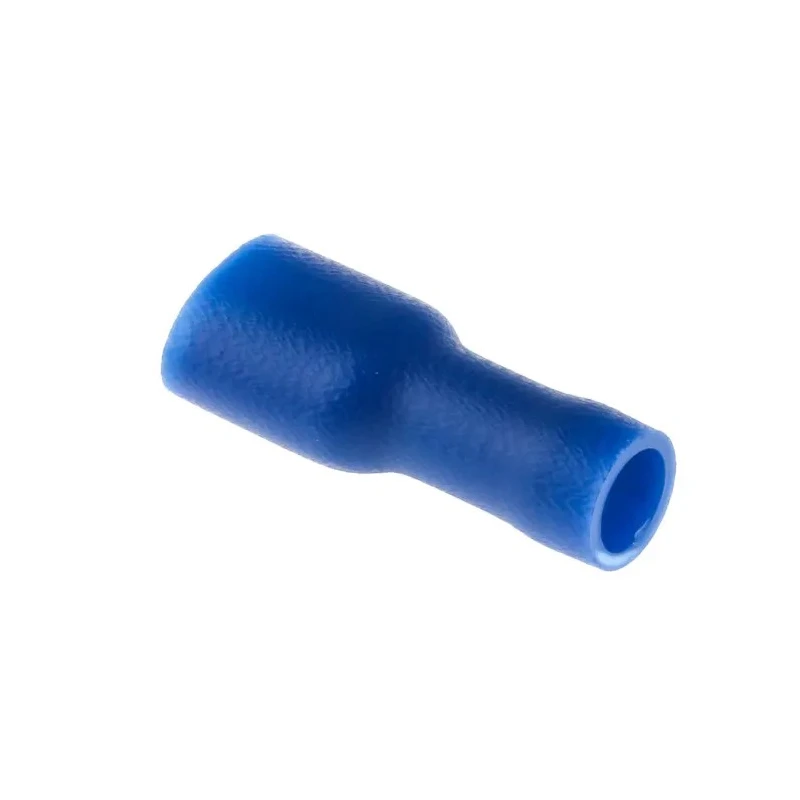

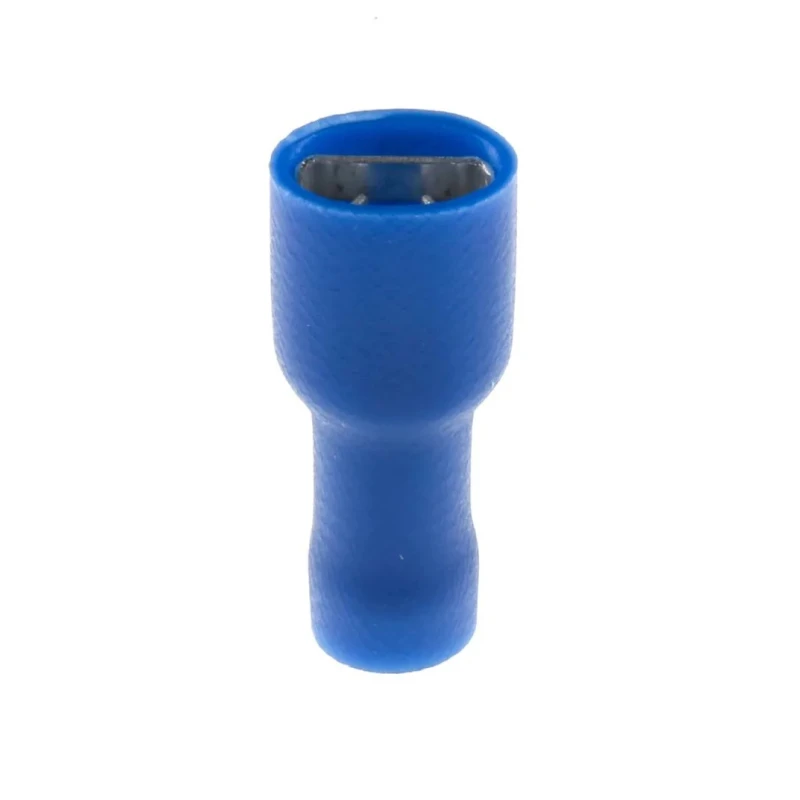

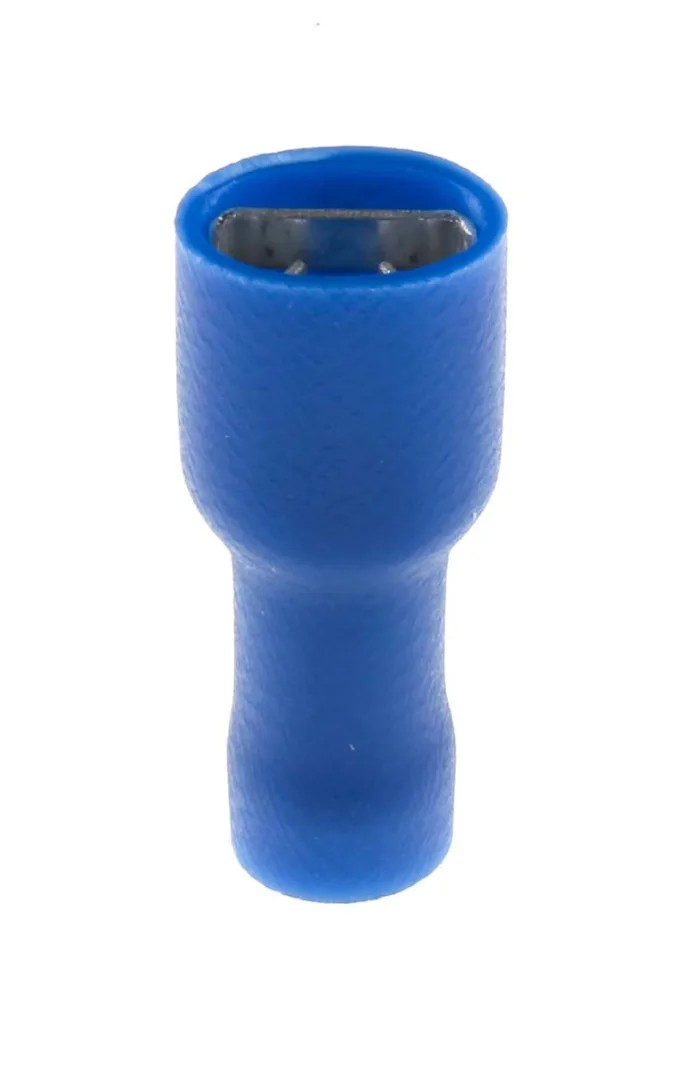

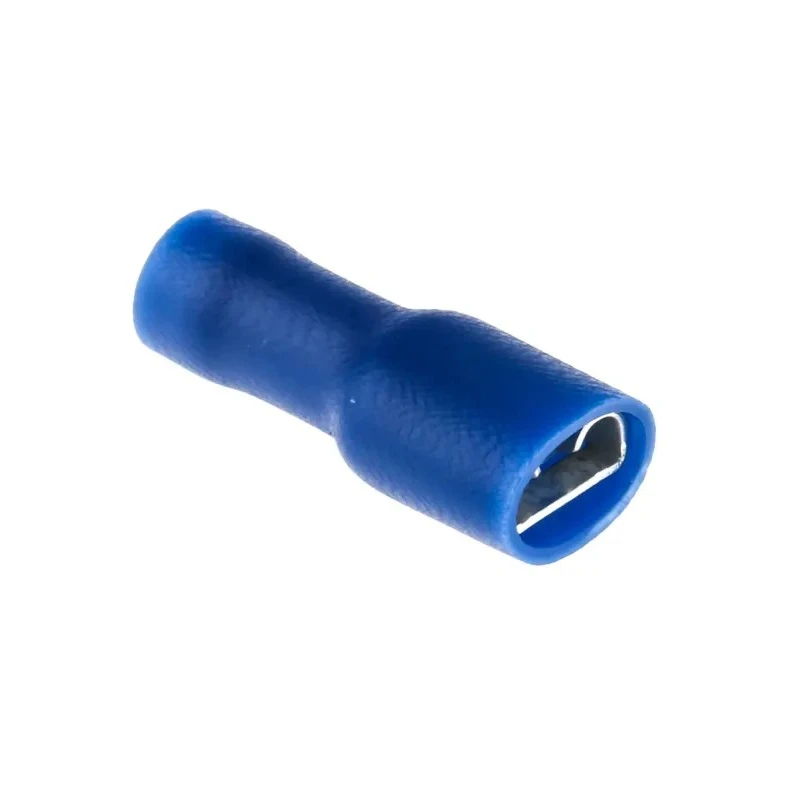

RS PRO Blue Insulated Female Spade Connector Crimp, 6.35 x 0.8 mm Tab Size, 16 AWG to 14 AWG 624-1178
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | RS PRO |
| Colour | Blue |
| Orientation | Straight |
| Model | 624-1178 |
| Gender | Female |
| Insulation | Insulated |
| Overall Length | 22.2mm |
| Contact Material | Brass, Copper |
| Series | RS PRO |
| Termination Type | Crimp |
| Insulation Material | Vinyl |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 1.5mm² |
| Maximum Wire Size mm² | 2.5mm² |
| Minimum Wire Size AWG | 16AWG |
| Maximum Wire Size AWG | 14AWG |
| Tab Width | 6.35mm |
| Tab Thickness | 0.8mm |
| Tab Size | 6.35 x 0.8 mm |
| Blue PVC shrouded receptacle,6.35x0.8mmBrand | NEUTRAL |
Key Features
- Fully insulated to provide protection against electric shock and short circuits.
- Double crimp design with an internal copper sleeve ensures strong and durable crimp joints.
- Constructed from tin-plated brass for excellent conductivity and corrosion resistance.
- Blue vinyl insulation for easy identification and stress protection.
- Straight orientation enables quick and easy connection with male tab terminals.
- Suitable for industrial, automotive, HVAC, communication equipment, and domestic appliance applications.
- Overall length of 22.2 mm fits standard sized connectors.
- Compatible with wire sizes ranging from 1.5 mm² (16 AWG) to 2.5 mm² (14 AWG).
Product Description
RS PRO 624-1178 Blue Insulated Female Spade Connector Crimp is a high-quality fully insulated electrical connector designed for easy and secure wire connections. Featuring a 6.35 x 0.8 mm tab size and supporting wire sizes from 16 AWG to 14 AWG (1.5 mm² to 2.5 mm²), this female spade connector provides excellent performance for a wide range of industrial and commercial applications.
The connector body is made from tin-plated brass with an internal copper sleeve, providing robust mechanical strength and reliable electrical conductivity. The double crimp design strengthens the joint and reduces the risk of wire damage under vibration or stress. The blue vinyl insulation covers the entire body length, ensuring protection against electric shock and environmental contaminants such as dirt and moisture.
It is intended for use with appropriate crimp tooling for reliable termination without soldering. The straight orientation allows easy mating with male tab connectors for fast installation and maintenance.
This spade connector is widely used across industrial control systems, automotive wiring harnesses, HVAC units, communication devices, power supplies, and domestic appliances including dishwashers and washing machines. It is engineered to meet the requirements of demanding electrical environments where durability and safety are critical.
Fully insulated for electrical shock protection and short circuit prevention. Double crimp barrel with internal copper sleeve enhances mechanical strength. Tin-plated brass contact offers excellent conductivity and corrosion resistance.
Blue vinyl insulation provides color coding and environmental protection. Compatible with 16 to 14 AWG wire sizes for flexible application. Straight connector design for simple and fast installation. Robust construction suited for industrial and automotive applications.
Overall length of 22.2 mm ensures compatibility with standard female tab terminals.
Set the standard for secure electrical connections with the RS PRO 624-1178 Blue Insulated Female Spade Connector Crimp. Discover more connectors and electronic components available at EnvMart for your technical and industrial requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The tab size of this spade connector is 6.35 x 0.8 mm.
It is compatible with wire sizes ranging from 16 AWG (1.5 mm²) to 14 AWG (2.5 mm²).
The connector body is made from tin-plated brass, with an internal copper sleeve for enhanced conductivity and strength.
The overall length of this spade connector is 22.2 mm.
It features blue vinyl insulation, which provides protection against electric shock and environmental contaminants.
This connector uses a crimp termination type for secure wire connections without soldering.
The connector has a straight orientation, allowing for easy mating with male tab connectors.
It is suitable for industrial, automotive, HVAC, communication equipment, and domestic appliance applications.
This connector is a female type.
The contact plating is tin, which enhances conductivity and corrosion resistance.
The country of origin for this spade connector is Taiwan.
The double crimp design enhances the mechanical strength of the joint and reduces the risk of wire damage under vibration or stress.
