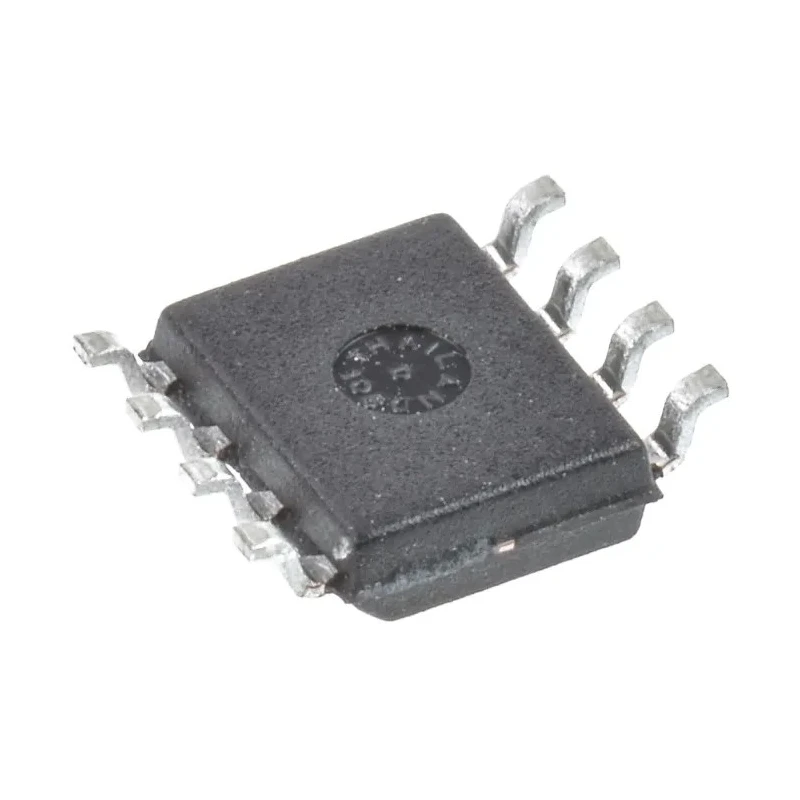

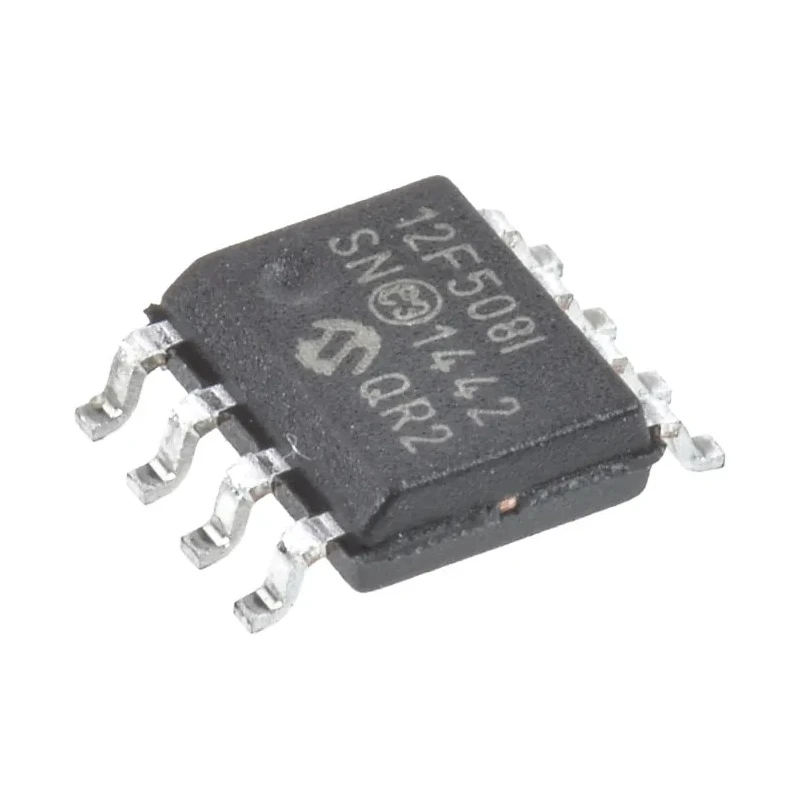

Microchip PIC12F508-I/SN 8-Bit PIC12 Microcontroller 4 MHz 0.75kB FLASH 8-Pin SOIC
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 1.5mm |
| Length | 4.9mm |
| Model | PIC12F508-I/SN |
| Width | 3.9mm |
| Mount Type | Surface |
| Series | PIC12 |
| Maximum Operating Temperature | 85°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -40°C |
| Ram size | 25bit |
| Interface Type | SPI |
| Pin Count | 8 |
| Automotive Standard | ISO/TS 16949 |
| Maximum Supply Voltage | 5.5V |
| Maximum Power Dissipation Pd | 800mW |
| Minimum Supply Voltage | 2V |
| Device Core | PIC |
| Program Memory Size | 0.75kB |
| Maximum Clock Frequency | 4MHz |
| Number of Programmable I/Os | 22 |
| Number of Timers | 1 |
| Instruction Set Architecture | RISC |
| Program Memory Type | FLASH |
Key Features
- Operates with an internal 4 MHz RC oscillator providing stable clock performance.
- Equipped with 0.75kB program memory using FLASH technology for reliable code storage.
- Compact 8-pin SOIC surface mount package with 6 I/O pins for versatile interfacing.
- Supports SPI interface and features one 8-bit timer for timing applications.
- Operating temperature range from -40°C to 85°C ensures suitability for industrial conditions.
- Maximum power dissipation of 800mW enabling efficient thermal performance.
- Low supply voltage operation from 2V to 5.5V facilitating flexible power management.
- Includes watchdog timer (WDT) and in-circuit serial programming (ICSP) for enhanced control and programming.
Product Description
Microchip PIC12F508-I/SN is a reliable 8-bit PIC12 microcontroller designed for embedded system applications requiring compact size and low power consumption. Operating at a maximum clock frequency of 4 MHz with an internal RC oscillator, it offers stable performance with ±1% accuracy.
This device has 0.75kB of FLASH program memory and 25-bit RAM, allowing efficient program execution and data storage. It comes in an 8-pin SOIC surface mount package with 6 programmable I/O pins, suitable for compact PCB layouts.
The microcontroller supports SPI interface for communication and includes a single 8-bit timer facilitating timeout and pulse generation tasks. It is rated for operation from -40°C to 85°C, meeting requirements for industrial and automotive environments adhering to ISO/TS 16949 standards.
The maximum supply voltage is 5.5V with a minimum of 2V, and the device dissipates up to 800mW power, making it suitable for low-power embedded designs. Included features such as watchdog timer (WDT), in-circuit serial programming (ICSP), and in-circuit debugging (ICD) enhance reliability and ease of development.
Operates with 4 MHz internal RC oscillator providing clock stability. 0.75kB FLASH memory enables flexible embedded programming. Compact 8-pin SOIC package ideal for space-constrained applications. 6 programmable I/O pins for versatile interfacing options.
SPI interface and one 8-bit timer included for communication and timing functionality. Wide operating temperature range from -40°C to 85°C for harsh environment compatibility. Power dissipation rated at 800mW for energy efficient operation.
Supports watchdog timer and in-circuit programming/debugging capabilities.
This microcontroller is widely used in industrial control, automotive electronics, consumer devices, and embedded systems requiring a compact, low-power microcontroller. Its robust feature set and surface mount design facilitate efficient manufacturing and integration.
Explore the wide range of Microcontrollers and semiconductor components available on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum clock frequency of this microcontroller is 4 MHz, which is achieved using an internal RC oscillator.
It features 0.75kB of FLASH program memory, allowing for reliable code storage and execution.
The operating temperature range is from -40°C to 85°C, making it suitable for industrial and automotive applications.
This microcontroller has 6 programmable I/O pins, providing versatile interfacing options for various applications.
It supports an SPI interface, which allows for communication with other devices and components.
The maximum power dissipation is rated at 800mW, enabling efficient thermal performance during operation.
This model comes in an 8-pin SOIC surface mount package, which is ideal for compact PCB layouts.
The minimum supply voltage is 2V, while the maximum supply voltage is 5.5V, allowing for flexible power management.
It adheres to the ISO/TS 16949 automotive standard, ensuring compliance for automotive applications.
This microcontroller includes one 8-bit timer, which is useful for timing applications and pulse generation tasks.
The RAM size of this model is 25 bits, allowing for efficient data storage during program execution.
It utilizes a RISC instruction set architecture, which is designed for efficient processing and performance.
