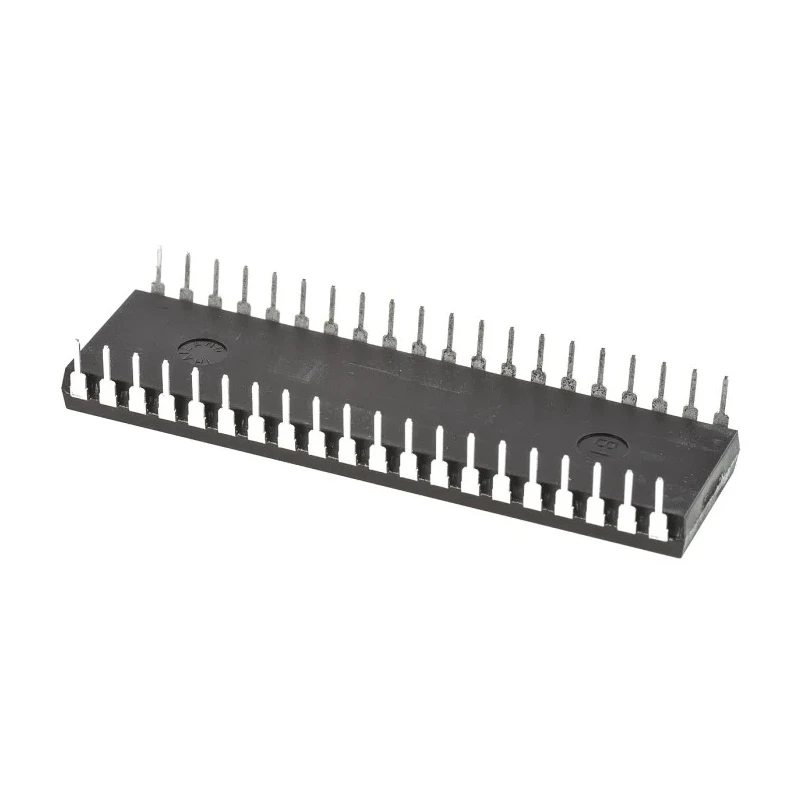

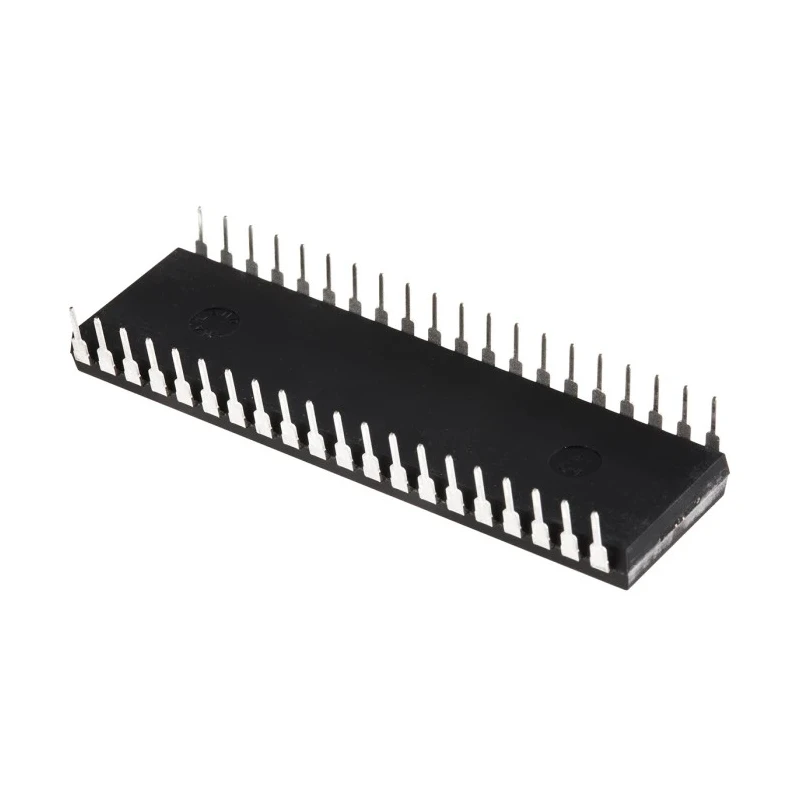

Microchip PIC18F4525-I/P 8 Bit PIC18F Microcontroller 40 MHz 1.024kB Program Memory 48kB FLASH 40-Pin PDIP
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 4.95mm |
| Length | 53.21mm |
| Model | PIC18F4525-I/P |
| Width | 14.73mm |
| Mount Type | Through Hole |
| Series | PIC18F |
| Maximum Operating Temperature | 85°C |
| Package Type | PDIP |
| Minimum Operating Temperature | -40°C |
| Ram size | 3.99kB |
| Interface Type | RS232 |
| Pin Count | 40 |
| Maximum Supply Voltage | 5.5V |
| Maximum Power Dissipation Pd | 800mW |
| Minimum Supply Voltage | 2V |
| Device Core | PIC |
| Program Memory Size | 1.024, 48kB |
| Maximum Clock Frequency | 40MHz |
| Number of Programmable I/Os | 22 |
| Analogue Comparators | 2 |
| Maximum Expanded Memory Size | 1.02kB |
| Number of Timers | 4 |
| Instruction Set Architecture | RISC |
| ADCs | 13 x 10 Bit |
| Program Memory Type | FLASH |
Key Features
- Operates at a maximum clock frequency of 40 MHz for fast processing.
- Program memory size of 1.024kB and 48 kB FLASH storage.
- 40-pin PDIP package with 22 programmable input/output pins.
- 8-bit data bus width supporting efficient data handling.
- Includes 13 channels of 10-bit analog-to-digital converters (ADC).
- Operates with a minimum supply voltage of 2V and maximum up to 5.5V.
- Supports RS232 interface communication.
- Incorporates nanoWatt technology for low power consumption.
Product Description
Microchip PIC18F4525-I/P microcontroller is an advanced 8-bit PIC18F device designed for high performance embedded applications. It operates at a maximum CPU speed of 40 MHz and integrates 1.024kB program memory alongside 48 kB FLASH memory, packaged in a 40-pin PDIP form factor.
This microcontroller is built on the PIC18 architecture featuring a rich instruction set with 75 instructions and a 31-level hardware stack. The device supports 22 programmable input/output pins suitable for a wide range of peripheral interfacing and includes 13-channel 10-bit ADC capability for analog signal processing.
Power efficiency is enhanced through nanoWatt technology, making it suitable for battery-operated or low-power requirements. It operates between a voltage range of 2V to 5.5V, with a power dissipation limit of 800 mW, and can comfortably operate across a broad temperature range from -40°C to 85°C for rugged industrial environments.
Additional features include multiple timers (4), analog comparators (2), RS232 interface, and support for in-circuit debugging and programming. This MCU is ideal for applications requiring reliable analog-to-digital conversion, PWM generation, and serial communication.
Operates at a maximum clock frequency of 40 MHz for fast processing. Program memory size of 1.024kB and 48 kB FLASH storage. 40-pin PDIP package with 22 programmable input/output pins. 8-bit data bus width supporting efficient data handling.
Includes 13 channels of 10-bit analog-to-digital converters (ADC). Operates with a minimum supply voltage of 2V and maximum up to 5.5V. Supports RS232 interface communication. Incorporates nanoWatt technology for low power consumption.
Features multiple timers and comparators for versatile control. Operating temperature from -40°C to 85°C suitable for industrial environments.
This Microchip PIC18F4525-I/P microcontroller is widely used in electronic, industrial, and embedded systems where efficient processing and low power consumption are essential. Explore this product in the Microcontroller category at EnvMart for your design and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum clock frequency of this microcontroller is 40 MHz, allowing for fast processing capabilities.
It has a program memory size of 1.024 kB and 48 kB of FLASH storage.
The PIC18F4525-I/P features 22 programmable input/output pins for versatile interfacing.
This microcontroller operates with a minimum supply voltage of 2V and a maximum of 5.5V.
It is packaged in a 40-pin PDIP (Plastic Dual In-line Package) format.
The operating temperature range is from -40°C to 85°C, making it suitable for industrial environments.
It includes 13 channels of 10-bit analog-to-digital converters (ADC) for analog signal processing.
This model supports RS232 interface communication for serial data transmission.
The maximum power dissipation limit is 800 mW, ensuring efficient power management.
It includes 4 timers for versatile control and timing applications.
The RAM size of this microcontroller is 3.99 kB, facilitating data storage during operation.
It utilizes a RISC (Reduced Instruction Set Computer) architecture, which enhances processing efficiency.
