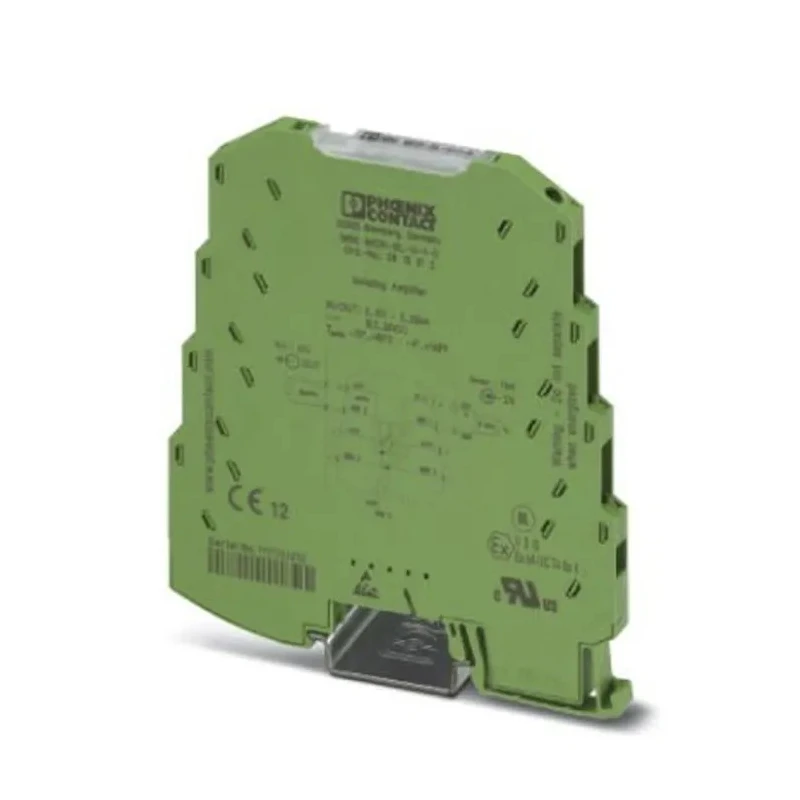

Phoenix Contact MINI MCR Series Signal Conditioner Voltage Input Current Output 24V dc Supply Model 2813512

Phoenix Contact 2813512 MINI MCR Series Signal Conditioner is a highly reliable isolating amplifier designed to convert and isolate electrical signals with precision, suitable for industrial, automation, and electrical control applications.

This device accepts a voltage input signal ranging from 0 to 10 V dc and outputs a current signal of 0 to 20 mA, powered by a 24V dc supply. It provides 3-way galvanic isolation to prevent ground loops and reduce electrical noise, ensuring stable and accurate signal processing.

The compact DIN rail mount design with a slim 6.2 mm width facilitates easy integration into control panels and electrical cabinets. Screw-type terminals offer robust and secure wiring connections, supporting durable installation in demanding environments.

Engineered for hazardous area compliance, it holds multiple certifications such as Groups A, Div 2, GL, Ex II 3 G, ATEX, UL, and cUL, making it suitable for use in potentially explosive atmospheres. The device operates reliably within a temperature range from -20°C to 65°C and has an IP20 ingress protection rating.

Compliant with international standards including EN 61010, CE marking, EN 60715, and EMC Directive 2004/108/EC, this signal conditioner ensures safety, performance, and electromagnetic compatibility in industrial settings.

Supports input voltage range of 0 to 10 V dc. Outputs current in the range of 0 to 20 mA for precise signal transmission. Equipped with DIN rail mount for easy installation. Designed for hazardous area use with certifications including Groups A, Div 2, GL, Ex II 3 G, ATEX, UL, and cUL.

Operates reliably in temperature range from -20°C to 65°C. Features 3-way galvanic isolation for signal integrity and interference reduction. Compact design with 6.2 mm overall width saves panel space. Screw-type terminals ensure secure connections.

Conforms to standards EN 61010, CE, EN 60715, and EMC Directive 2004/108/EC.

This Phoenix Contact Signal Conditioner is ideal for use in electrical automation, industrial manufacturing, laboratory controls, and other applications requiring accurate signal isolation and conditioning. Its hazardous area certifications enable usage in explosive gas or dust environments, enhancing safety and compliance.
