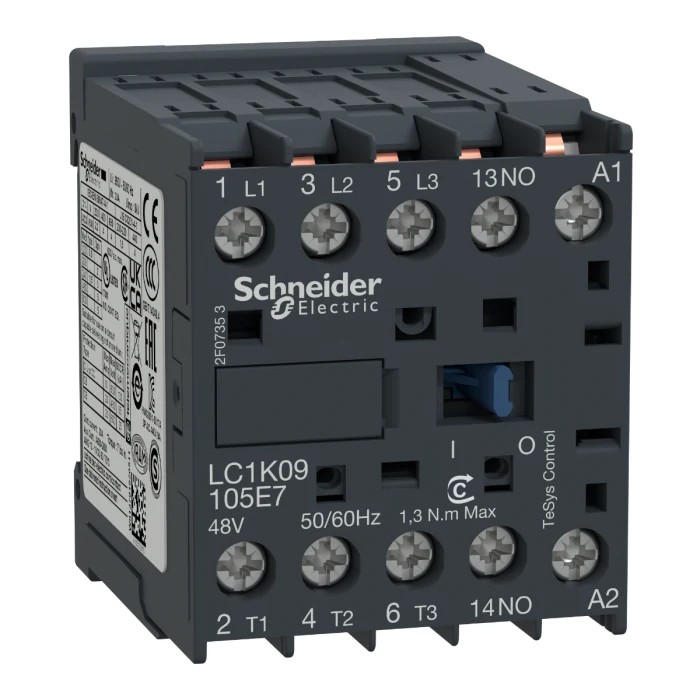

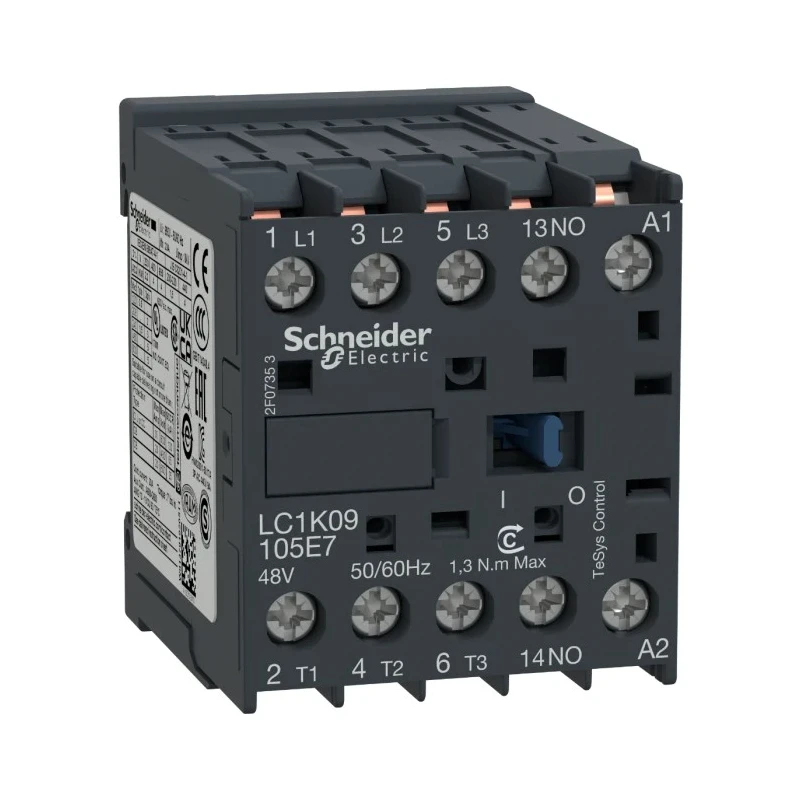

Schneider Electric LC1K Contactor, 48V AC Coil, 3-Pole, 9A, 4 kW, 3 NO, 690V AC LC1K09105E7
Specifications
| Country of Origin | India |
|---|---|
| Brand | Schneider Electric |
| Function | Motor Control, Resistive Load |
| Length | 58mm |
| Model | LC1K09105E7 |
| Depth | 57mm |
| Width | 45mm |
| Mount Type | DIN Rail |
| Series | LC1K |
| Power Rating | 4kW |
| Maximum Operating Temperature | 50°C |
| Minimum Operating Temperature | -25°C |
| Terminal type | Screw |
| Number of Poles | 3 |
| Standards/Approvals | CCC, CSA, EAC, IEC, RoHS, UL |
| Contact Voltage | 690V ac |
| Coil Voltage | 48V ac |
| Normal State Configuration | 3 NO |
| Better World Claim | Designed for Disassembly |
| Contact Current | 9A |
| Number of Auxiliary Contacts | 1 |
| Auxiliary Contact Configuration | 1 NO |
| Operational Current Ie | 9A |
| Control Circuit Voltage Uc | 48V ac |
| Contactor Application | Resistive Load, Motor Control |
| Pole and Throw Configuration | 3 |
| AC-1 | This applies to all AC devices with a power factor of at least 0.95. Example of use: resistive load, heating, distribution |
| AC-3 | This applies to squirrel cage motors where breaking occurs while the motor is running. Example of use: all squirrel cage motors, lifts, escalators, conveyors, bucket elevators, compressors, pumps, mixers, air conditioning units |
Key Features
- Suitable for motor control and resistive load applications.
- Compact design with 45mm width for DIN rail mounting.
- Includes 1 NO auxiliary contact for additional control functionality.
- Operates reliably in temperatures from -25°C to 50°C.
- Complies with multiple standards including IEC, UL, CSA, CCC, and RoHS.
- Rated operational current of 9A for AC-3 category applications.
- Equipped with screw terminal type and designed for easy installation.
- Provides durability and reliability for industrial automation use cases.
Product Description
Schneider Electric LC1K09105E7 is a high-performance contactor designed for industrial automation and motor control applications. Featuring a 48V AC coil and a 3-pole, 3 NO (normally open) contact configuration, this contactor is rated at 9 amperes and supports a power rating of 4 kW at 690V AC. The compact form factor with a width of only 45mm allows for easy installation in standard DIN rail systems or via screw fixing.
This device is suited for both motor control and resistive load applications, classified under AC-3 and AC-1 utilization categories respectively. It includes one built-in normally open auxiliary contact, enhancing its switching capabilities. Designed to operate efficiently between -25°C and 50°C, the contactor ensures reliable performance in various industrial environments.
The LC1K09105E7 meets stringent international standards such as IEC, UL, CSA, CCC, EAC, and RoHS, certifying its quality and compliance. Its screw terminal design facilitates secure wiring connections, while its build quality ensures durability and long operational life.
This contactor is especially suitable for use in manufacturing, industrial automation, HVAC control systems, conveyor systems, and other commercial electrical control applications requiring precise and reliable motor switching.
Suitable for motor control and resistive load applications. Compact 45mm width design for space-efficient installation. 48V AC coil voltage with 3-pole configuration. 9A contact current and 4 kW power rating at 690V AC. Built-in 1 NO auxiliary contact for extended control functions.
Temperature operating range from -25°C to 50°C. Compliance with IEC, UL, CSA, CCC, EAC, and RoHS standards. Screw terminal type for secure wiring connections.
Discover the full range of Schneider Electric automation and control solutions in the Electronics & Electricals category at EnvMart to meet your industrial and commercial automation needs.
