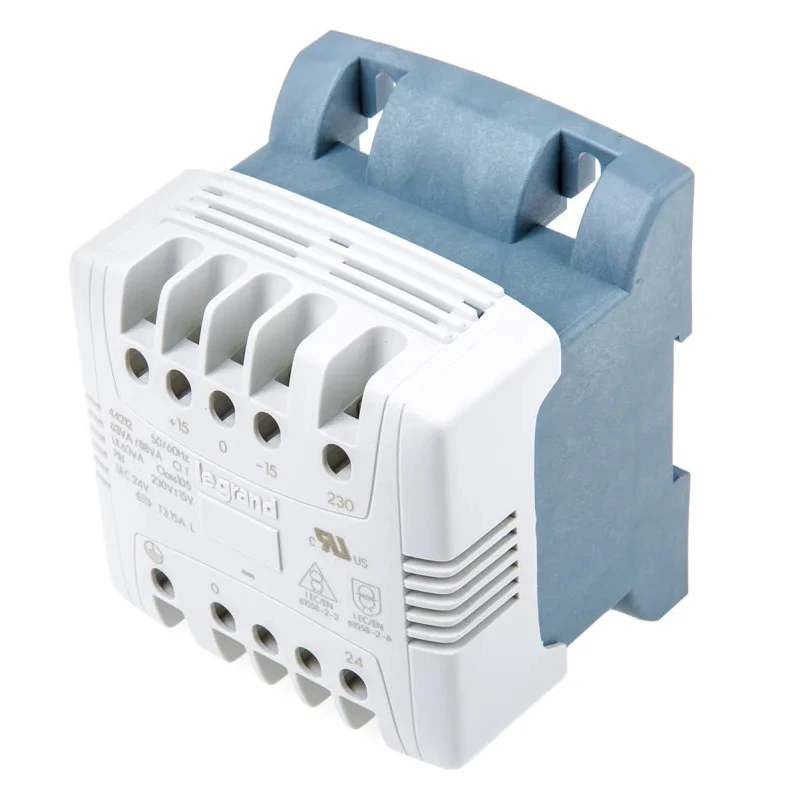

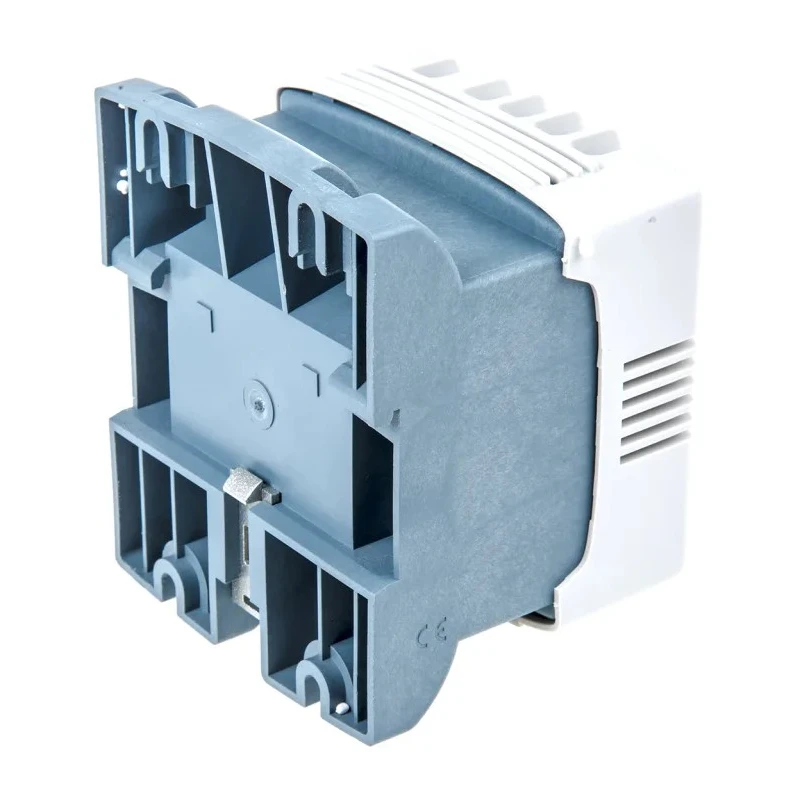

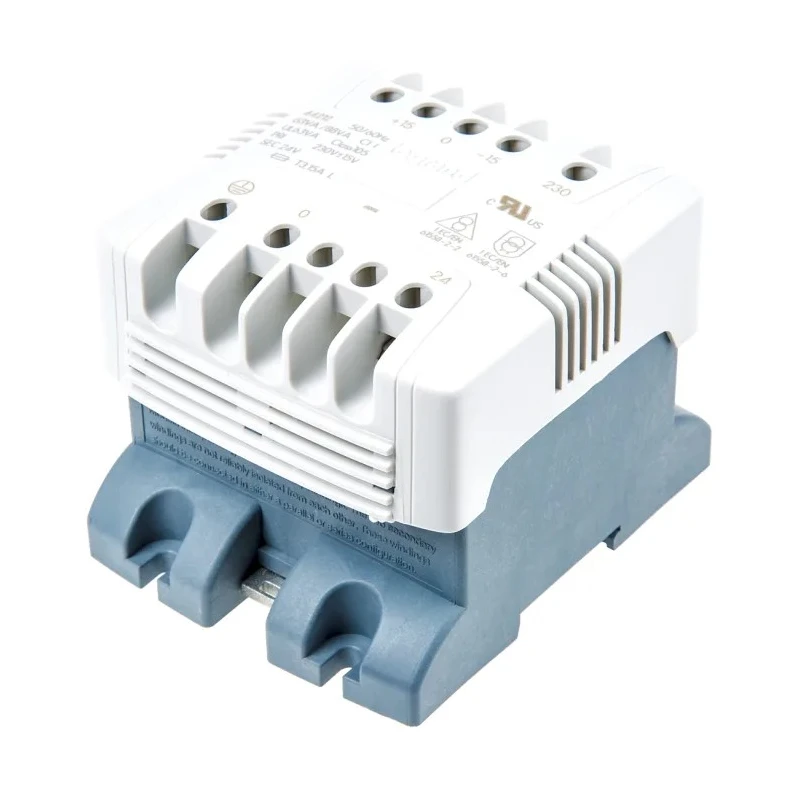

Legrand 63 VA DIN Rail Transformer, 215 V ac, 230 V ac, 245 V ac Primary, 24 V ac Secondary, Direct Clip Mounting 0 442 12

Free Delivery in India | Lowest Global Shipping Charges

Legrand 63 VA DIN Rail Transformer, 215 V ac, 230 V ac, 245 V ac Primary, 24 V ac Secondary, Direct Clip Mounting 0 442 12

Name: Legrand 63 VA DIN Rail Transformer, 215 V ac, 230 V ac, 245 V ac Primary, 24 V ac Secondary, Direct Clip Mounting 0 442 12
Brand: Legrand
SKU: 199711
Price: 219.41 USD
Availability: InStock



Category DIN Rail Transformer Brand Legrand Condition New

Specifications

Country of Origin	France
Brand	Legrand
Length	94mm
Model	0 442 12
Depth	113mm
Gross Weight	1.6kg
Width	85mm
Mount Type	Direct, Clip
Maximum Operating Temperature	50°C
Number of outputs	1
Primary Voltage	215 V ac, 230 V ac, 245 V ac
Secondary Voltage	24 V ac
Minimum Operating Frequency	50Hz
Maximum Operating Frequency	60Hz
Voltage adjustment	±15 V

Key Features

Compact single-phase control and signalling transformer suitable for industrial applications.
Direct clip mount type for easy installation on symmetrical DIN rails.
Compliant with standards EN 60204-1, EN 60439-1, EN 61131-2, IEC EN 61558-2-4, and IEC EN 61558-2-6.
Robust design with active parts protected by a cover supporting up to 1000 VA.
Operating frequency range of 50 to 60 Hz.
Maximum operating temperature rating of 50°C ensures reliability in demanding environments.
Supplied with connection strip and 0 V secondary earth terminal for safe connections.

Product Description

Legrand 0 442 12 DIN Rail Transformer 63 VA offers a reliable solution for control and signalling in industrial settings. Designed for single-phase operation at 50 to 60 Hz with primary voltages of 215 V ac, 230 V ac, and 245 V ac, and secondary voltage of 24 V ac, it supports a wide range of control equipment.

This transformer features direct clip mounting on symmetrical DIN rails up to 250 VA, facilitating quick and secure installation in panel assemblies. Its compact footprint with dimensions of 94mm length, 85mm width, and 113mm depth saves valuable space.

Constructed with active parts sheltered under a protective cover, the transformer ensures safe operation up to 1000 VA and complies with rigorous standards including EN 60204-1, EN 60439-1, EN 61131-2, IEC EN 61558-2-4, and IEC EN 61558-2-6, affirming its industrial-grade quality and safety.

The built-in voltage adjustment of ±15 V provides operational flexibility, while the included connection strip and 0 V earth terminal enhance wiring safety and convenience.

With a weight of 1.6 kg and a maximum operating temperature of 50°C, this transformer suits applications in manufacturing, electrical distribution, automation panels, industrial machinery, and control systems.

Compact single-phase control and signalling transformer suitable for industrial applications. Direct clip mount type for easy installation on symmetrical DIN rails. Compliant with standards EN 60204-1, EN 60439-1, EN 61131-2, IEC EN 61558-2-4, and IEC EN 61558-2-6.

Voltage adjustment capability of ±15 V for flexible operation. Robust design with active parts protected by a cover supporting up to 1000 VA. Operating frequency range of 50 to 60 Hz. Maximum operating temperature rating of 50°C ensures reliability in demanding environments.

Supplied with connection strip and 0 V secondary earth terminal for safe connections. Explore EnvMart’s extensive category of DIN Rail Transformers and electrical components for advanced industrial and commercial power solutions.
